General Features
M30
Quad Band GSM/GPRS Module

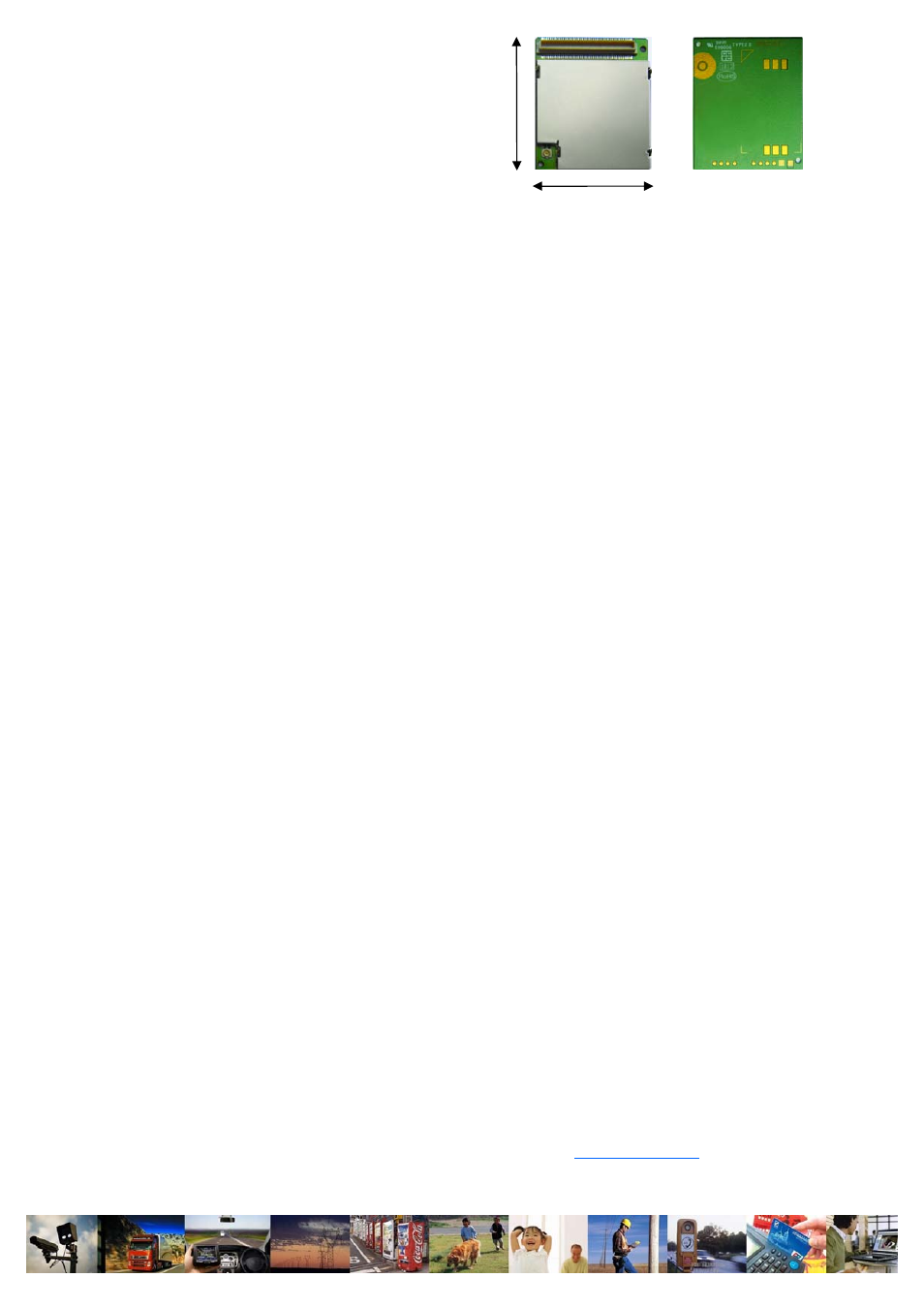

40mm
32.2 mm
Interfaces
Contact Us
Address Room 501, Building 9, No. 99
Tianzhou Road, Shanghai, China
Email [email protected]
Tel +86 21 51082965
GPRS Class 12 max. 85.6 kbps (uplink
& downlink)
PBCCH Support
Coding Schemes CS 1, 2, 3, 4
CSD up to 14.4 kbps
USSD
Non Transparent Mode
Protocols PPP
TCP/UDP
HTTP
FTP
MMS
SMTP
Specifications for Fax
Group 3, Class 1 & Class 2
Specifications for Data
Specifications for SMS via GSM /
GPRS
Point-to-point MO and MT
SMS Cell Broadcast
Text and PDU Mode
Specifications for Voice
Speech Codec Modes Half Rate (HR)
Full Rate (FR)
Enhanced Full Rate (EFR)
AMR Half Rate
AMR Full Rate
Echo Arithmetic Echo Cancellation
Echo Suppression
Noise Reduction
Hands-free Operation
100-pin B2B Connector
Power Supply
External SIM 3V/1.8V
Embedded SIM IC (Optional)
Embedded SIM Holder (Optional)
RTC Backup
Analog Audio Interfaces Two channels
PCM Interface
SPI (Optional)
I²C (Optional)
Serial Ports Two
Antenna Connector and
Solder Pad
Charger Interface (Optional)
Quad-Band 850/900/1800/1900MHz
GPRS Multi-slot Class Class 12/10/8
GPRS Mobile Station Class B
Compliant to GSM
Phase 2/2+
Class 4
(2W@850/900 MHz)
Class 1
(1W@1800/1900MHz)
Supply Voltage Range 3.4~4.5 V 4.0V nominal
Low Power
Consumption
1.1mA @ DRX=5
0.7mA @ DRX=9
Operation Temperature -45 °C to +85 °C
Dimensions
40mm × 32.2mm × 4mm
(excluding shielding pins)
Weight Approx 7g
Control via AT commands (GSM 07.07, 07.05
and other enhanced AT Commands)
SIM Application Toolkit
Mux Driver
