MAX2108
Direct-Conversion Tuner IC
8
_______________________________________________________________________________________
RS
C1
C2
C3
C4
RL
ADCS
DSP
MATCHED
FILTERS
RS
L1
L1
BASEBAND LP FILTER
BASEBAND LP FILTER
L2
L2
L3
L3
0.1
µ
F
0.1
µ
F
RS
C1
C2
C3
C4
RL
RS
L1
L1
L2
L2
L3
L3
0.1
µ
F
0.1
µ
F
IOUT
IOUT
MAX2108
QOUT
QOUT
FOR POINTS 1, 2, 3, 4, REFER TO THE SIGNAL SPECTRUMS SHOWN IN FIGURE 2
4
3
2
1

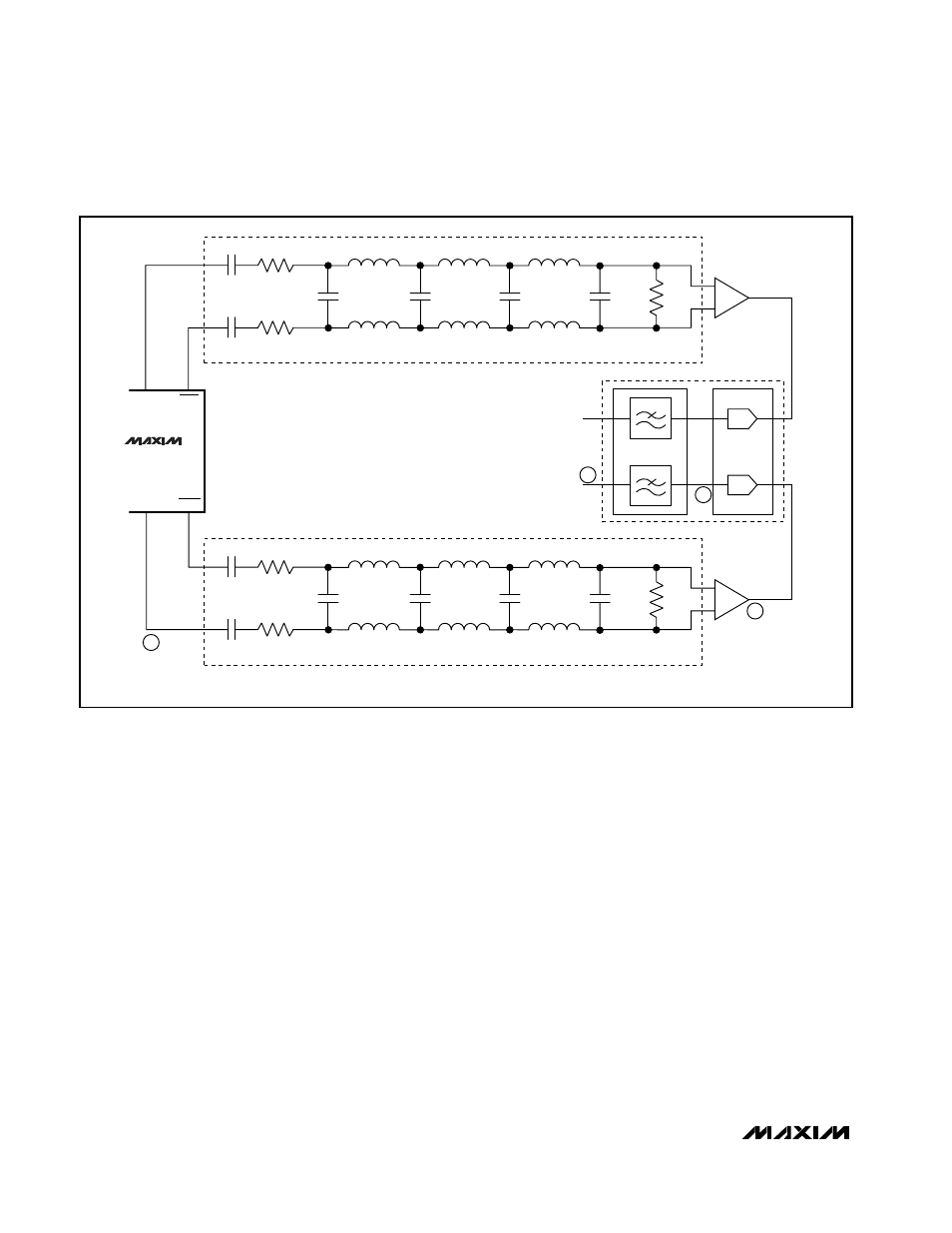

Figure 1. In-Phase and Quadrature-Phase Signal Paths
