MAX1208
Output Noise (n OUT )
The output noise (n OUT ) parameter is similar to the ther-
mal + quantization noise parameter and is an indication
of the ADC’s overall noise performance.
No fundamental input tone is used to test for n OUT ; INP,
INN, and COM are connected together and 1024k data
points collected. n
OUT
is computed by taking the RMS
value of the collected data points.
Overdrive Recovery Time
Overdrive recovery time is the time required for the
ADC to recover from an input transient that exceeds the
full-scale limits. The MAX1208 specifies overdrive
recovery time using an input transient that exceeds the
full-scale limits by ±10%.
12-Bit, 80Msps, 3.3V ADC
26 ______________________________________________________________________________________
REFP 1
REFN 2
COM 3
GND 4
INP 5
INN 6
GND 7
DCE 8
CLKN 9
CLKP 10
D0 30
D1 29
D2 28
D3 27
D4 26
D5 25
D6 24
D7 23
D8 22
D9 21
40
REFIN
39
REFOUT
38
PD
37
V
DD
36
GND
35
OV
DD
34
DAV
33
I.C.
32
I.C.
31
CLKTYP
11
V
DD
12
V
DD
13
V
DD
14
V
DD
15
GND
16
OV
DD
17
DOR
18
D11
19
D10
20
G/T

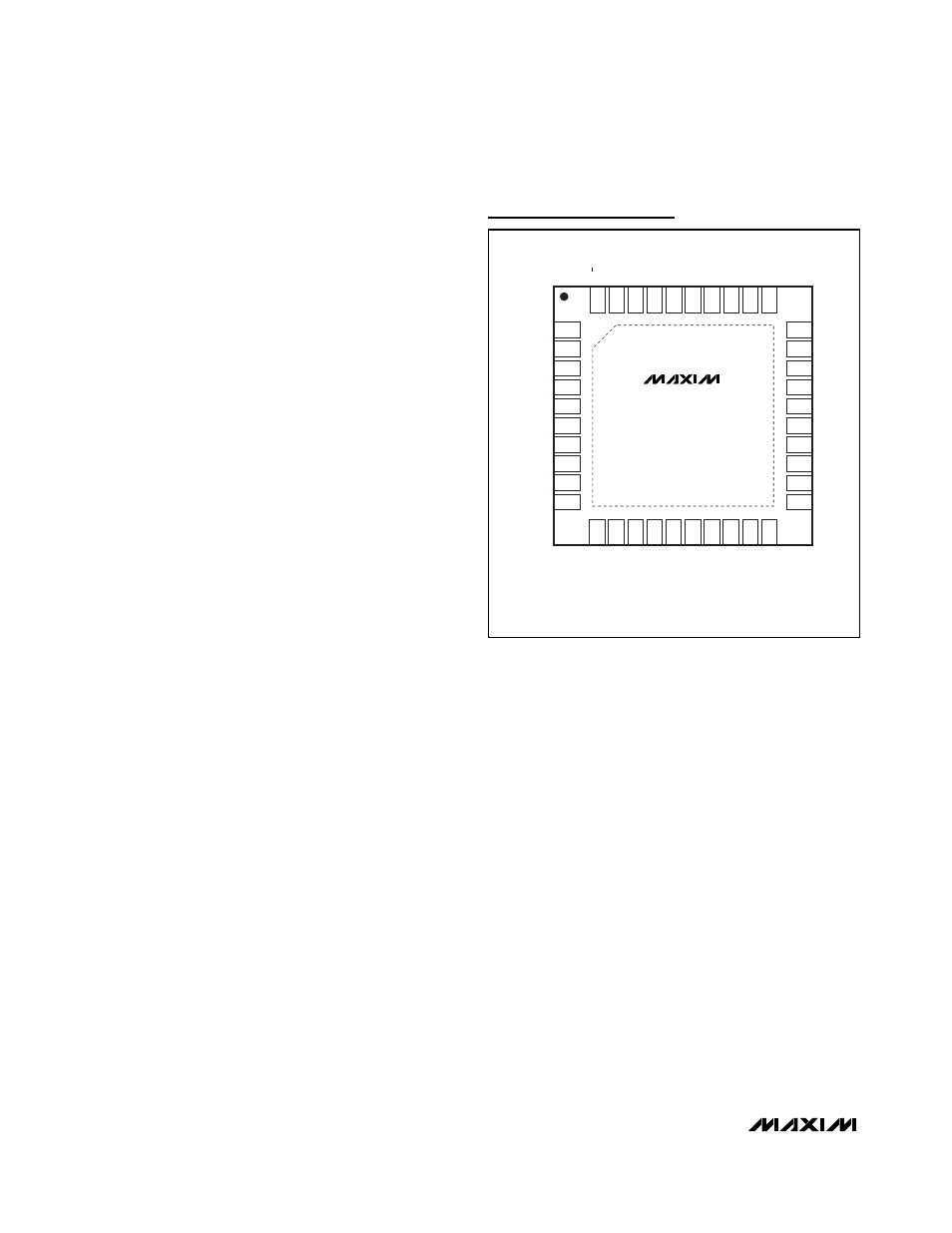

TOP VIEW
MAX1208
EXPOSED PADDLE (GND)
THIN QFN
6mm x 6mm x 0.8mm
Pin Configuration
