MAX1034/MAX1035
Mode Control
The MAX1034/MAX1035 contain one byte-wide mode-
control register. The timing diagram of Figure 15 shows
how to use the mode-control byte, and the mode-con-
trol byte format is shown in Table 7. The mode-control
byte is used to select the conversion method and to
control the power modes of the MAX1034/MAX1035.
Selecting the Conversion Method
The conversion method is selected using the mode-
control byte (see the Mode Control section), and the con-
version is initiated using a conversion-start command
(Table 3, and Figures 2, 3, and 4). The MAX1034/
MAX1035 convert analog signals to digital data using one
of three methods:
• External Clock Mode, Mode 0 (Figure 2)
• Highest maximum throughput (see the Electrical
Characteristics table)
• User controls the sample instant
• CS remains low during the conversion
• User supplies SCLK throughout the ADC con-
version and reads data at DOUT
• External Acquisition Mode, Mode 1 (Figure 3)
• Lowest maximum throughput (see the Electrical
Characteristics table)
• User controls the sample instant
• User supplies two bytes of SCLK, then drives
CS high to relieve processor load while the
ADC converts
• After SSTRB transitions high, the user supplies
two bytes of SCLK and reads data at DOUT
• Internal Clock Mode, Mode 2 (Figure 4)
• High maximum throughput (see the Electrical
Characteristics table)
• The internal clock controls the sampling instant
8-/4-Channel, ±V
REF
Multirange Inputs,
Serial 14-Bit ADCs
22 ______________________________________________________________________________________
1 LSB = FSR x V REF
16,384 x 4.096V
BINARY OUTPUT CODE (LSB [hex])
3FFF
3FFE
3FFD
2001
2000
1FFF
0003
0002
0001
0000
FSR
0 1 2 3 8,192 16,381 16,383
INPUT VOLTAGE (LSB [DECIMAL])
(AGND1)
FSR

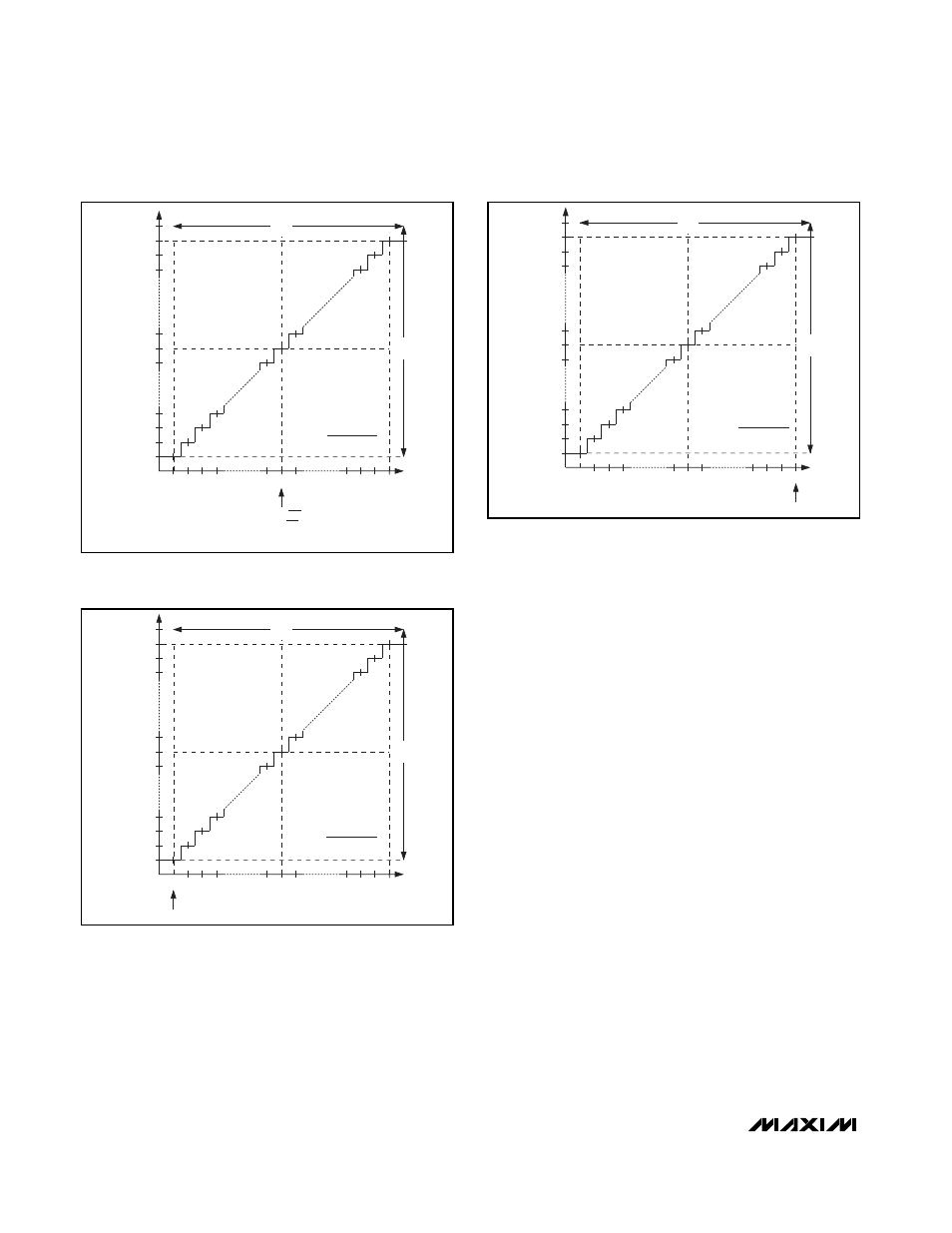

Figure 13. Ideal Unipolar Transfer Function, Single-Ended
Input, -FSR to 0
1 LSB = FSR x V REF
16,384 x 4.096V
BINARY OUTPUT CODE (LSB [hex])
3FFF
3FFE
3FFD
2001
2000
1FFF
0003
0002
0001
0000
FSR
0 1 2 3 8,192 16,381 16,383
INPUT VOLTAGE (LSB [DECIMAL])
(AGND1)
FSR
Figure 14. Ideal Unipolar Transfer Function, Single-Ended
Input, 0 to +FSR
1 LSB = FSR x V REF
16,384 x 4.096V
BINARY OUTPUT CODE (LSB [hex])
3FFF
3FFE
3FFD
2001
2000
1FFF
0003
0002
0001
0000
FSR
-8,192 -8,190 0 +8,189 +8,191
INPUT VOLTAGE (LSB [DECIMAL])
AGND1 (DIF/SGL = 0)
0V (DIF/SGL = 1)
FSR
-1 +1
Figure 12. Ideal Bipolar Transfer Function, Single-Ended or
Differential Input
