MAX1090/MAX1092

only 50µs are required after power-up. Enter standby
mode by performing a dummy conversion with the con-
trol byte specifying standby mode.

Note: Bypass capacitors larger than 4.7µF between
REF and GND will result in longer power-up delays.

Transfer Function

Table 6 shows the full-scale voltage ranges for unipolar
and bipolar modes.

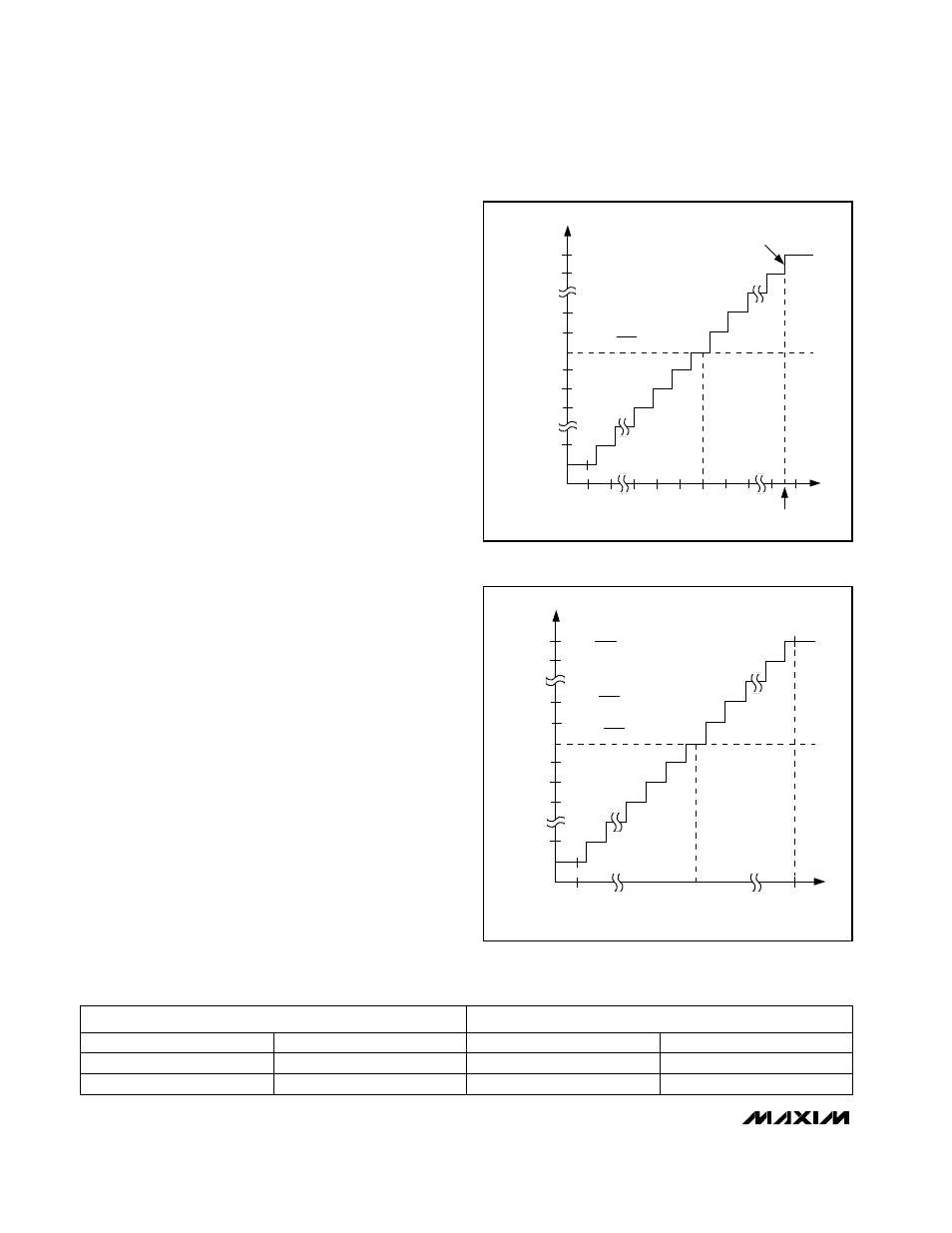

Figure 8 depicts the nominal, unipolar input/output (I/O)
transfer function, and Figure 9 shows the bipolar I/O
transfer function. Code transitions occur halfway
between successive-integer LSB values. Output coding
is binary, with 1LSB = V

REF

/ 1024.

Maximum Sampling Rate/

Achieving 475ksps

When running at the maximum clock frequency of
7.6MHz, the specified 400ksps throughput is achieved
by completing a conversion every 19 clock cycles: 1
write cycle, 3 acquisition cycles, 13 conversion cycles,
and 2 read cycles. This assumes that the results of the
last conversion are read before the next control byte is
written. It’s possible to achieve higher throughputs
(Figure 10), up to 475ksps, by first writing a control
word to begin the acquisition cycle of the next conver-
sion, then reading the results of the previous conver-
sion from the bus. This technique allows a conversion
to be completed every 16 clock cycles. Note that
switching the data bus during acquisition or conversion
can cause additional supply noise that may make it dif-
ficult to achieve true 10-bit performance.

Layout, Grounding, and Bypassing

For best performance, use printed circuit boards. Wire-
wrap configurations are not recommended since the lay-
out should ensure proper separation of analog and digital
traces. Do not run analog and digital lines parallel to each
other, and do not lay out digital signal paths underneath
the ADC package. Use separate analog and digital PC
board ground sections with only one star point (Figure
11) connecting the two ground systems (analog and digi-
tal). For lowest noise operation, ensure the ground return
to the star ground’s power supply is low impedance and
as short as possible. Route digital signals far away from
sensitive analog and reference inputs.

400ksps, +5V, 8-/4-Channel, 10-Bit ADCs
with +2.5V Reference and Parallel Interface

16

______________________________________________________________________________________

111 . . . 111

111 . . . 110

100 . . . 010

100 . . . 001

100 . . . 000

011 . . . 111

011 . . . 110

011 . . . 101

000 . . . 001

000 . . . 000

1

0

2

INPUT VOLTAGE (LSB)

OUTPUT CODE

ZS = COM

FS = REF + COM

FS

512

(COM)

1LSB =

REF

1024

FS -

3

/

2

LBS

FULL-SCALE
TRANSITION

Figure 8. Unipolar Transfer Function

011 . . . 111

011 . . . 110

000 . . . 010

000 . . . 001

000 . . . 000

111 . . . 111

111 . . . 110

111 . . . 101

100 . . . 001

100 . . . 000

- FS

COM*

INPUT VOLTAGE (LSB)

OUTPUT CODE

ZS = COM

+FS - 1LSB

*COM V

REF

/ 2

+ COM

FS

=

REF

2

-FS =

+ COM

-REF

2

1LSB =

REF

1024

Figure 9. Bipolar Transfer Function

Table 6. Full Scale and Zero Scale for Unipolar and Bipolar Operation

UNIPOLAR MODE

BIPOLAR MODE

COM

COM

Zero Scale

Zero Scale

-V

REF

/2 + COM

Negative Full Scale

V

REF

+ COM

V

REF

/2 + COM

Positive Full Scale

Full Scale
