General Description

The MAX2659 high-gain, low-noise amplifier (LNA) is
designed for GPS, Galileo, and GLONASS applications.
Designed in Maxim’s advanced SiGe process, the
device achieves a 20.5dB gain and an ultra-low-noise
figure of 0.8dB while maximizing the input-referred 1dB
compression point and the 3rd-order intercept point at -
12dBm and -5dBm, respectively.

The MAX2659 operates from a +1.6V to +3.3V single
supply and consumes only 4.1mA. The shutdown fea-
ture in the device reduces the supply current to be less
than 1µA. The MAX2659 is available in a very small,
lead-free, RoHS-compliant, 1.5mm x 1.0mm x 0.75mm,
6-pin µDFN package.

.

Applications

Automotive Navigation

Location-Enabled Mobile Devices

Telematics (Asset Tracking and Management)

Personal Navigation Device (PND)

Cellular Phones with GPS

Notebook PC/Ultra-Mobile PC

Recreational, Marine Navigation

Avionics

Features

High-Power Gain: 20.5dB
Ultra-Low-Noise Figure: 0.8dB
Integrated 50Output Matching Circuit
Low Supply Current: 4.1mA
Wide Supply Voltage Range: 1.6V to 3.3V
Low Bill of Materials
Small Footprint: 1.5mm x 1.0mm
Thin Profile: 0.75mm
Lead-Free and RoHS-Compliant Package

MAX2659

GPS/GNSS Low-Noise Amplifier

________________________________________________________________

Maxim Integrated Products

1

1

2

3

6

5

4

RFIN

GND

+

GND

RFOUT

BIAS

SHDN

RF
OUTPUT

LOGIC
CONTROL

V

CC

RF

INPUT

L1 = 6.8nH
C1 = 470pF
C2 = 33nF

L1

C1

C2

V

CC

MAX2659

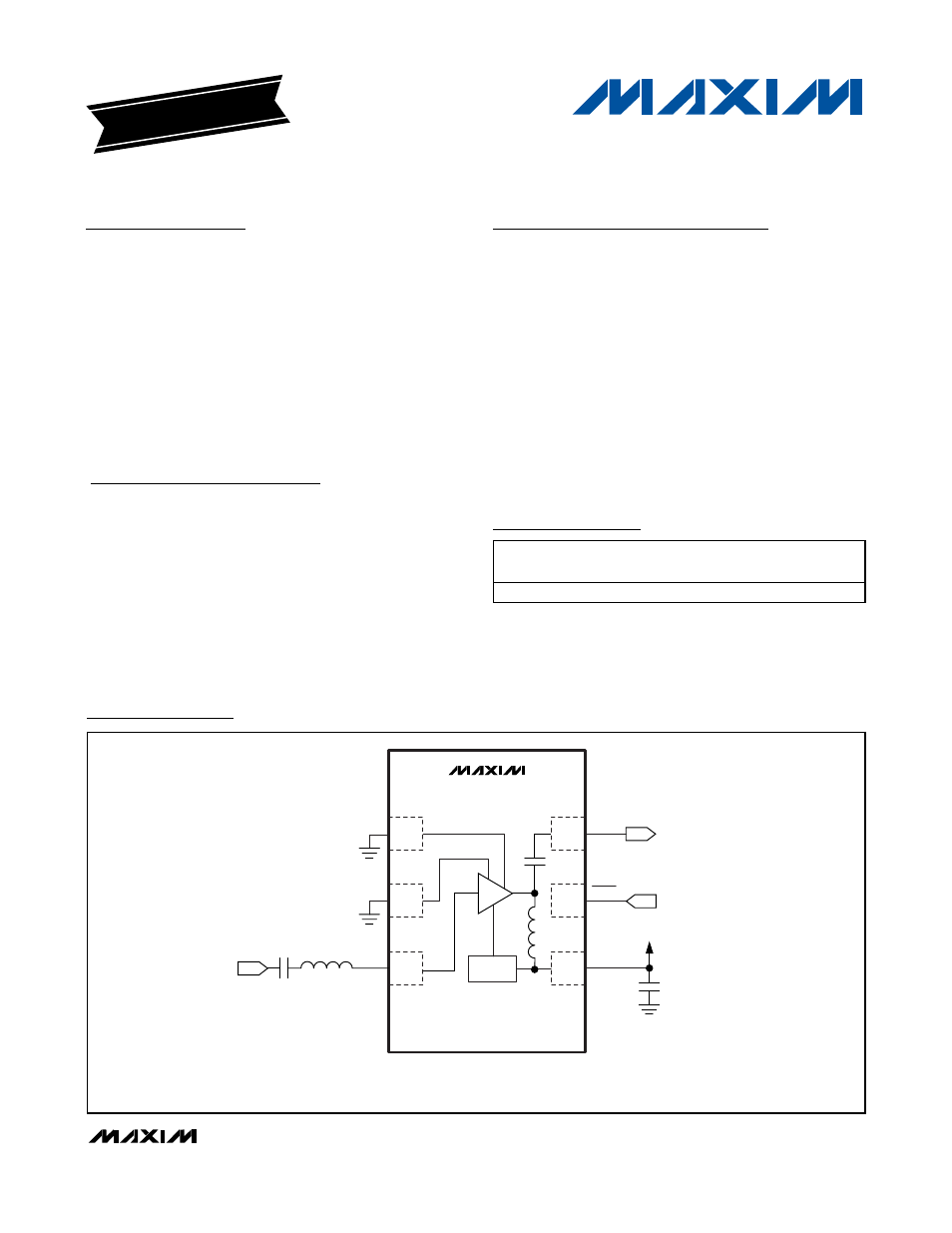

Pin Diagram/Functional Diagram/Typical Application Circuit

Ordering Information

19-0797; Rev 0; 4/07

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

+

Denotes a lead-free package.

PART

TEMP RANGE

PIN-PACKAGE

PKG

CODE

MAX2659ELT+

-40°C to +85°C 6 µDFN

L611-2

EVALUATION KIT

AVAILABLE
