DS4432
Dual-Channel, I
2
C, 7-Bit Sink/Source
Current DAC
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 _____________________ 9
© 2008 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.
I OUT0 is chosen to be 100µA (midrange source/sink
current for the DS4432). Summing the currents into the
feedback node, we have the following:
where
and
To create a 20% margin in the supply voltage, the value
of V
OUT is set to 2.4V. With these values in place, R 0B
is calculated to be 2.67k
Ω, and R
0A is calculated to be
4k
Ω. The current DAC in this configuration allows the
output voltage to be moved linearly from 1.6V to 2.4V
using 127 settings. This corresponds to a resolution of
6.3mV/step.
V CC Decoupling
To achieve the best results when using the DS4432,
decouple the power supply with a 0.01µF or 0.1µF
capacitor. Use a high-quality ceramic surface-mount
capacitor if possible. Surface-mount components mini-
mize lead inductance, which improves performance,
and ceramic capacitors tend to have adequate high-
frequency response for decoupling applications.
I
V V
R
R A
OUT FB
A
0
0
=
−
I
V
R
R B
FB
B
0
0
=
I I I
OUT R B R A 0 0 0
= −
DC-DC
CONVERTER
FB
OUT
SDA
SCL
OUT0
GND
R FS0 = 80k Ω
4.7k Ω 4.7k Ω V CC
V
CC
V
OUT
= 2.0V*
FS0
R 0B = 2.67k Ω
R
0A
= 4k Ω
V FB = 0.8V*
I R0A
I R0B
I OUT0
DS4432
*V OUT AND V FB VALUES ARE DETERMINED BY THE DC-DC CONVERTER AND SHOULD NOT BE CONFUSED WITH V OUT AND V RFS OF THE DS4432.

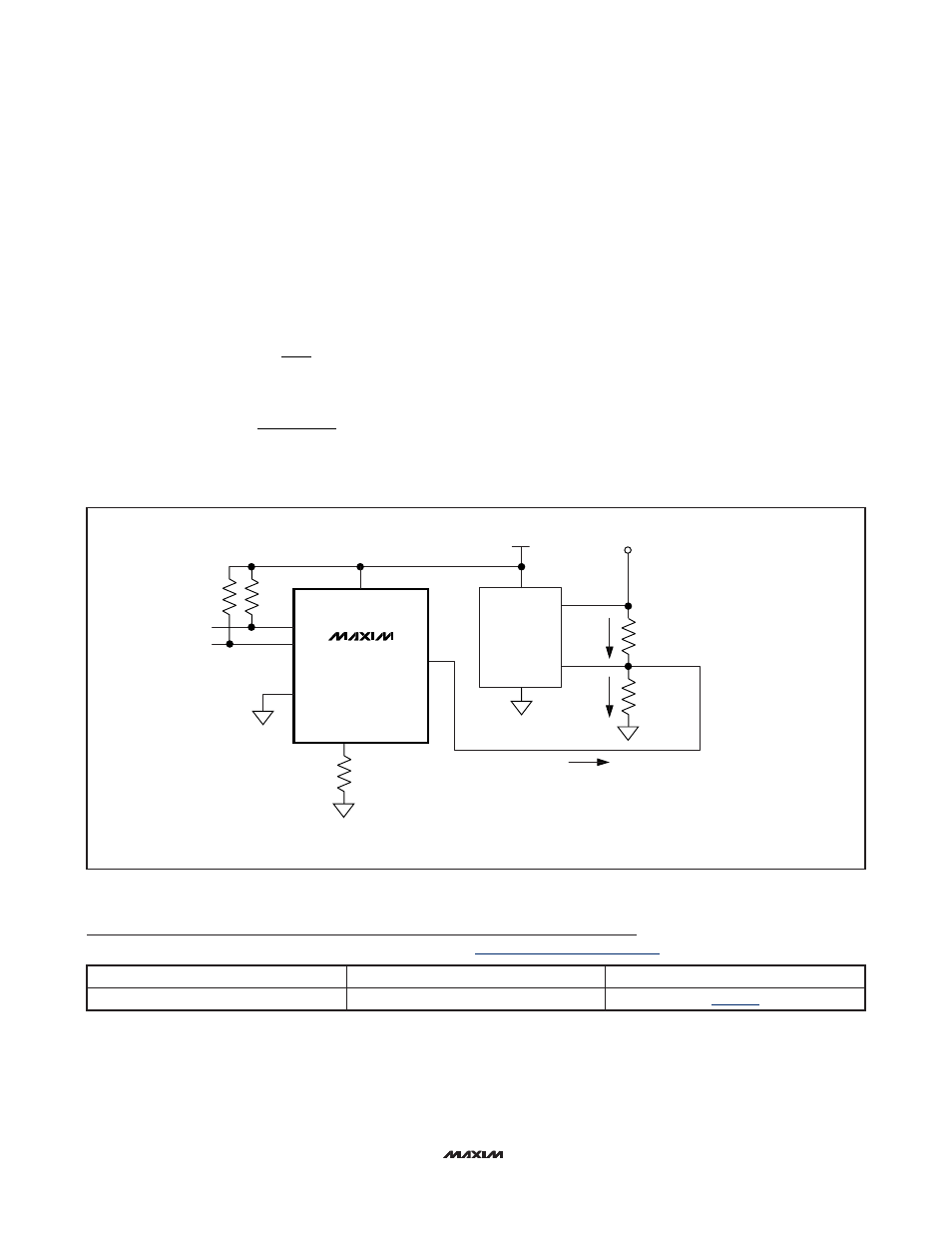

Figure 3. Example Application Circuit
PACKAGE TYPE PACKAGE CODE DOCUMENT NO.
8 µSOP U8+1 21-0036
Package Information
For the latest package outline information and land patterns, go to www.maxim-ic.com/packages .
