FEATURES
§ 256-bit Electrically Erasable Programmable
Read Only Memory (EEPROM) plus 64-bit
one-time programmable application register
§ Unique, factory-lasered and tested 64-bit
registration number (8-bit family code + 48-bit
serial number + 8-bit CRC tester) assures
absolute identity because no two parts are alike
§ Built-in multidrop controller ensures
compatibility with other MicroLAN products
§ EEPROM organized as one page of 32 bytes
for random access
§ Reduces control, address, data, and power to a
single data pin
§ Directly connects to a single port pin of a
microprocessor and communicates at up to
16.3kbits per second
§ 8-bit family code specifies DS2430A
communication requirements to reader
§ Presence detector acknowledges when reader
first applies voltage
§ Low cost TO-92 or 6-pin TSOC surface mount
package
§ Reads and writes over a wide voltage range of
2.8V to 6.0V from -40°C to +85°C
ORDERING INFORMATION
DS2430A
TO-92 package
DS2430AP
6-pin TSOC package
DS2430A/T&R
Tape & Reel version of
DS2430A
DS2430AP/T&R
Tape & Reel version of
DS2430AP
DS2430AX
Chip Scale Pkg., 10k Tape
& Reel
DS2430AX-S
Chip Scale Pkg., 2.5k Tape
& Reel

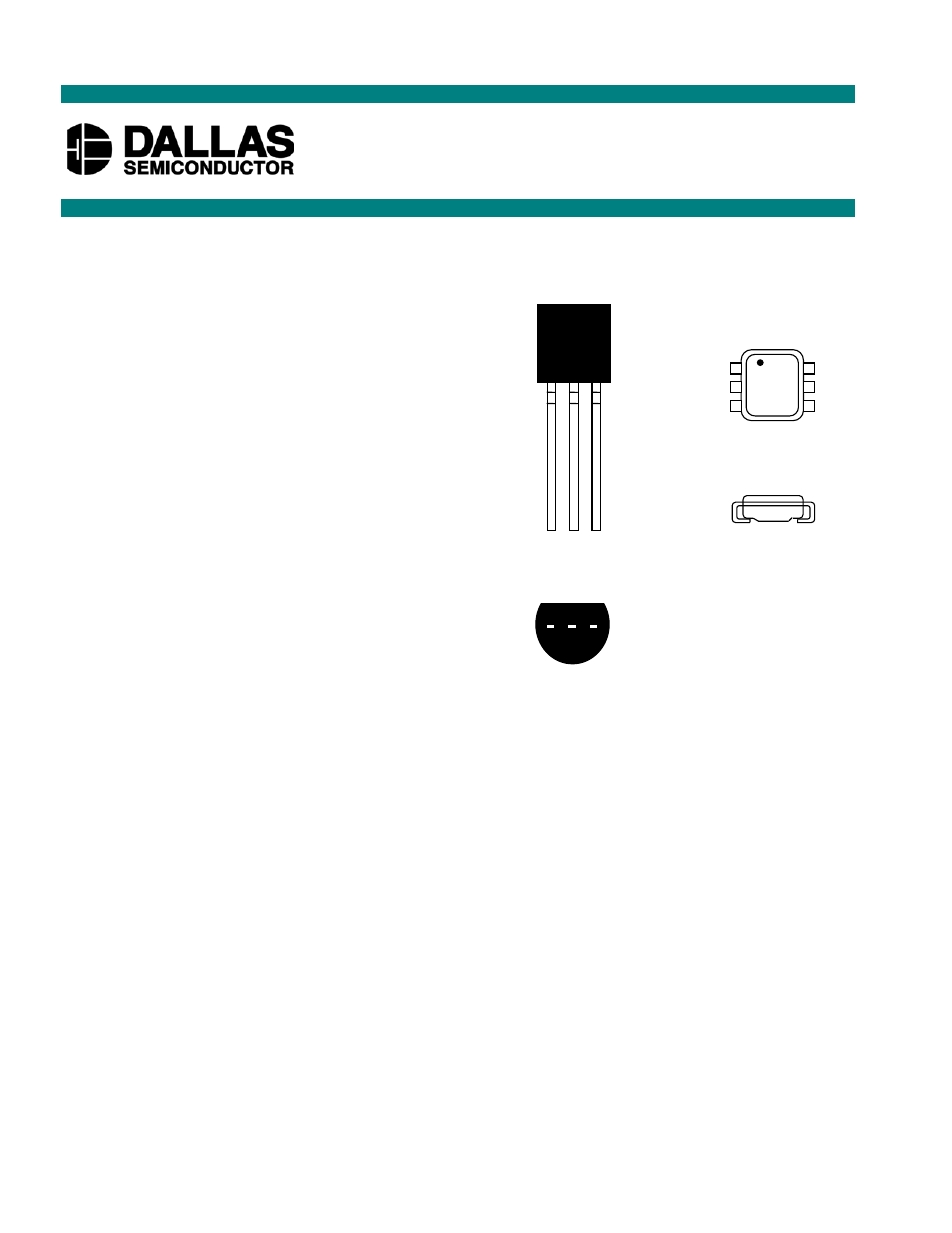

PIN ASSIGNMENT
PIN DESCRIPTION
TO-92
TSOC
Pin 1
Ground
Ground
Pin 2
Data
Data
Pin 3
NC
NC
Pin 4
––––
NC
Pin 5
––––
NC
Pin 6
––––
DS2430A
256-Bit 1-Wire EEPROM
www.maxim-ic.com
1
2
3
6
5
4
TOP VIEW
3.7mm x 4.0mm x 1.5mm
SIDE VIEW
See Mech.
Drawing Section
TSOC PACKAGE
BOTTOM VIEW
See Mech.
Drawings Section
TO-92
DALLAS
DS2430A
2 3
1
1 2 3
