CPU Parallel Mode

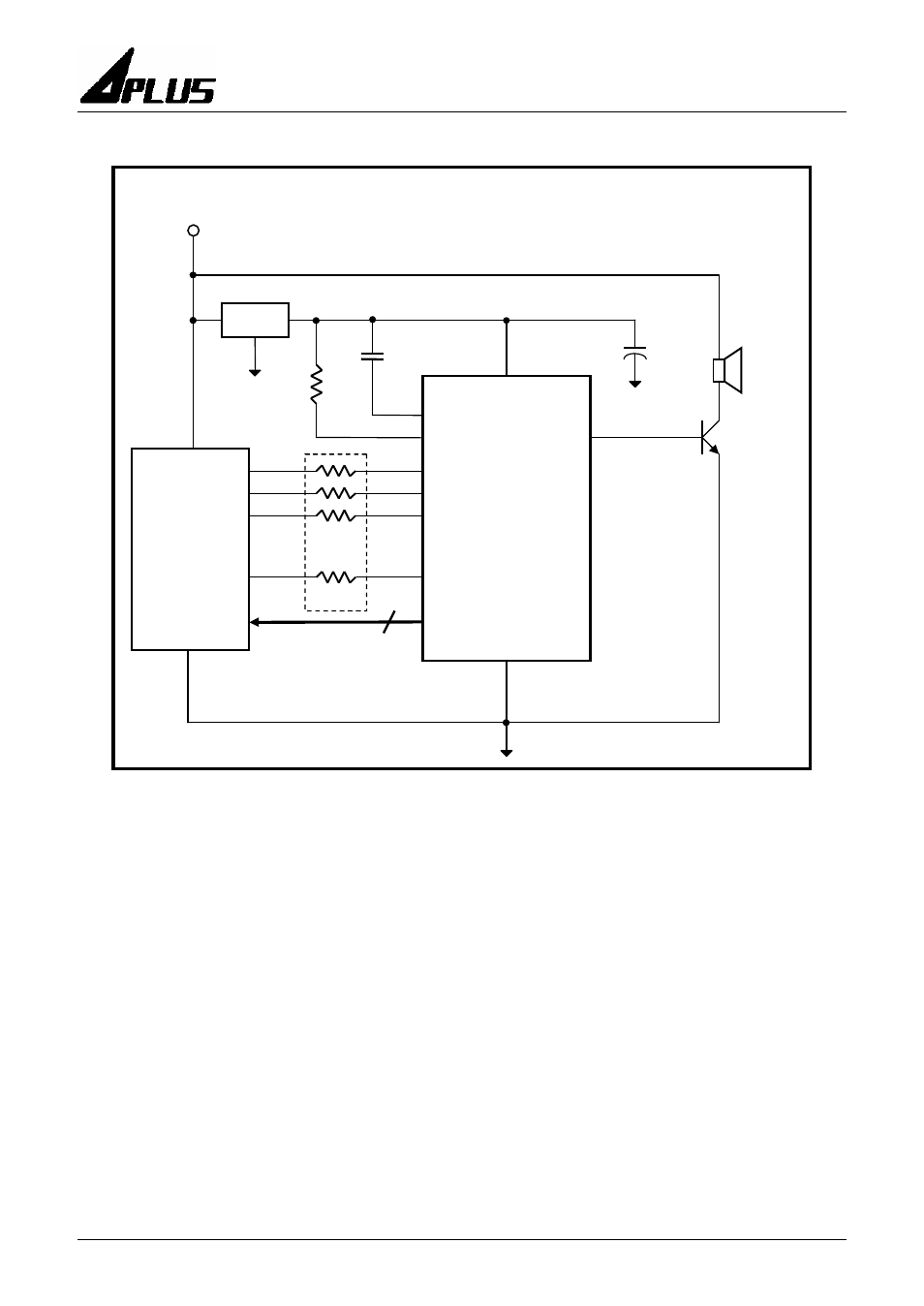

Fig. 24 5V CPU Control with COUT
VDD, AVDD,VPP
VSS, AVSS
RST
S8
OUT[1..3]
OSC
0.01uF
10uF
R OSC
8050D
COUT
8Ω
Speaker
HT7335
S1
S2
S3
VOUT=+3.5V
Addr[0]
Addr[1]
Addr[2]
Addr[7]
I[0..2]
•
•
•
•
•
•
•
•
•
VIN=+5V
Rin = 860KΩ x (VIN-VOUT) / VIN
Rin
3
M
C
U
