1.2. How to use SAM-BA
●
First install the SAM-BA utility
●
First, connect either a USB cable (UDP port) or a RS232 cable (DBG port) between your
host and the QIL-Motherboard.
●

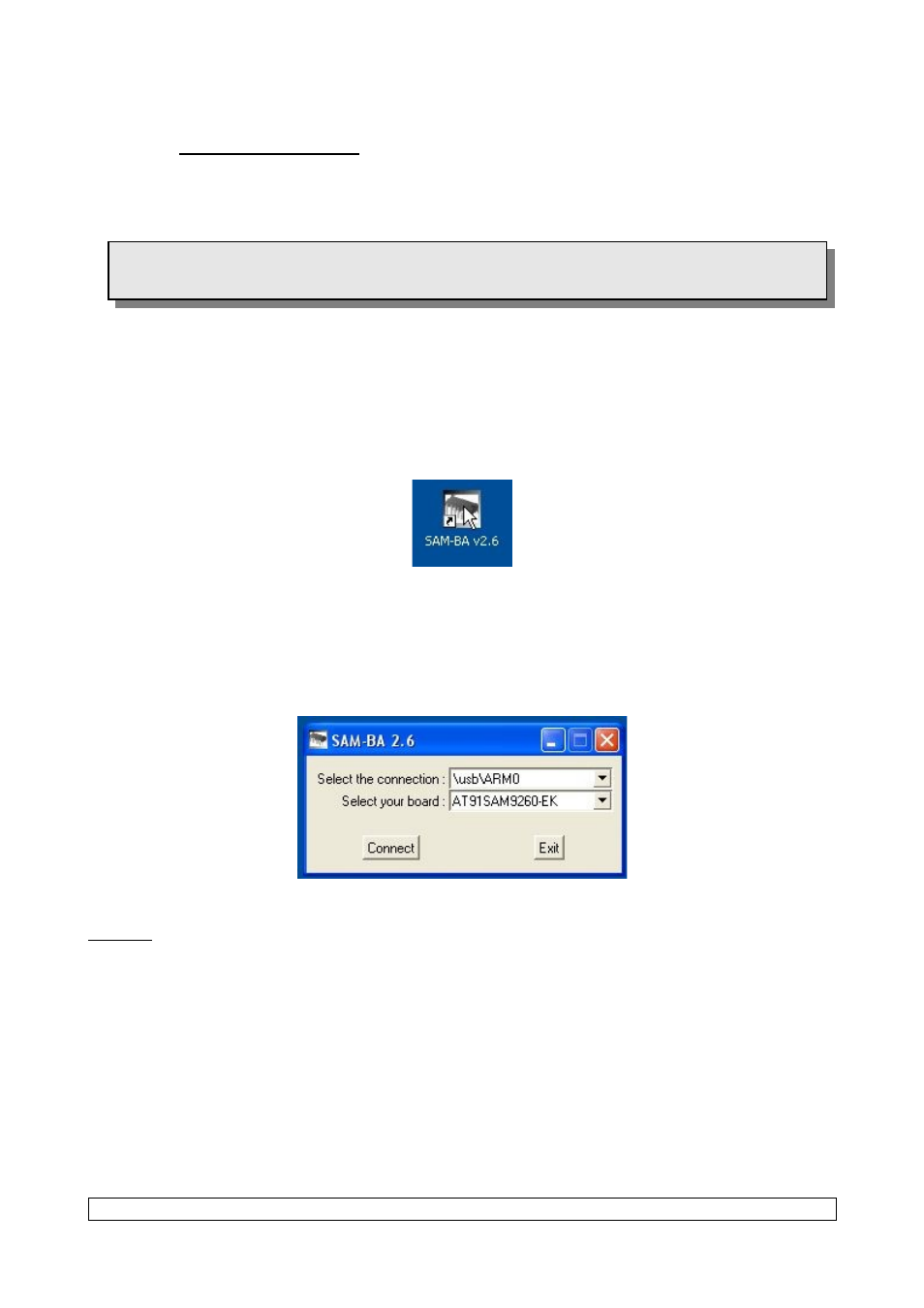

Start SAM-BA application by clicking on the icon below.
●
Choose the usb or the Serial communication interface & the AT91SAM9260-EK board.
●
Click on the « Connect » button.
Remark: The QIL-A9260 is very similar to the AT91SAM9260-EK as far as the memory
configuration is concerned, that's the reason why you can use the AT91SAM9260-EK configuration.
Once started, you can see on the screen three different areas:
●
Memory display area
●
Memory download area
●
TCL shell
Datasheet GSG-00006-A01 16/34
Use the lastest version of the SAM-BA utility (V2.6). Indeed, the old versions contains a bug
on the nand flash bad block management.
