DS1248Y
032697 12/12

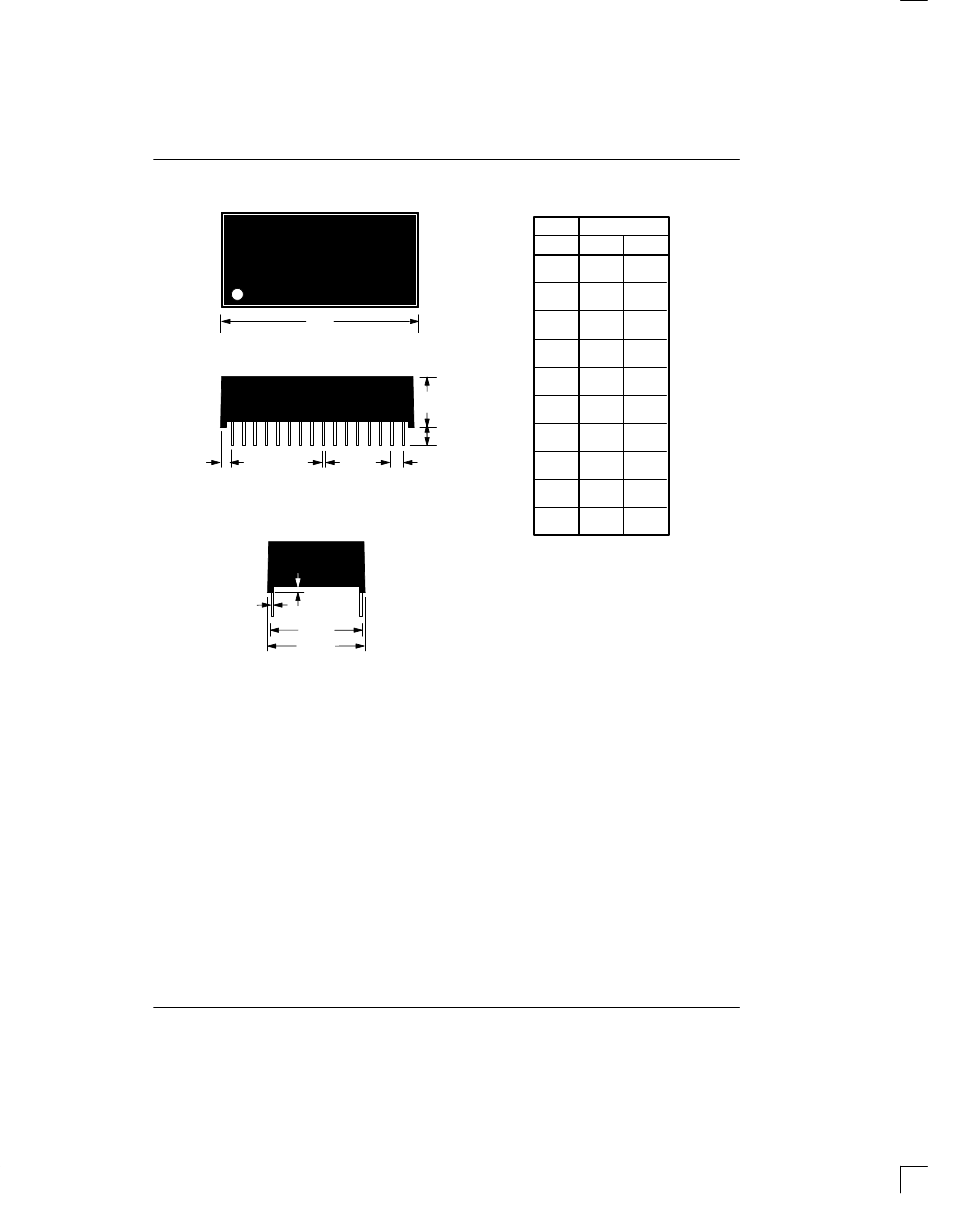

DS1248Y 1024K NV SRAM WITH PHANTOM CLOCK
A
1
C
F
G K D
H
B
E
J
DIM
32–PIN
MIN
PKG
MAX
A IN. 1.720 1.740
MM 43.69 44.20
B IN. 0.720 0.740
MM 18.29 18.80
C IN. 0.395 0.415
MM 10.03 10.54
D IN. 0.090 0.120
MM 2.29 3.05
E IN. 0.017 0.030
MM 0.43 0.76
F IN. 0.120 0.160
MM 3.05 4.06
G IN. 0.090 0.110
MM 2.29 2.79
H IN. 0.590 0.630
MM 14.99 16.00
J IN. 0.008 0.012
MM 0.20 0.30
K IN. 0.015 0.021
MM 0.38 0.53
