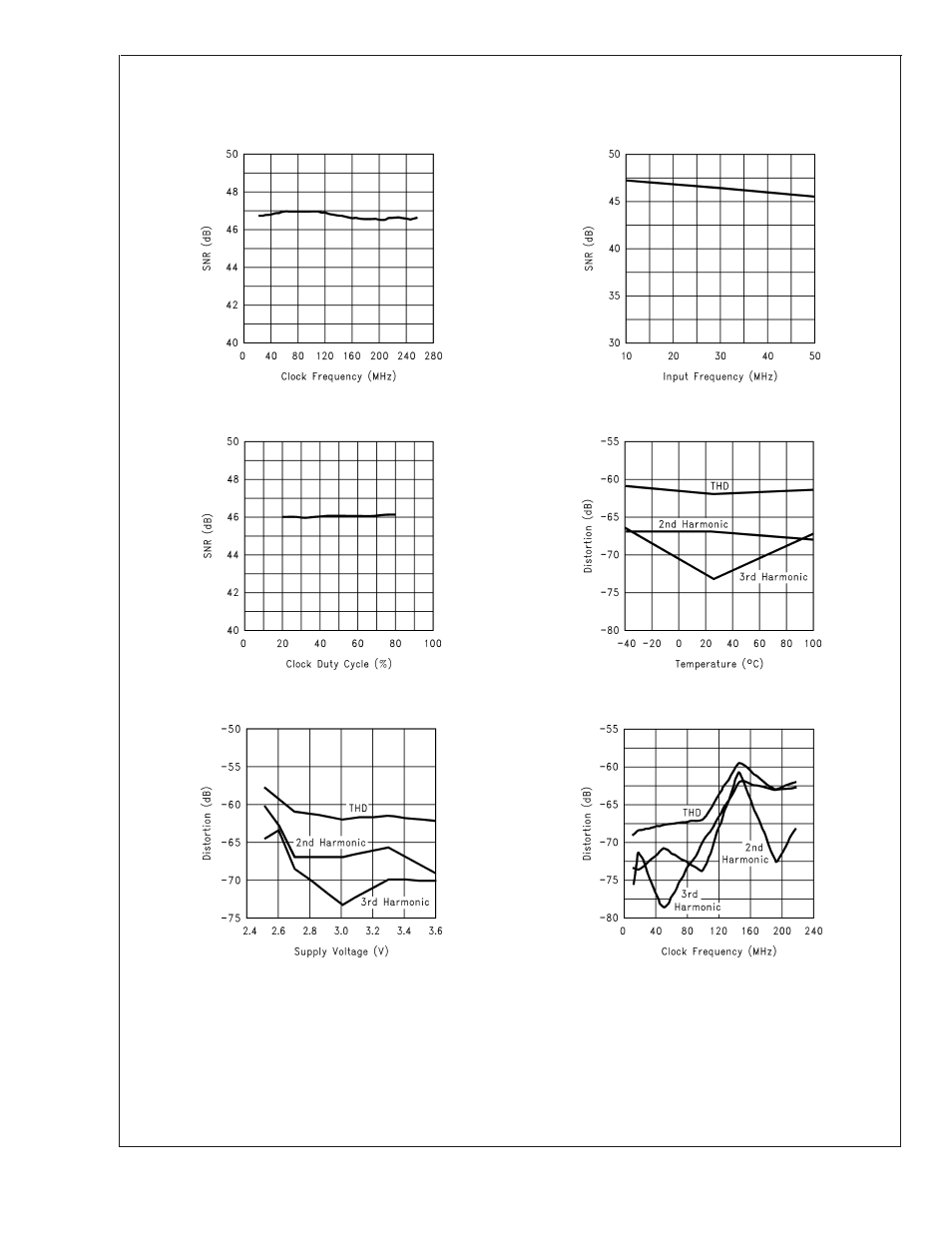

Typical Performance Characteristics
V
A
= V
DR
= 3V, f
CLK
= 200 MHz, f
IN
= 50 MHz, unless
otherwise stated (Continued)
SNR vs. Sample Rate
SNR vs. Input Frequency
20017912
20017923
SNR vs. Clock Duty Cycle
Distortion vs. Temperature
20017924
20017925
Distortion vs. Supply Voltage
Distortion vs. Sample Rate
20017926
20017913
ADC08200
www.national.com
10
