MAX5232/MAX5233
3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference
_______________________________________________________________________________________ 9

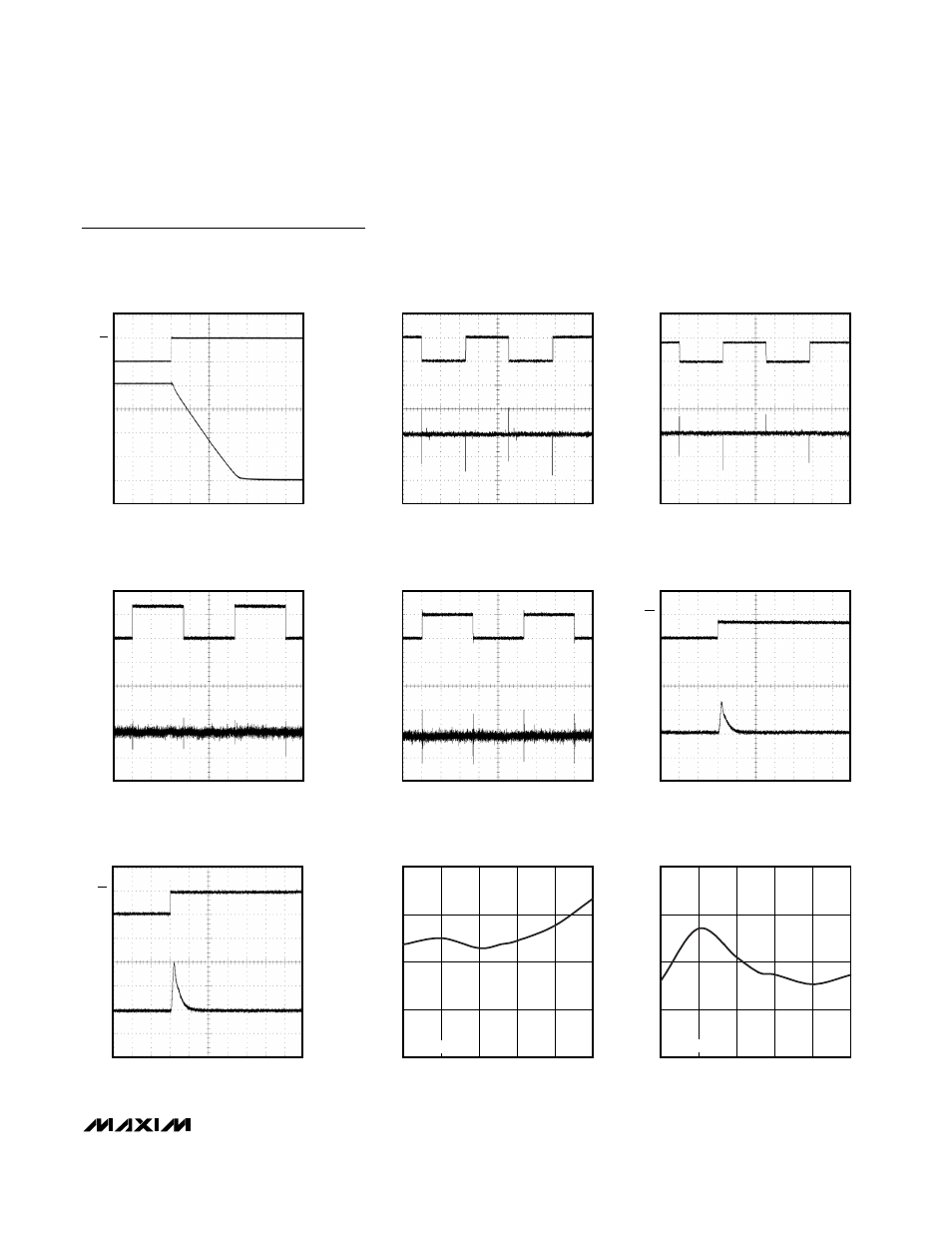

DYNAMIC RESPONSE FALL TIME
(MAX5233)
MAX5232/MAX5233 toc22
2 µs/div
V OUT
1V/div
V
CS
5V/div
4.096V
5V
0
10mV
ANALOG CROSSTALK
(MAX5232)
MAX5232/MAX5233 toc23
400 µs/div
OUTB
5mV/div
AC-COUPLED
OUTA
2V/div
ANALOG CROSSTALK
(MAX5233)
MAX5232/MAX5233 toc24
400 µs/div
OUTB
5mV/div
AC-COUPLED
OUTA
5V/div
DIGITAL FEEDTHROUGH
(MAX5232)
MAX5232/MAX5233 toc25
10 µs/div
OUTA
1mV/div
AC-COUPLED
SCLK
2V/div
DIGITAL FEEDTHROUGH
(MAX5233)
MAX5232/MAX5233 toc26
10 µs/div
OUTA
1mV/div
AC-COUPLED
SCLK
5V/div
MAJOR-CARRY TRANSITION
(MAX5232)
MAX5232/MAX5233 toc27
2 µs/div
OUTA
100mV/div
AC-COUPLED
CS
5V/div
MAJOR-CARRY TRANSITION
(MAX5233)
MAX5232/MAX5233 toc28
2 µs/div
OUTA
100mV/div
AC-COUPLED
CS
5V/div
REFERENCE VOLTAGE
vs. TEMPERATURE (MAX5232)
MAX5232/MAX5233 toc29
TEMPERATURE ( °C)
REFERENCE VOLTAGE (V)
60 35 10 -15
1.2335
1.2340
1.2345
1.2350
1.2330
-40 85
NO LOAD
REFERENCE VOLTAGE
vs. TEMPERATURE (MAX5233)
MAX5232/MAX5233 toc30
TEMPERATURE ( °C)
REFERENCE VOLTAGE (V)
60 35 10 -15
2.4615
2.4620
2.4625
2.4630
2.4610
-40 85
NO LOAD
Typical Operating Characteristics (continued)
(V DD = +3V (MAX5232), V DD = +5V (MAX5233), R L = 5k Ω, C
L = 100pF, OS_ = AGND, both DACs enabled with full-scale output code,
T A = +25°C, unless otherwise noted.)
