MAX15006/MAX15007
40V, Ultra-Low Quiescent-Current
Linear Regulators in 6-Pin TDFN/8-Pin SO
12 ______________________________________________________________________________________
PART ENABLE INPUT
FIXED OUTPUT
VOLTAGE (V)
TOP MARK PIN-PACKAGE
MAX15006AASA+ — 3.3 — 8 SO-EP
MAX15006AATT+ — 3.3 APE 6 TDFN-EP
MAX15006BASA+ — 5 — 8 SO-EP
MAX15006BATT+ — 5 APF 6 TDFN-EP
MAX15007AASA+ √ 3.3 — 8 SO-EP
MAX15007AATT+ √ 3.3 APG 6 TDFN-EP
MAX15007BASA+ √ 5 — 8 SO-EP
MAX15007BATT+ √ 5 APH 6 TDFN-EP

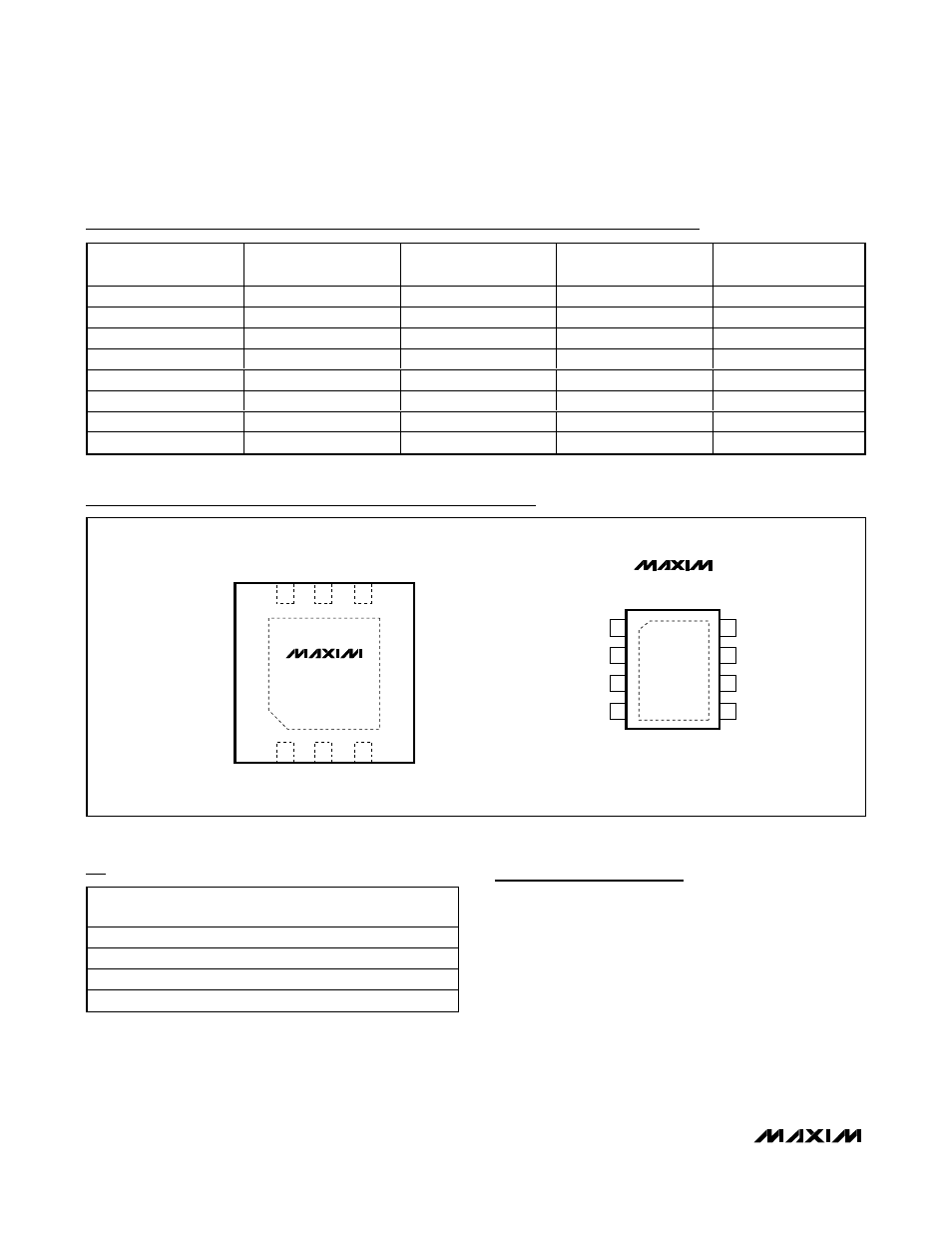

Selector Guide
TOP VIEW
IN
OUT GND
EN IN
OUT
MAX15007A
MAX15007B
1 2 3
6 5 4
TDFN
+
+
N.C.
GND
*EXPOSED PAD
*EP
*EP
N.C.
1
2
8
7
OUT
N.C. N.C.
EN
IN
SO
3
4
6
5
MAX 15007A
MAX15007B
Pin Configurations (continued)
Ordering Information (continued)
Note: All devices are specified over the -40°C to +125°C oper-
ating temperature range.
+
Denotes lead-free package.
* EP = Exposed pad.
PART
PIN-
PACKAGE TOP
MARK
PKG
CODE
MAX15007AASA+ 8 SO-EP* — S8E-12
MAX15007AATT+ 6 TDFN-EP* APG T633-2
MAX15007BASA+ 8 SO-EP* — S8E-12
MAX15007BATT+ 6 TDFN-EP* APH T633-2
Chip Information
PROCESS: BiCMOS
