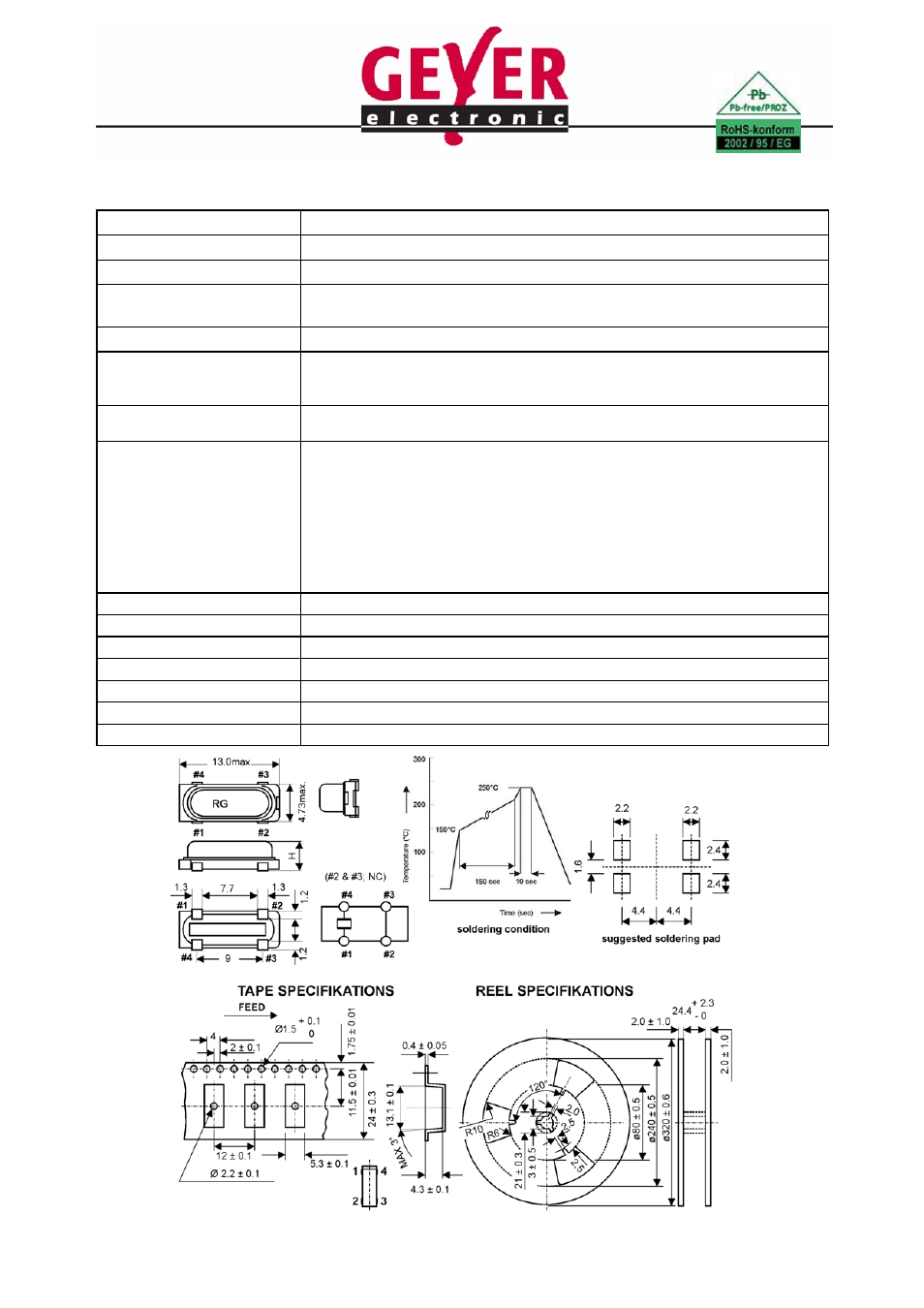

QUARTZ CRYSTALS
MHz range SMD-version
model
KX-CPB
frequency range
3,50 ~ 70,0 MHz
mode fundamental,
3
rd
overtone
operating temperature
standard -20° ~ + 70°C
available -40° ~ + 85°C (=KX-CPBT)
frequency tolerance at +25°C
± 50 ppm
temperature tolerance
at -20° ~ + 70°C
-40° ~ + 85°C
± 50 ppm
± 100 ppm
load capacitance CL
standard 16 pF
available 12 ~ 20 pF
series resonance
R1 max.
fundamental 3,5 ~ 3,99 MHz 150 Ohm
4,0 ~ 5,99 MHz 120 Ohm
6,0 ~ 7,99 MHz 80 Ohm
8,0 ~ 9,99 MHz 60 Ohm
10,0 ~
40,0
MHz
50 Ohm
3
rd
overtone 35,0 ~ 39,99 MHz 100 Ohm
40,0 ~ 49,99 MHz 80 Ohm
50,0 ~ 70,0 MHz 50 Ohm
aging ( first year )
± 5 ppm
shunt capacitance Co max.
7,0 pF
drive level in mW
0,1
height (h) max.
4,3 mm
lead-free
started from date code May, 2005
contents of reel
1000 pcs.
part no.
12.88200 ~ 12.88399
