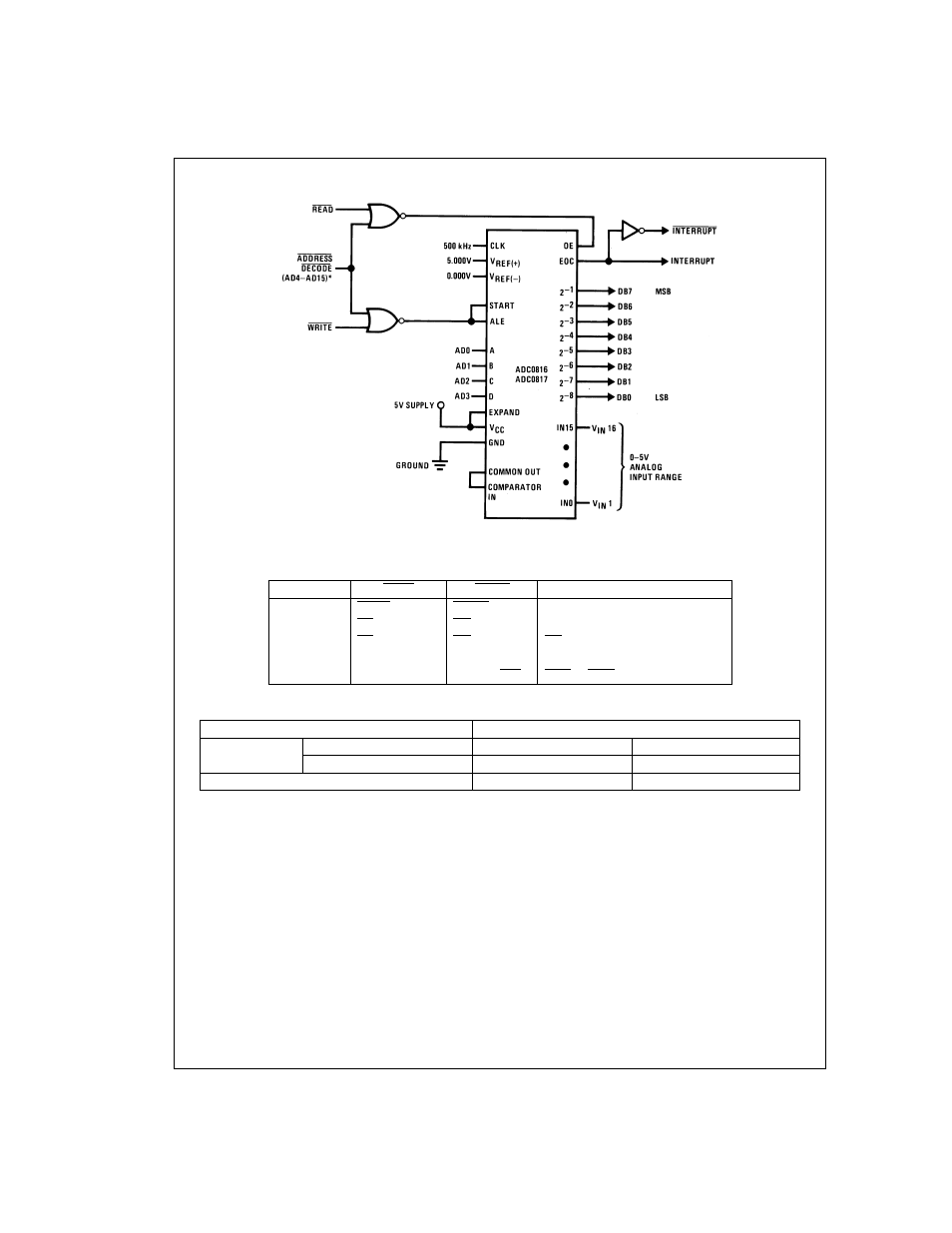

Typical Application
Microprocessor Interface Table
PROCESSOR READ WRITE INTERRUPT (COMMENT)
8080 MEMR MEMW INTR (Thru RST Circuit)
8085 RD WR INTR (Thru RST Circuit)
Z-80 RD WR INT (Thru RST Circuit, Mode 0)
SC/MP NRDS NWDS SA (Thru Sense A)
6800 VMA • φ 2 • R/W VMA • Q
2
• R/W IRQA or IRQB (Thru PIA)
Ordering Information
TEMPERATURE RANGE −40˚C to +85˚C
Error ± 1 ⁄ 2 Bit Unadjusted ADC0816CCN ADC0816CCJ
± 1 Bit Unadjusted ADC0817CCN
Package Outline N40A Molded DIP J40A Hermetic DIP
DS005277-16
*Address latches needed for 8085 and SC/MP interfacing the ADC0816, 17 to a microprocessor
