MAX6754–MAX6764
Low-Power, Single/Dual-Voltage Window
Detectors
______________________________________________________________________________________ 19
Chip Information
TRANSISTOR COUNT: 726
PROCESS: BiCMOS
GND
RESET (RESET) MR
1 5 SET V CC
MAX6754
MAX6755
MAX6756
SOT23
( ) MAX6755 ONLY.
TOP VIEW
2
3 4
GND
UV (UV)
1 6 SET
5 OV
V CC
MAX6757
MAX6758
MAX6759
SOT23
( ) MAX6758 ONLY.
2
3 4 MR
1
2
3
4
8
7
6
5
MR
OVLATCH
UV (UV)
OV SET
V CC2
GND
V CC
MAX6760
MAX6761
MAX6762
TDFN
( ) MAX6761 ONLY.
GND
UV
1 6 OVIN
5 OV
V CC
MAX6763
MAX6764
SOT23
2
3 4 UVIN

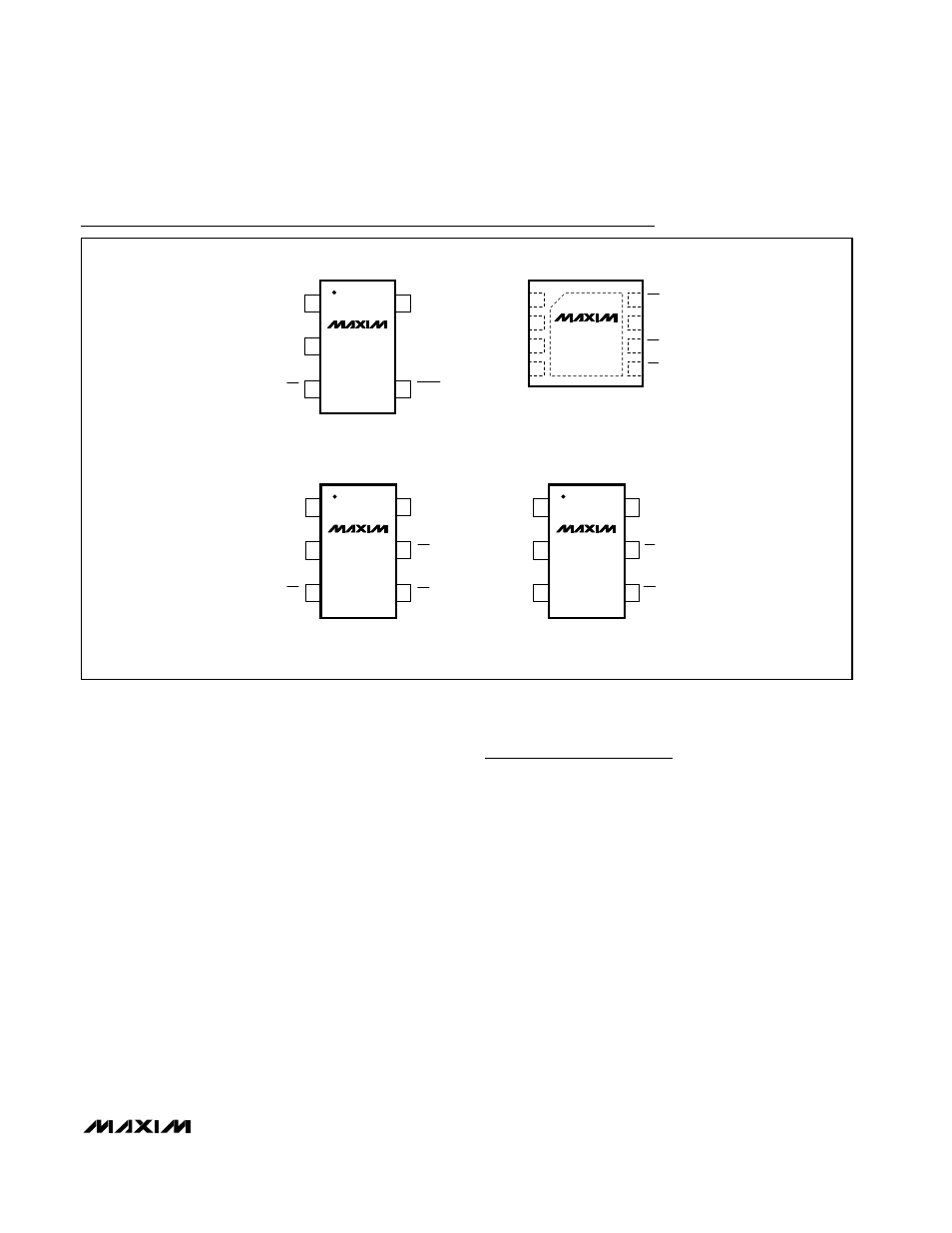

Pin Configurations
