Temperature-Window Alarm
The MAX6507 and MAX6508 have an output (OK, OK)
that indicates the die temperature is within the selected
temperature window. This output is asserted when
within the window, and deasserted when outside the
window. Additionally, a second digital output indicates
when the die temperature is above the upper set point.
This is useful in systems where operation is optimized
over a predetermined temperature range. The thermal
overrange signal can be used to assert a thermal shut-
down, power-up, recalibration, or other temperature-
dependent function (Figure 4 and Typical Operating
Circuits).
Chip Information
TRANSISTOR COUNT: 796
PROCESS: BiCMOS
TRIP TEMPERATURE ( °C) HEX CODE*
-40 82
-35 87
-30 8C
-25 91
-20 96
-15 9B
-10 A0
-5 A5
0 00
5 05
10 0A
15 0F
20 14
25 19
30 1E
35 23
40 28
45 2D
50 32
55 37
60 3C
65 41
70 46
75 4B
80 50
85 55
90 5A
95 5F
100 64
105 69
110 6E
115 73
120 78
125 7D
MAX6505–MAX6508
Dual Trip SOT Temperature Switches
8 _______________________________________________________________________________________

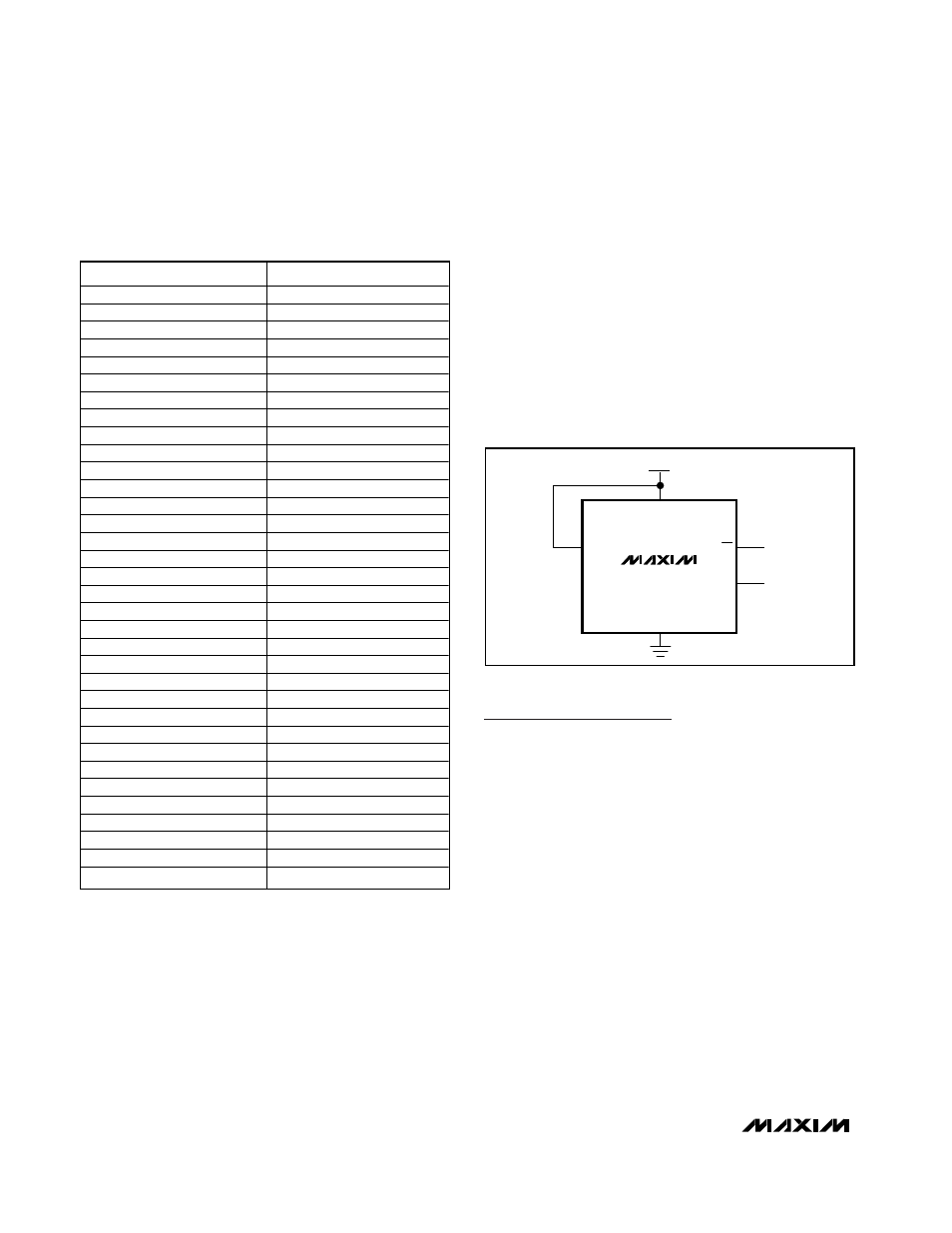

Table 4. MAX6507/MAX6508 Trip
Temperature Code
*Two hex codes are used in the suffix. The first indicates the
the low trip temperature and the second indicates the high trip
temperature. For example, the MAX6507UT8255-T has a lower
trip point of -40
°C and an upper trip point of +85°C.
+2.5V TO +5.5V
OUT OF RANGE
SHUTDOWN
S0
OVER
GND
V CC
OK
MAX6508
Figure 4. Temperature-Window Alarms
