Multiple-Output Power Supply for TFT LCD
Figure 3 shows a power supply for active-matrix TFT-
LCD flat-panel displays. Output-voltage transient perfor-
mance is a function of the load characteristic. Add or
remove output capacitance (and recalculate compensa-
tion-network component values) as necessary to meet
the required transient performance. Regulation perfor-
mance for secondary outputs (V2 and V3) depends on
the load characteristics of all three outputs.
PC Board Layout and Grounding
Careful PC board layout is important for proper operation.
Use the following guidelines for good PC board layout:
1) Minimize the area of high-current loops by placing
the inductor, rectifier diode, and output capacitors
near the input capacitors and near the LX and GND
pins. The high-current input loop goes from the
positive terminal of the input capacitor to the induc-
tor, to the IC’s LX pin, out of GND, and to the input
capacitor’s negative terminal. The high-current out-
put loop is from the positive terminal of the input
capacitor to the inductor, to the rectifier diode (D1),
and to the positive terminal of the output capacitors,
reconnecting between the output capacitor and
input capacitor ground terminals. Connect these
loop components with short, wide connections.
Avoid using vias in the high-current paths. If vias
are unavoidable, use many vias in parallel to
reduce resistance and inductance.
2) Create a power ground island (PGND) consisting of
the input and output capacitor grounds and GND
pins. Connect all of these together with short, wide
traces or a small ground plane. Maximizing the
width of the power ground traces improves efficien-
cy and reduces output voltage ripple and noise
spikes. Create an analog ground plane (AGND)
consisting of the feedback-divider ground connec-
tion, the COMP and SS capacitor ground connec-
tions, and the device’s exposed backside pad.
Connect the AGND and PGND islands by connect-
ing the GND pins directly to the exposed backside
pad. Make no other connections between these
separate ground planes.
MAX8727
TFT-LCD Step-Up DC-DC Converter
______________________________________________________________________________________
11
LX
LX
FB
GND
GND
FREQ
IN
COMP
SS
1
4
5
2
3
9
8
6
7
10
V
IN
4.5V TO 5.5V
SHDN
MAX8727
C1
10
µF
6.3V
R4
10
Ω
C5
1
µF
C4
33nF
C3
330pF
C6
39pF
L1
3.6
µH
D1
R2
28.0k
Ω
1%
R3
100k
Ω
R1
309k
Ω
1%
V2
+28V C9
1
µF
D2
D3
C7
0.1
µF
C8
0.1
µF
V3
-14V
C10
1
µF
V
OUT
15V/600mA
C2
4.7
µF
25V
C7
4.7
µF
25V
C8
4.7
µF
25V

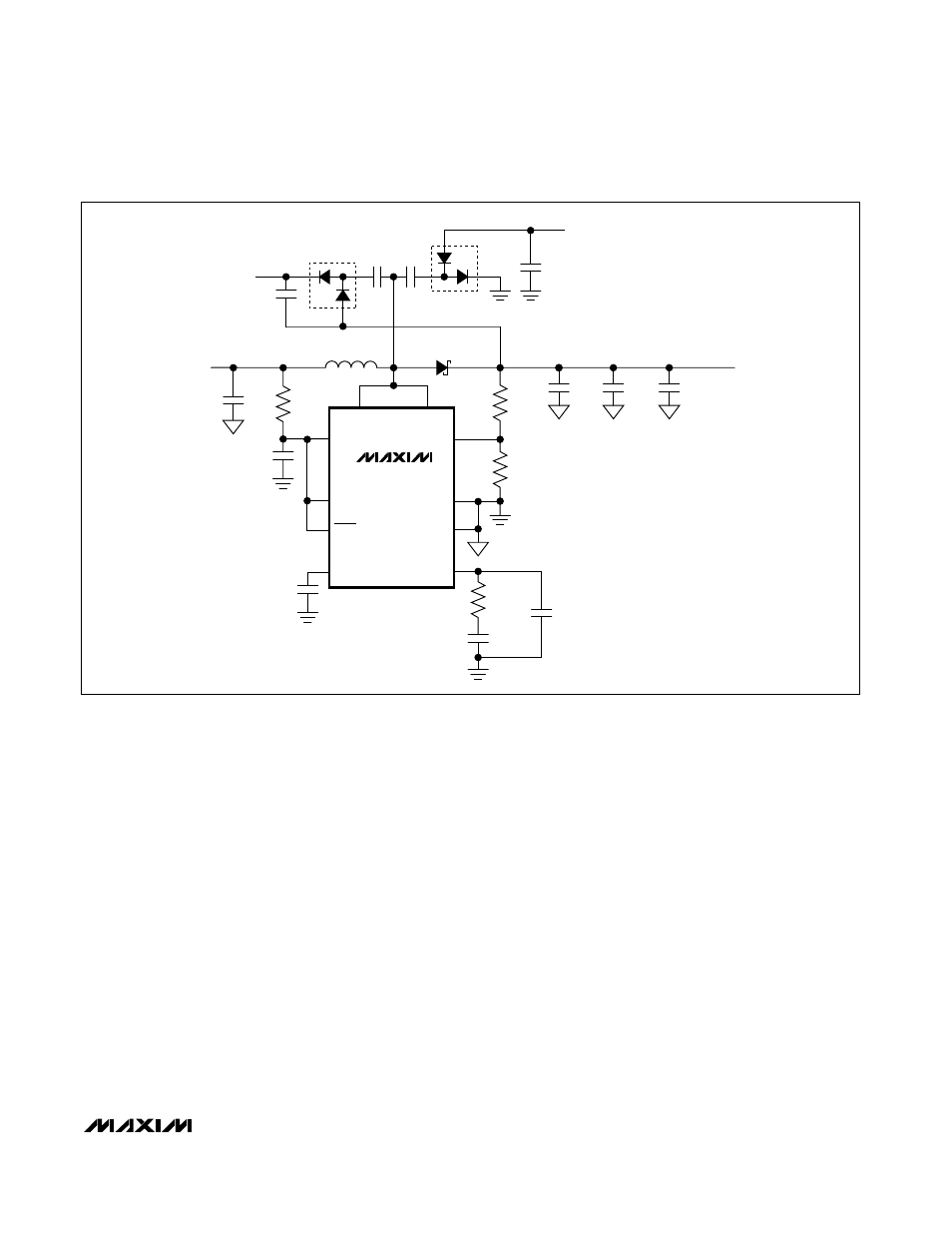

Figure 3. Multiple-Output TFT-LCD Power Supply
