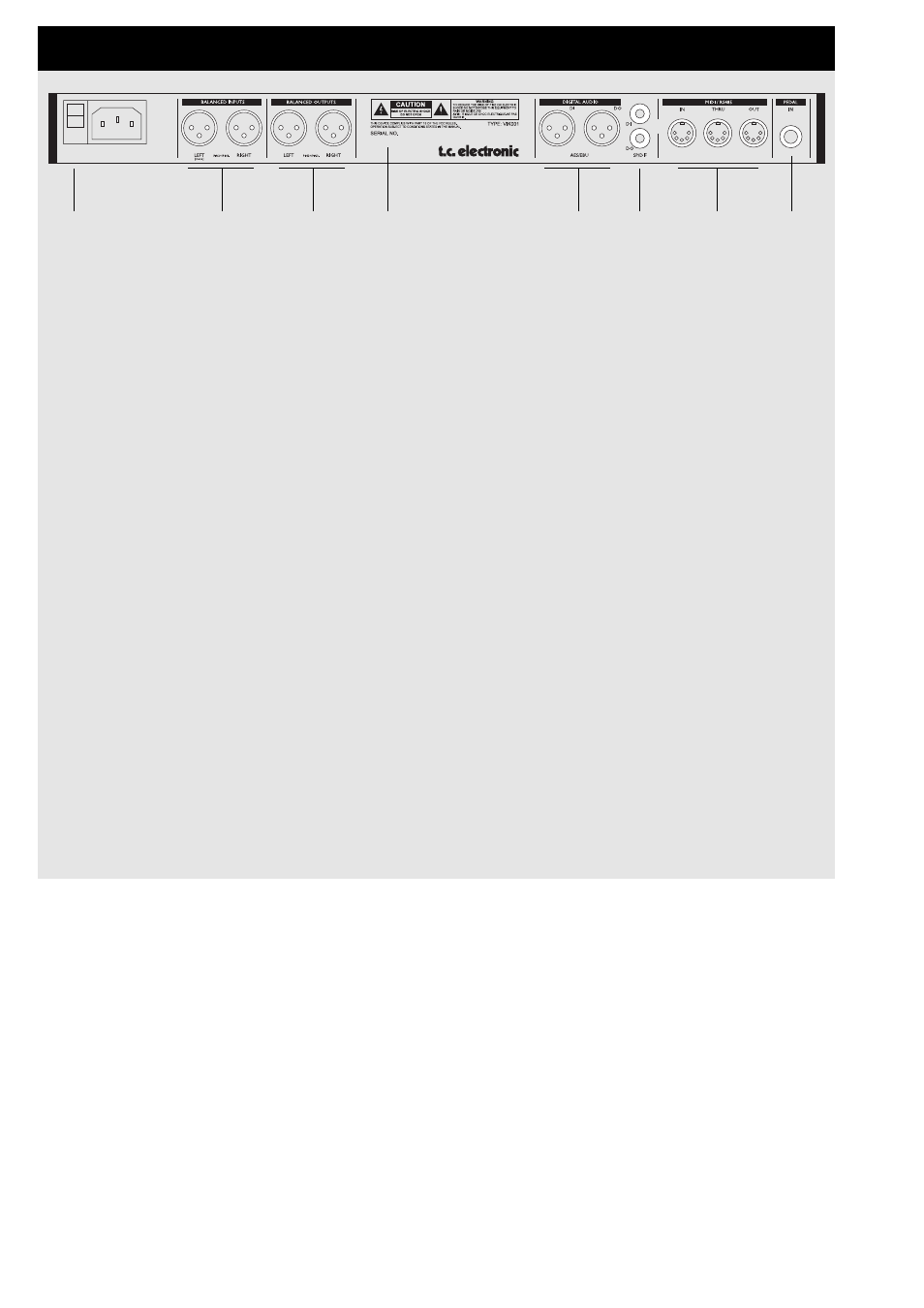

THE REAR PANEL
Main
Power
Switch
Balanced
XLR
Inputs
Balanced
XLR
Outputs
Serial no. AES/EBU
Digital
in/out
S/PDIF
Digital
in/out
MIDI
In,Thru,Out
Pedal
Input
Notes:
To accomodate International regulations, we have also added a back panel power switch.
You don’t need to use the power switch on the rear panel. Use the front panel power switch instead.
Remember to use the left input when you’re using only one input.
Pin 2 is »hot« on all XLR’s (AES Regulations).
If You are connecting the M2000 to unbalanced equipment, you must tie pins 1 and 3 together in the cable
ends away from the M2000.
We have reserved the two unused pins on the MIDI connectors for an optional RS485 interface. Therefore, if
you are connecting M2000 to other equipment that use these pins, please make sure the cable is a 3-wire
standard MIDI type, and not a five wire MIDIPLUS type.
If you want to use the pedal input, be sure it is a momentary »make« type.
