TC Electronic G-System - Manual (Page 30)

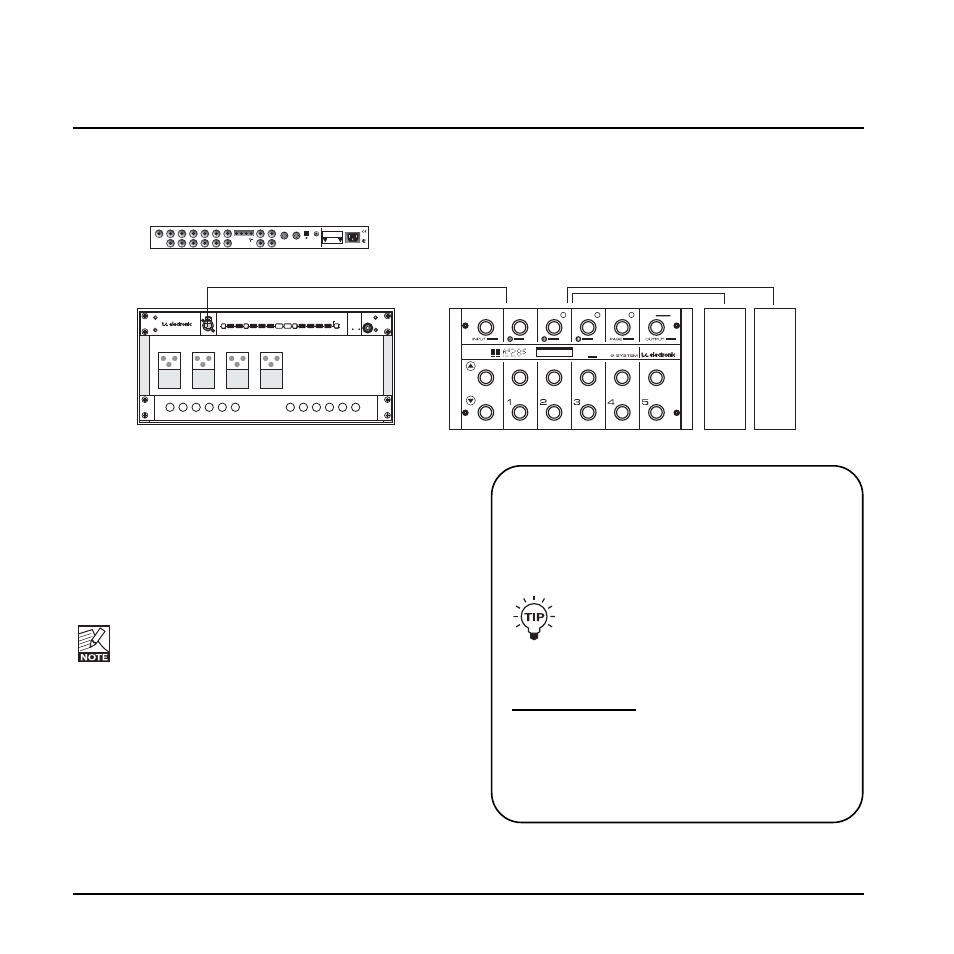

G-System Separated:
GFX01 in a Rack
Drive Pedals
TAP TEMPO
EDIT PARAMETER B EDIT PARAMETER C SELECT PAGE EDIT PARAMETER A GAIN ADJUST
HOLD TO STORE HOLD TO STORE HOLD TO STORE HOLD TO STORE HOLD TO STORE
PRESETABLE BOOST LEVEL
LEVEL SET
EDIT A EDIT B EDIT C
GLOBAL TEMPO
FORMANT | WAH | EFFECT FILTERS COMPRESSOR ALGORITHM
MODE MENU WHAMMY | PITCH ALGORITHM CHORUS | FLANGER | TREMOLO
| RETURN ENTER
HI-CLASS | TAPE ECHO | DYNAMIC REVERB ALGORITHM
INPUT DAMP
EDITED COM FLT PIT DLY REV E1: E2: E3: E4: E5: INTEGRATED EFFECTS +MANAGEMENT
FILTER LOOP LOOP LOOP EDIT 1 2 3 COMP
UP
DOWN
MOD PITCH DELAY REVERB BOOST
ENCODER ENCODER ENCODER ENCODER ENCODER ENCODER
Expression
P
edal
Expression/V
olume
P
edal
CSA FILE #108093
S/PDIF USB POWER OUTPUTS
PEDAL IN MIDI SW OUT OUTPUT INSERT LOOP 4 LOOP 3 LOOP 2 LOOP 1
INPUT INSTRUMENT OUTPUT
DO UL6500 EN/IEC 60065
PROFESSIONAL AUDIO EQUIPMENT
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR. 100-240VAC 50-60Hz, 15W GF001 | MADE IN THAILAND
QUAD 9V DC OUTPUTS 4x50mA or 200mA totally CAUTION R C US
THIS CLASS B DIGITAL DEVICE MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE- CAUSING EQUIPMENT REGULATIONS AND COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION SUBJECT TO CONDITIONS STATED IN THE MANUAL.
RISK OF ELECTRIC SHOCK DO NOT OPEN RETURN RETURN RETURN RETURN SEND SEND SEND SEND
L (mono) 1 VOL SERIAL #
R 2 EXP.
IN OUT
STATUS INPUT CONTROL LINK
PUSH INSTRUMENT
LINK PWR GFX01 | EFFECTS PROCESSING UNIT
PREAMP
SCHEMATICS
FILTER
EXT EFF 1 EXT EFF 2 EXT EFF 3 EXT EFF 4
IN LOOP 1 LOOP 2 LOOP 3 LOOP 4 INSERT AD AD DA DA COMP MOD PITCH DELAY REVERB OUT L DIGITAL OUT
OUT R
Preamp
Rackmount
BOOST ON
vintage pre-drive
BOOST ON
vintage pre-drive
BOOST ON
vintage pre-drive
Important!
When the GFX01 is separated from the Control
Board, we strongly recommend mounting a 1
unit standard blank faceplate instead to ensure
maximum stability.
If you do not use a Cat 5 plug with angled
XLR housing, you can turn the wings that
are holding the blank faceplate by 180
degrees to make space for a normal XLR
plug.
This is easily done:
•
Unscrew the two screws in each side-panel.
• Turn the wings by 180 degrees.
• Mount the wings again using the screws.
Connections
• Unmount the GFX01 (the 19" unit) from underneath
the Control Board by unscrewing the four 6mm
screws.
• Replace the short CAT 5 cable with a longer cable.
• Mount the 19" GFX01 in your rack.
Please note that some racks require 5mm screws,
while others require 6mm screws. The G-System
is assembled using 6mm screws. Use appropriate
screws for your rack.
For advice on how to connect the drive and
expression pedals, please refer to the descriptions
on the previous pages.
TYPICAL SETUPS
28
