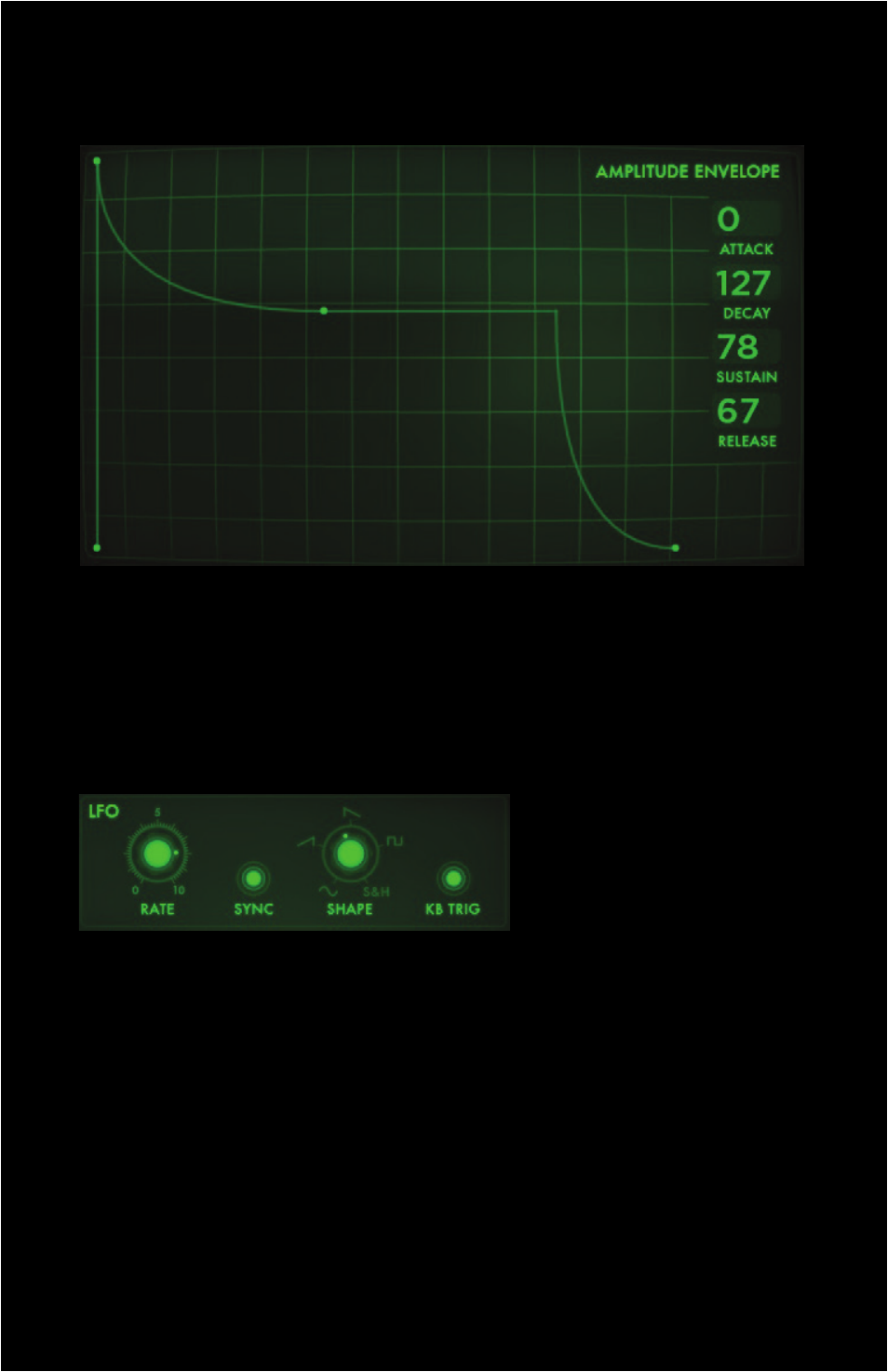

EDITING ENVELOPES
Double tap the corresponding ENVELOPE box to enlarge it.
Touch and drag the ENVELOPE NODES to adjust the Attack, Decay, Sustain,
and Release settings. Double tap the envelope to minimize the display.
NOTE: You can also modify an envelope while minimized.
LFO SECTION
The LFO (low frequency oscillator) is a mODULATION SOURCE accessible
via mOD SLOTS 1-4.
RATE: Adjusts the LFO frequency (how rapidly the LFO waveform cycles.)
SYNC: Sets the current LFO Rate to be a multiple or division of Animoog’s cur-
rent BPM, ranging from 8 Wn (whole notes) to 1/64 Wn.
SHAPE: Provides continuously variable selection between five different wave
shapes: Sine , Ramp, Sawtooth, Square, & Sample and Hold.
TECHNICAL NOTE: All of the wave shapes are bipolar (symmetrical over the
zero crossing) except for Square wave, which is unipolar.
Kb TRIG: Causes the LFO waveform to restart with each new note. This is useful
for creating consistent sound from note to note.
