User's Guide
_______________________________________________________

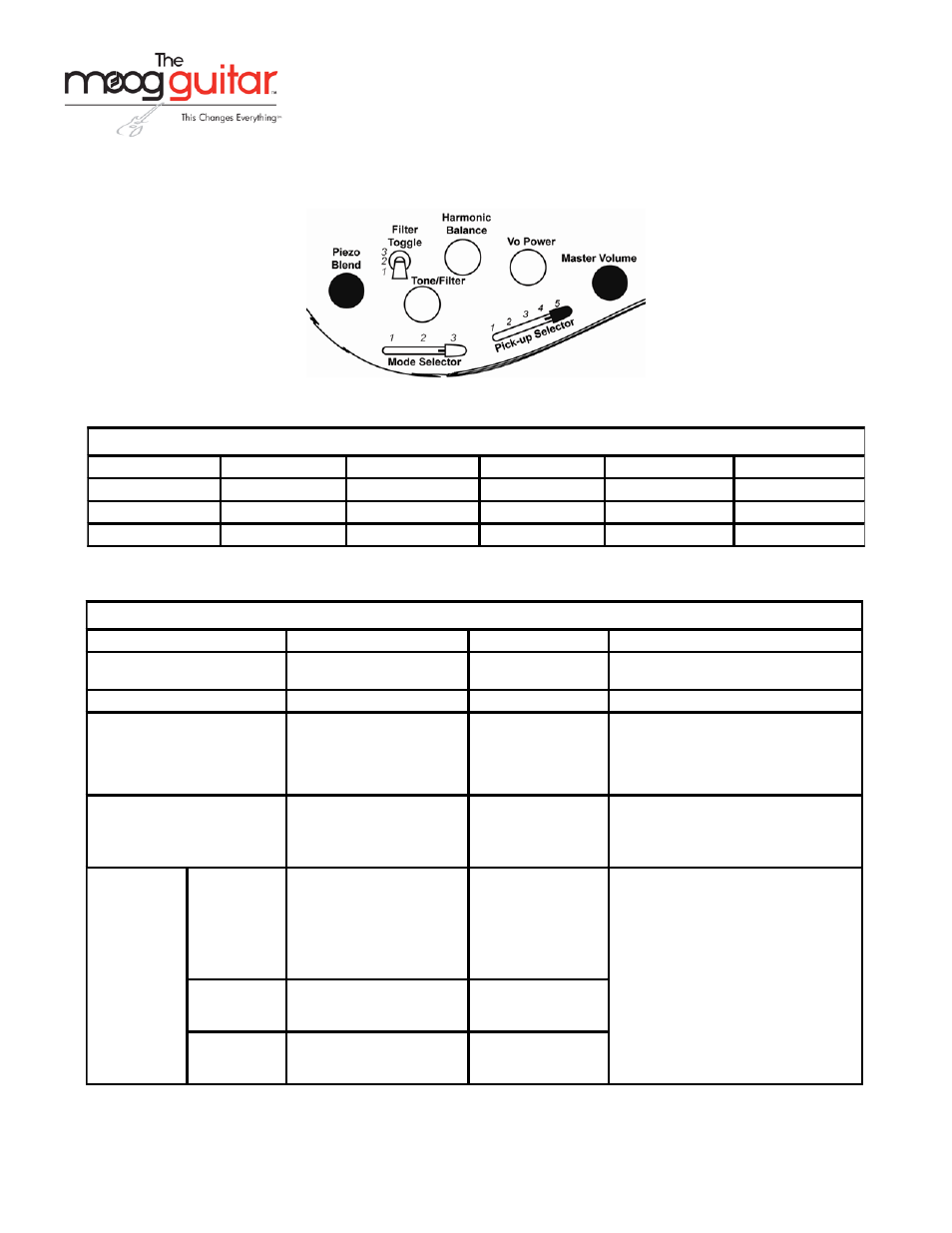

Controls
Knobs
Full Clockwise Full CCW Comments
MASTER VOLUME Full volume No volume Controls overall volume of Moog pick-ups and
piezo output
VO POWER Full Vo Power No Vo Power Turn fully CCW when playing as a normal guitar
HARMONIC BALANCE Neck pick-up only Bridge pick-up only In center detent position, Vo Power is equal on
neck and bridge pick-up.
When the Filter Toggle switch is in the TONE
position, HARMONIC BALANCE is set by Control
Pedal and knob has no effect.
PIEZO BLEND The output signal is 100% from the
neck and/or bridge pick-up, via the
pickup selector switch. The output signal is 100%
from the piezo pick-ups,
but still passes through the
Moog filter. Sets a blend of the piezo and magnetic pickups.
TONE/FILTER
SWITCH
POSITION 1
Tone Emphasizes treble frequencies. Emphasizes bass
frequencies.
SWITCH
POSITION 2
Articulated Filter Full resonance. No resonance.
SWITCH
POSITION 3
Moog Filter Full resonance. No resonance.
Controls either the basic guitar tone or Moog filter
resonance, depending on the FILTER TOGGLE
switch position.
The Moog Guitar’s tone control offers a wider
range than the tone controls found on many other
guitars. This can result in reduced volume at full
CCW settings.
High resonance settings emphasize the
frequencies near the cutoff frequency. This results
in a rich, “wet” sound.
© 2009 Moog Music Inc Specifications subject to change without notice www.moogmusic.com
Switches
Position 1 Position 2 Position 3 Position 4 Position 5
PICK-UP SELECTOR Piezo Bridge Out of Phase In Phase Neck
FILTER TOGGLE Tone Articulated Moog Filter Moog Filter n/a n/a
MODE SELECTOR Mute Controlled Sustain Full Sustain n/a n/a
