•Mount the final pedal assembly to the floor using six .33 (8,4) through holes as shown in Figure 3. Attach the pedal assembly to sturdy
beams or plates with six 5/16 inch bolts. Pedal assembly must be rigidly attached to frame and not deflect under heavy pedal forces.
NOTE: Pedals must be free from obstructions over their entire range of motion. Allow enough space so balance bar adjustments can
be made and master cylinders are accessible.
Adjustments:
•Throttle pedal apply and return limits can be adjusted via the bottom front (as it sits in the vehicle) and bottom rear stop screws on the
pedal. Adjust screws to achieve desired pedal position and lock in place with nuts.
•Clutch pedal position adjustment is made by turning the pushrod in and out of the clevis. The hard stop can be adjusted to limit the
clutch pedal travel, if desired, and locked in place with the nut.
•Brake pedal position is adjusted via the pushrods in the balance bar clevises. Refer to our data sheet DS-252 (available at
www.wilwood.com/PDF/DataSheets/ds252.pdf for proper balance bar adjustment procedure.
•The optional throttle linkage may be set up and adjusted to accommodate most any application. After setting the pedal stops, remove
the connecting rod from the bell crank and turn the rod end in or out to adjust its length, and lock in position with nut. Reconnect the
rod end to the bell crank in the desired hole location. Connect the throttle cable end (customer supplied) to the desired hole location
in the other half of the bell crank.
•Attaching the connecting rod and throttle cable end to equal opposing holes on the bell crank will not affect the throttle pedal ratio.
Moving the cable end closer to the bell crank pivot will increase the effective pedal ratio and decrease the available cable travel. Moving
the connecting rod closer to the pivot will have the opposite effect.
Page 5
Assembly Instructions (Continued)
2.50 (63,5)
2.25 (57,2)
3 PLACES
4.21
(107,0)
1.13 (28,6)
3 PLACES
2.50 (63,5) 3.60 (91,4)
2 PLACES
.33 (8,4) THRU
6 PLACES
1.20 (30,4)
.88 (22,4)
6 PLACES
2,23 (56,5)
3 PLACES
.88 (22,4)
6 PLACES
3.55 (90,2)
3.72
(94,4)
9.91 (251,6)
.09 (2,3)
6 PLACES
5/16-24 THD
6 PLACES
OPTIONAL
THROTTLE
LINKAGE
P/N 340-12412
4.20 (106,7)
3 PLACES
.740 (18,8)
3 PLACES
10.66 (270,6)
RADIUS
3 PLACES

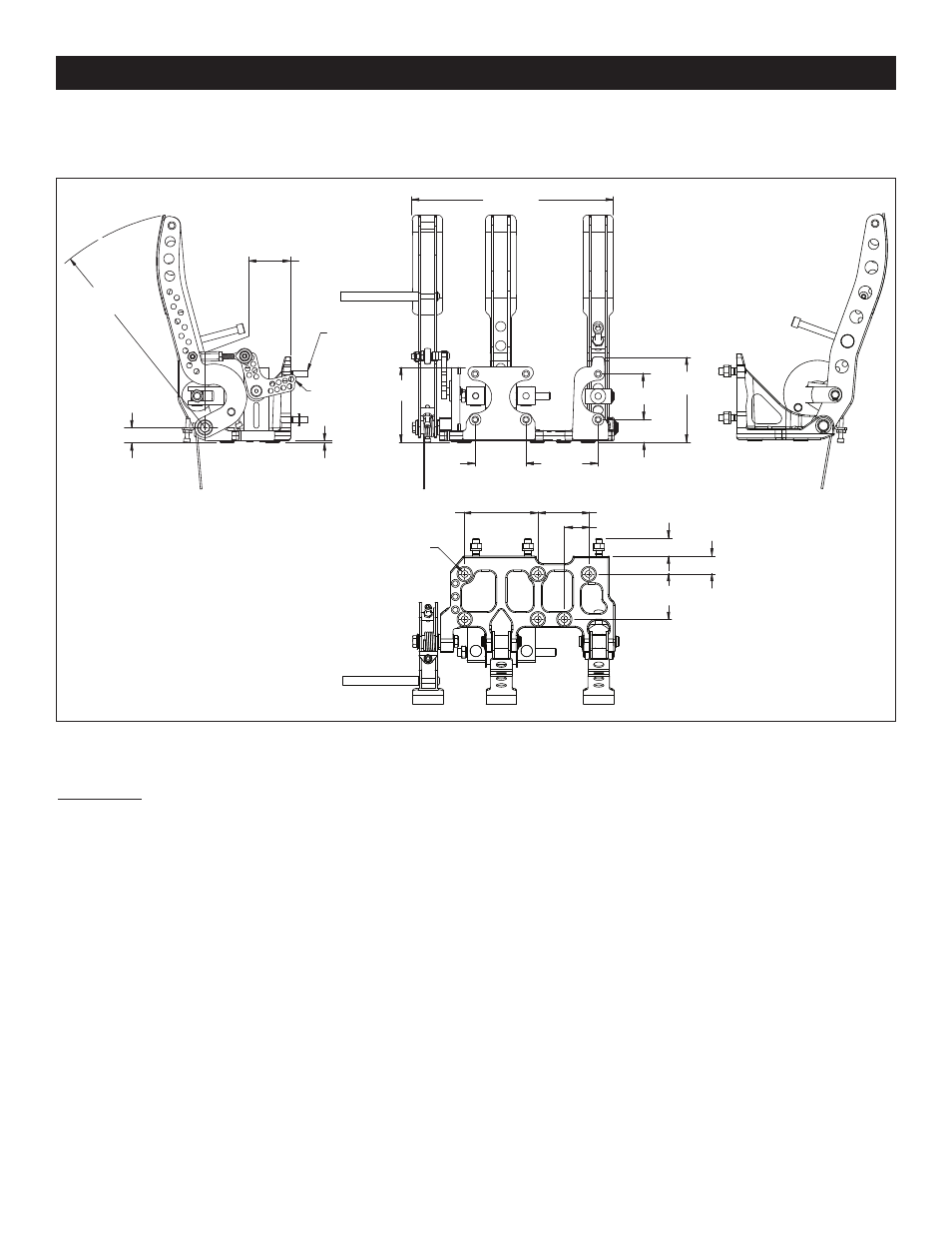

Figure 3. Floor Mount Triple Pedal Assembly, Physical Dimensions (shown with optional throttle assembly)
