Wilwood W6A Big Brake Front Brake Kit - Manual (Page 2)

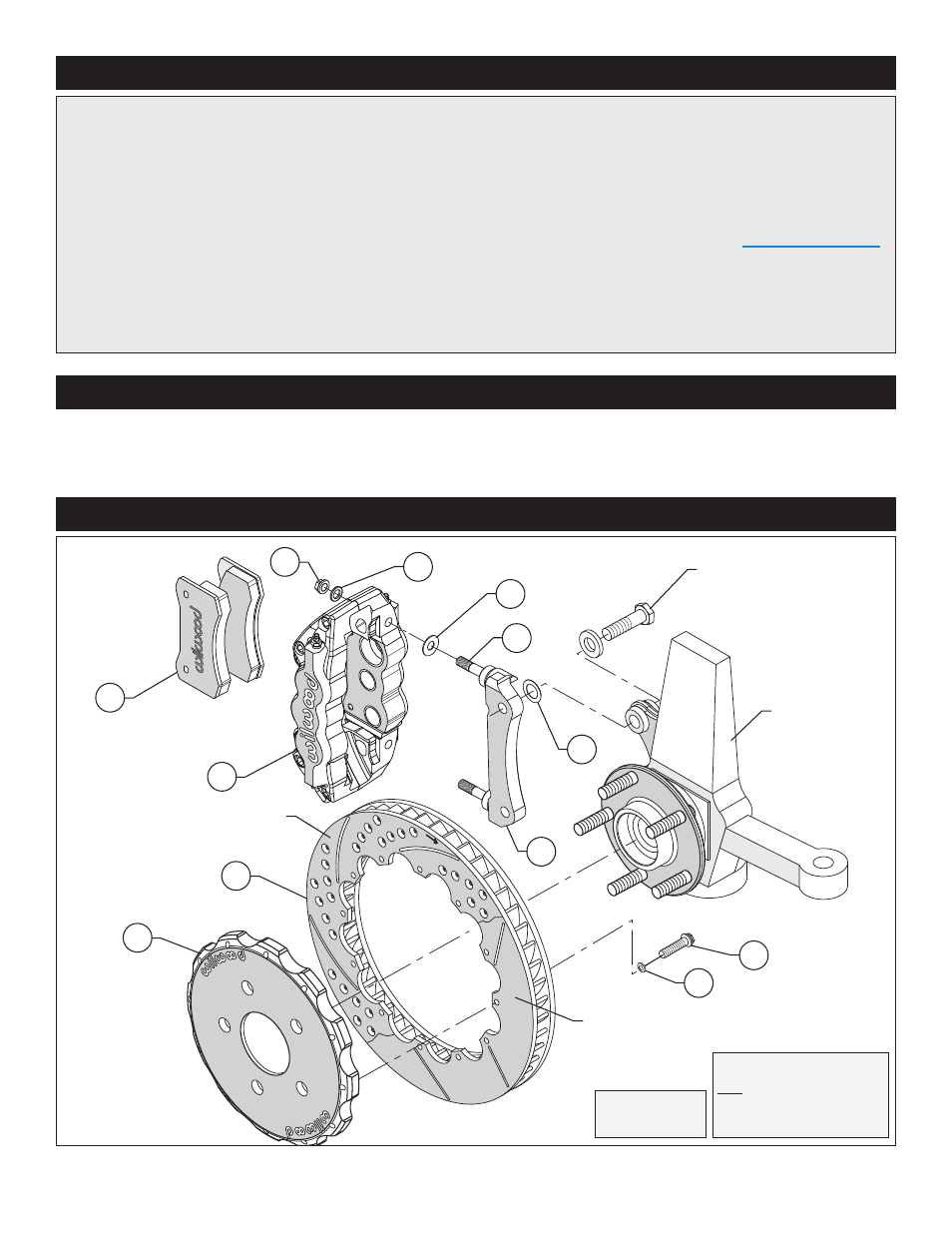

Exploded Assembly Diagram
5
GT SLOT
PATTERN
ROTOR
6
2
1
11
10
9
EXISTING
HUB
ASSEMBLY
ORIGINAL OEM BOLT AND
WASHER REINSTALLED
4
3
SRP DRILLED/SLOTTED
PATTERN ROTOR
7
12
8
Figure 1. Typical Installation Configuration
Important Notice - Read This First
Before any tear-down or disassembly begins, review the following information:
• This kit requires a minimum of 18” or larger wheels and is unlikely to fit OEM factory wheels without wheel
spacers. Aftermarket wheels are more likely to fit, but may require a wheel spacer. Please refer to wheel
clearance diagram (Figure 2, page 3) for the specific sizing requirements to determine compatibility. Parts
that have been installed may not be returned or exchanged.
• Front brake kits do not include flex lines. OEM brake lines will not adapt to Wilwood calipers. Check the
assembly instructions, or associated components section for brake line recommendations before assembly.
In addition, Wilwood offers an extensive listing of brake lines and fittings on our web site:
www.wilwood.com .
• Due to OEM production differences and other variations from vehicle to vehicle, the fastener hardware and
other components in this kit may not be suitable for a specific application or vehicle.
• It is the responsibility of the purchaser and installer of this kit to verify suitability / fitment of all components
and ensure all fasteners and hardware achieve complete and proper engagement. Improper or inadequate
engagement can lead to component failure.
Page 2
WARNING
INSTALLATION OF THIS KIT SHOULD
ONLY BE PERFORMED BY PERSONS
EXPERIENCED IN THE INSTALLATION
AND PROPER OPERATION OF DISC
BRAKE SYSTEMS.
NOTE
SPECIFIC PARTS MAY
VARY FROM DIAGRAM
Photographic Tip
Important and highly recommended: Take photos of brake system before disassembly and during the disassembly process. In the
event, trouble-shooting photos can be life savers. Many vehicles have undocumented variations, photos will make it much simpler for
Wilwood to assist you if you have a problem.
