Wilwood D8-4 Caliper Rear - Manual (Page 2)

Wilwood • June 2012 • 805 / 388-1188 • Fax 805 / 388-4938
5.84 (148,3)
DISC WIDTH
1.25 (31,8) 2.30 (58,3)
MOUNTING
SURFACE
MOUNT OFFSET
1.70 (43,2)
10.21 (259,3)
1.83 (46,5)
MOUNT
HEIGHT
7.00 (177,8)
MOUNT CENTER
TOP OF FRICTION
MATERIAL AND DISC
O.D. TO BE FLUSH
DISC/WHEEL CENTERLINE
NOTE: DIMENSIONS FOR USE WITH 1965-82 STOCK FRONT CORVETTE ROTOR, 11.75 (298,5) X 1.25 (31,8) • INLET FITTING: 1/8-27 NPT
4.02 (102,1)
CENTER PISTON
D8-6 ONLY
7/16-20 UNF-2B
THD THRU
MOUNT HOLE
7.00 (177,8)
OUTSIDE RADIUS

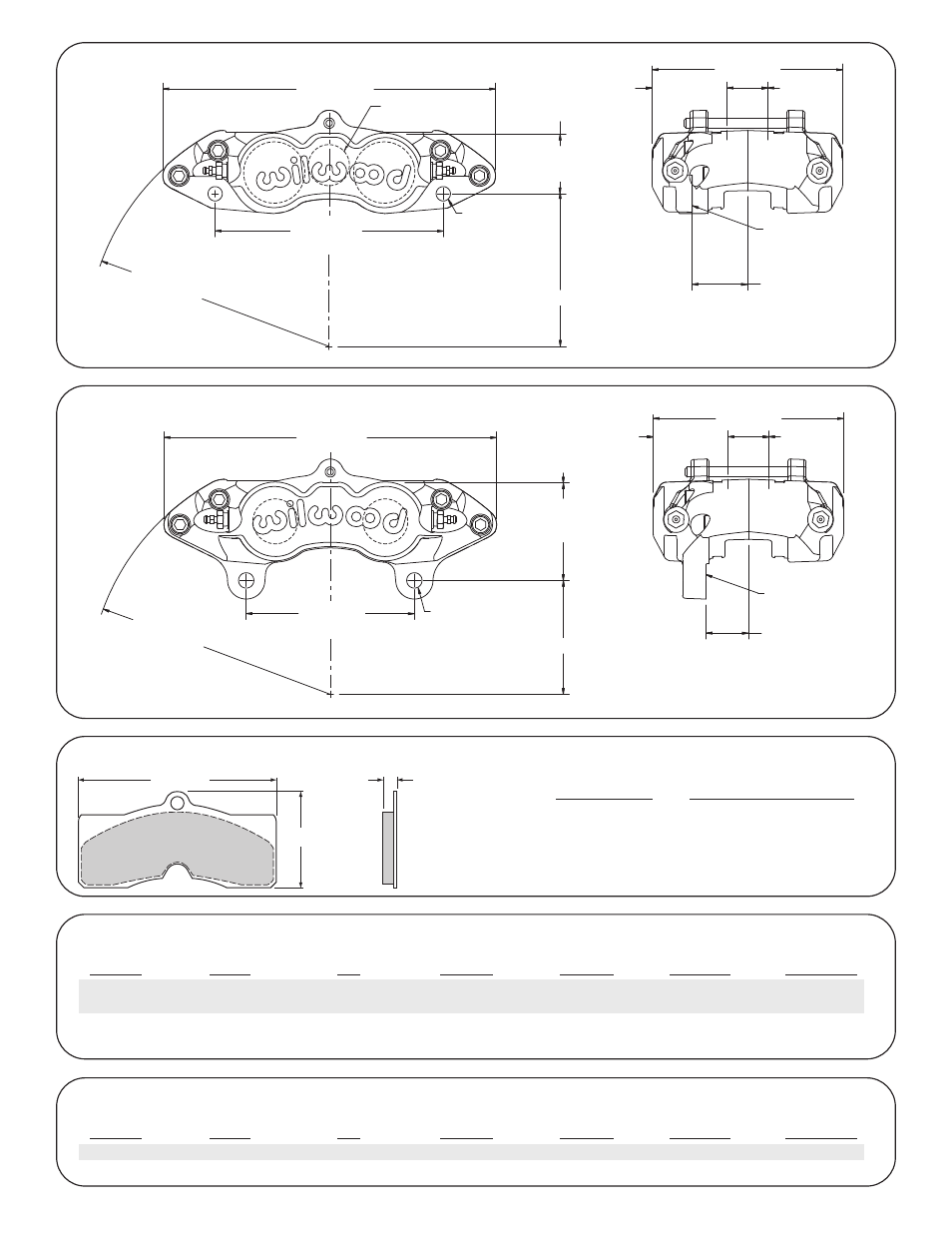

D8-6/4 FRONT CALIPER, MOUNTING DIMENSIONS:
5.84 (148,3)
DISC WIDTH
1.25 (31,8) 2.30 (58,3)
MOUNTING
SURFACE
MOUNT OFFSET
1.30 (33,0)
10.21 (259,3)
2.99 (75,9)
MOUNT
HEIGHT
5.16 (131,1)
MOUNT CENTER
.47 (11,9)
MOUNT HOLE
TOP OF FRICTION
MATERIAL AND DISC
O.D. TO BE FLUSH
DISC/WHEEL CENTERLINE
NOTE: DIMENSIONS FOR USE WITH 1965-82 STOCK REAR CORVETTE ROTOR, 11.75 (298,5) X 1.25 (31,8) • INLET FITTING: 1/8-27 NPT
2.86 (72,6)
7.00 (177,8)
OUTSIDE RADIUS
D8-4 REAR CALIPER, MOUNTING DIMENSIONS:
D8-4 ORDERING INFORMATION, USER SERVICEABLE COMPONENTS:
CALIPER SQ RING BLEED SCREW BODY BRIDGE WEAR PAD RETAINER
PART NO. PISTON (EA) KIT (4 PK) SEAL (EA) PLATE (EA) CLIP PIN (EA)
120-10525 200-7521 (1.88”) 210-5445 220-0627 210-2582 300-10523 310-3634
120-10526 200-7516 (1.38”) 210-5442 220-0627 210-2582 300-10523 310-3634
D8-6 ORDERING INFORMATION, USER SERVICEABLE COMPONENTS:
CALIPER SQ RING BLEED SCREW BODY BRIDGE WEAR PAD RETAINER
PART NO. PISTON (EA) KIT (4 PK) SEAL (EA) PLATE (EA) CLIP PIN (EA)
120-11711 200-7521 (1.88”) 130-11939 220-0627 210-2582 300-10523 300-3634
200-7516 (1.38”)
200-7514 (1.25”)
120-11712 200-7521 (1.88”) 130-11939 220-0627 210-2582 300-10523 300-3634
200-7516 (1.38”)
200-7514 (1.25”)
2.98 (75,7)
.49
(12,3) 6.21 (157,7)
D8 CALIPER, TYPE D8 PAD DIMENSIONS AND ORDERING INFORMATION:
AXLE SET P/N PAD TYPE / COMPOUND
150 - 10546K D8 10 BP-10 Smart Pad
150 - 10547K D8 20 BP-20 Smart Pad
15A - 6202K D8 A PolyMatrix
15E - 8300K D8 E PolyMatrix
15Q - 8623K D8 Q PolyMatrix
