Parts List

General Information and Disassembly Instructions

Installation of this kit should ONLY be performed by

individuals experienced in the installation and proper
operation of disc brake systems.
Prior to any attempt to install
this kit, please check the following to ensure a trouble free
installation.

• Inspect the contents of this kit against the parts list to ensure

that all components and hardware are included.

• Make sure this is the correct kit to fit the exact make and

model year of your axle. This kit is designed for direct bolt-on
installation to 1994 through 2004 model year Ford Mustang
series hubs.

• Verify your wheel clearance using Figure 2.

• Verify that the factory axle and stud pattern matches the stud

hole pattern in the hats supplied with this kit. Axles that have
been modified with different size studs or lug patterns may
require modifications to the hat that must be performed by a
qualified machinist.

Disassembly
• Disassemble the original equipment rear brakes: Raise the

rear wheels off the ground and support the rear suspension
according to the vehicle manufacturer’s instructions.

• Remove the wheel. Loosen the four bolts from the outboard

side of the upright that holds the stock caliper mounting
bracket and lift off the bracket and stock caliper as one unit.
You may have to unbolt the stock caliper from the caliper
bracket before removal. Then slide off the rotor.

• Clean, de-grease the stock hub while removing any nicks or

burrs.

8.14

(206,8)

5.54 (140,6)
6.04 (153,3)

6.64

(168,7)

8.62

(218,9)

7.59

(192,8)

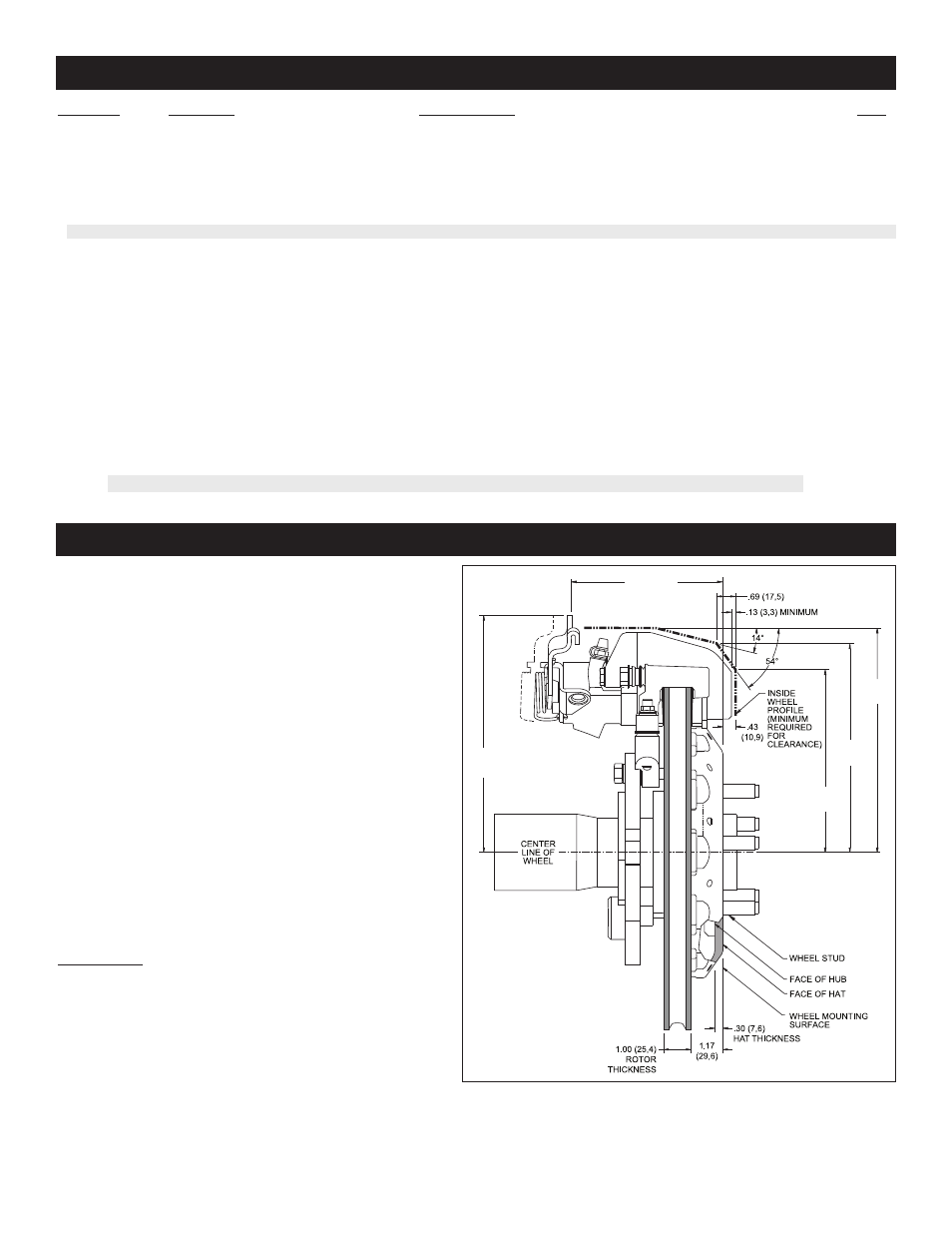

Figure 2. Wheel Clearance Diagram

1
2
3
4
5
6

6A

7
8
9

10

11

12
13
14
15
16

2
4
4
4
4
2
2
2

24
24

2
4
4
4
8
1

12

250-10138
230-9458
240-0476
300-8359
240-3902
160-7597/98
160-8006/07
170-6837
240-11240
230-6737
120-10110/11-BK
230-9183
240-10190
230-9078
240-1159
150-9184K
240-1848

Bracket, Caliper Mounting
Bolt, 7/16-14 x 1.50 Long
Washer, .477 I.D. x .922 O.D. x .063 Thick
Sleeve, .437 I.D. x .479 O.D. x .500 Long
Shim, .016 Thick
Rotor, SV-GT 1.00” X 12.88” Dia, 12 x 8.75” Bolt Circle (one each, right and left)
Rotor, SRP Drilled and Slotted (one each, right and left)
Hat, 5 x 4.50/4.75, .875 Offset, 12 x 8.75 Bolt Circle
Washer, .265 I.D. x.500 O.D. x .063 Thick
Bolt, 1/4-20 x 1.00 Long, 12 Point
Caliper, CPB, 41 mm (one each, right and left)
Nut, 3/8-24, Self-Locking, 12 Point
Washer, .391 I.D. x .625 O.D. x .063 Thick
Stud, 3/8-16 x 3/8-24 x 2.500 long (pre installed in bracket)
Shim, .035 Thick
Pad, BP-10, Axle Set
Shim .030 Thick

ITEM NO.

PART NO.

DESCRIPTION

QTY

NOTES: Part Number 230-4572 Rotor Bolt Kit, includes P/N 230-6737 and 240-11240

Part Number 230-10171 Bracket Bolt Kit, includes P/N 230-9458, 240-0476, 240-3902, 240-1848 and 300-8359
Part Number 250-10157 Caliper Bracket Kit, includes P/N 230-9078, 230-9183, 240-1159, 240-10190 and 250-10138
Item 6A is an optional item and is included with the “-”D” kits. Add “-D” to end of part number when ordering
