General Information and Assembly Instructions
Installation of this component should ONLY be performed by persons experienced in the installation and proper operation of disc brake
systems. Before assembly begins, familiarize yourself with the following procedure to ensure a trouble-free installation.
Features:
•Adjustable pedal foot pads
•Lightweight construction.
•High strength computer design.
•Includes brake balance bar and clevis.
•Brake and clutch pedals have 6.25:1 ratio.
•High strength steel master cylinder mounting studs.
•Easy mounting location.
•Stainless steel foot pads.
•Wilwood’s own Platinum-E coat finish.
•Finest quality hardware.
•Keeps master cylinder away from heat source.
•Use with Wilwood compact, high volume, or combination
master cylinders.
Installation Instructions:
•Wilwood’s reverse mount dual pedal assembly can be mounted in two methods: (1) Using the four
outboard tab mounting holes, attach the pedal assembly to two sturdy beams or plates with four 5/16
inch bolts. (2) Utilize the four 1/4-20 top mount standoffs in addition to two or four 5/16 inch
outboard tab mounts. DO NOT use the four top mount standoffs by themselves. Pedal assembly
must be rigidly attached to frame and not deflect under heavy pedal forces. NOTE: Pedals must be
free from obstructions over their entire range of motion. Allow enough space so balance bar
adjustments can be made and master cylinders are accessible.
A A
VIEW A-A
.44
(11,2)
5/16-24 THD
STUD
6 PLACES
7.50 (190,5)
2.75 (69,9) 2.62 (66,6)
1.44
(36,6)
.50 (12,7) 2.63 (66,7) 2.63 (66,7)
.344 (8,7) DIA
THRU
4 PLACES
4.62
(117,3)
3.00
(76,2)
1.06
(26,9)
1/4-20 THD
x .88 DEEP
4 PLACES
8.50 (215,9)
2.25 (57,2)
2.25
(57,2)
.88 (22,4)
.50 (12,7)
1.94
(49,3)
.31
(7,9)
11.89 (301,9)
.500 (12,7)
ADJUSTABLE
LEFT TO RIGHT
FOOT
PAD
FOOT PAD DETAIL
MOUNTING SCREW
SECURE WITH
BLUE LOCKTITE
®
TORQUE: 75 ± 15 in-lbs.
(T-20 TORX DRIVE REQ’D)
Pedal Shown with Optional
Master Cylinders

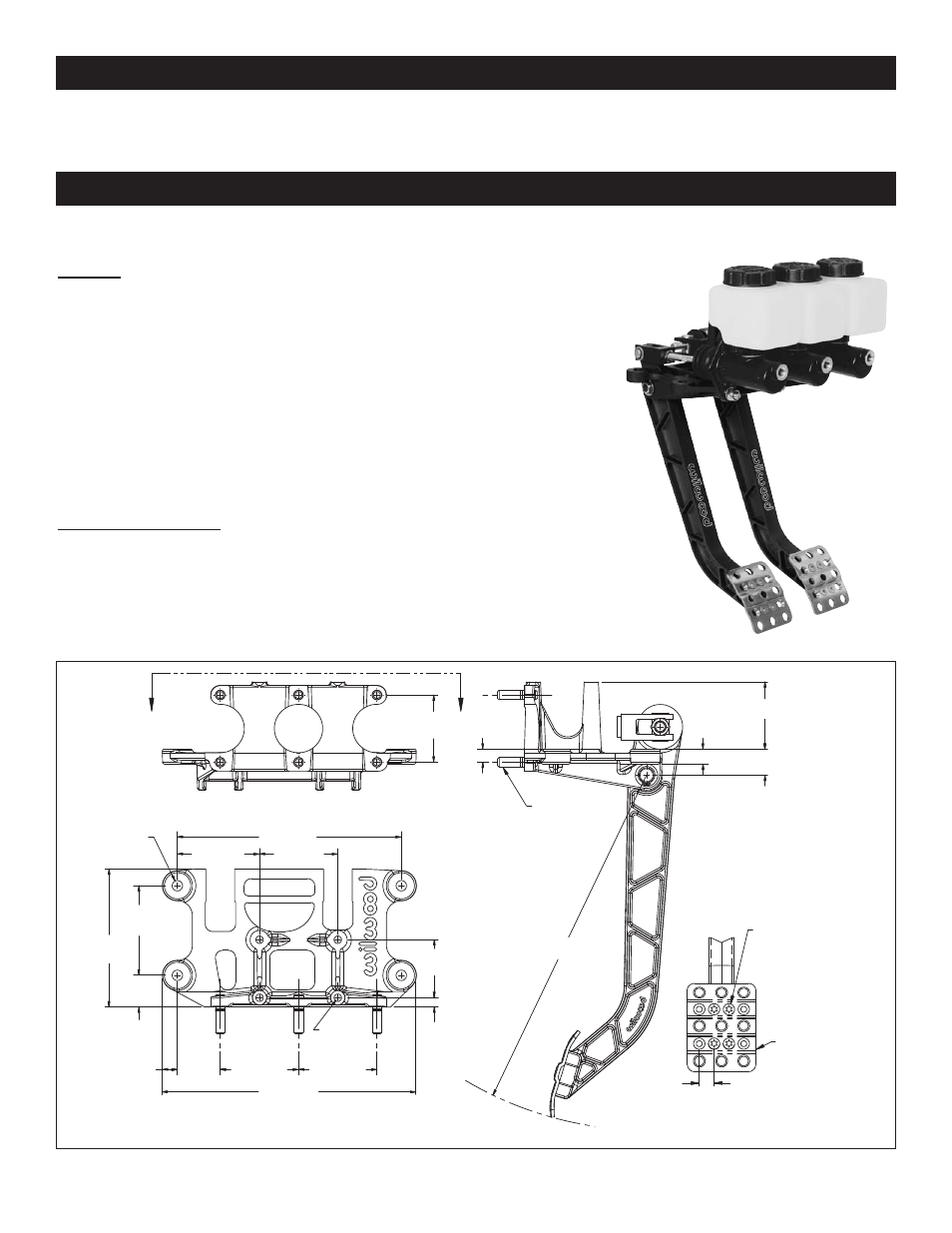

Reverse Mount Dual Pedal Assembly, Physical Dimensions (P/N 340-11299)
Page 2
Photographic Tip
Important and highly recommended: Take photos of brake system before disassembly and during the disassembly process. In the
event, trouble-shooting photos can be life savers. Many vehicles have undocumented variations, photos will make it much simpler for
Wilwood to assist you if you have a problem.
