Wilwood W6A Front Caliper and Bracket Upgrade Kit - Manual (Page 2)

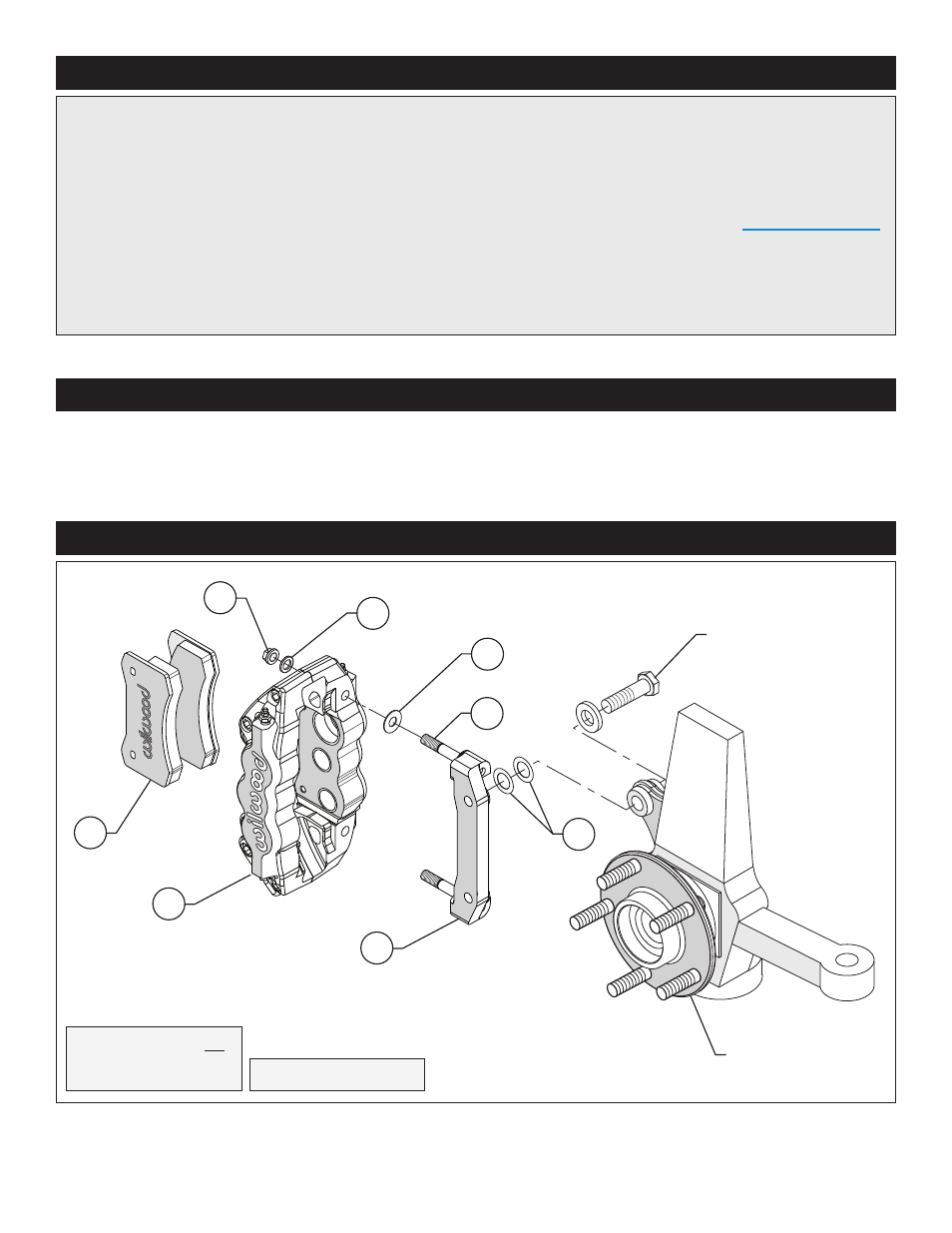

Exploded Assembly Diagram
2
7
6
5
EXISTING
HUB ASSEMBLY
ORIGINAL OEM BOLT AND
WASHER REINSTALLED
3
1
8
4
Figure 1. Typical Installation Configuration
WARNING
INSTALLATION OF THIS KIT SHOULD ONLY BE
PERFORMED BY PERSONS EXPERIENCED IN
THE INSTALLATION AND PROPER OPERATION
OF DISC BRAKE SYSTEMS.
NOTE
SPECIFIC PARTS MAY VARY FROM DIAGRAM
Important Notice - Read This First
Before any tear-down or disassembly begins, review the following information:
• This kit may fit some 17” wheels, please refer to wheel clearance diagram (Figure 2, page 3) for your specific
requirements. For ALL other wheels, consult the wheel clearance diagram (Figure 2, page 3) to determine
compatibility. Parts that have been installed may not be returned or exchanged.
• Front brake kits do not include flex lines. OEM brake lines will not adapt to Wilwood calipers. Check the
assembly instructions, or associated components section for brake line recommendations before assembly.
In addition, Wilwood offers an extensive listing of brake lines and fittings on our web site:
www.wilwood.com .
• Due to OEM production differences and other variations from vehicle to vehicle, the fastener hardware and
other components in this kit may not be suitable for a specific application or vehicle.
• It is the responsibility of the purchaser and installer of this kit to verify suitability / fitment of all components
and ensure all fasteners and hardware achieve complete and proper engagement. Improper or inadequate
engagement can lead to component failure.
Page 2
Photographic Tip
Important and highly recommended: Take photos of brake system before disassembly and during the disassembly process. In the
event, trouble-shooting photos can be life savers. Many vehicles have undocumented variations, photos will make it much simpler for
Wilwood to assist you if you have a problem.
