Wilwood Dynapro Dust-Boot Pro Series Front Brake Kit - Manual (Page 2)

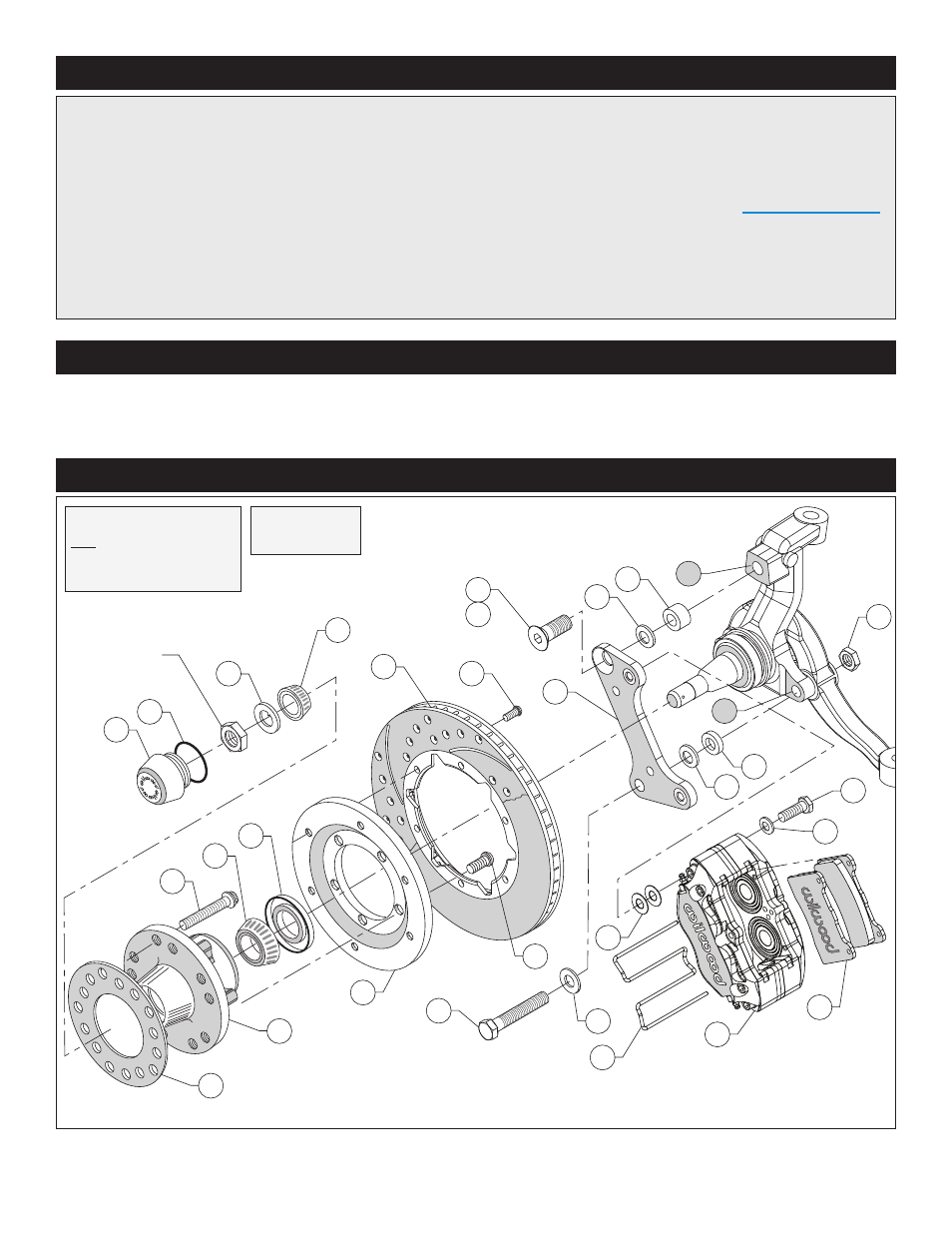

Exploded Assembly Diagram
5
8
8A
2A
3
1
2
4
6
EXISTING STEERING
ARM / SPINDLE
7
22
24
23
Z
Y
NOTE: OPTIONAL DRILLED/SLOTTED ROTOR SHOWN FOR REFERENCE PURPOSES
13
19
18
12
11
15
14
9
20
17
10
27
EXISTING
SPINDLE NUT
16
21
26
25
Figure 1. Typical Installation Configuration
WARNING
INSTALLATION OF THIS KIT SHOULD
ONLY BE PERFORMED BY PERSONS
EXPERIENCED IN THE INSTALLATION
AND PROPER OPERATION OF DISC
BRAKE SYSTEMS.
NOTE
SPECIFIC PARTS MAY
VARY FROM DIAGRAM
Important Notice - Read This First
Before any tear-down or disassembly begins, review the following information:
• Review the Wheel Clearance Diagram (Figure 2, page 4) to verify that there is adequate clearance with the
wheels you will be using with the installation.
• Front brake kits do not include flex lines. OEM brake lines will not adapt to Wilwood calipers. Check the
assembly instructions, or associated components section for brake line recommendations before assembly.
In addition, Wilwood offers an extensive listing of brake lines and fittings on our web site:
www.wilwood.com .
• Due to OEM production differences and other variations from vehicle to vehicle, the fastener hardware and
other components in this kit may not be suitable for a specific application or vehicle.
• It is the responsibility of the purchaser and installer of this kit to verify suitability / fitment of all components
and ensure all fasteners and hardware achieve complete and proper engagement. Improper or inadequate
engagement can lead to component failure.
Page 2
Photographic Tip
Important and highly recommended: Take photos of brake system before disassembly and during the disassembly process. In the
event, trouble-shooting photos can be life savers. Many vehicles have undocumented variations, photos will make it much simpler for
Wilwood to assist you if you have a problem.
