20 PNEG-1412 Two Leg Towers

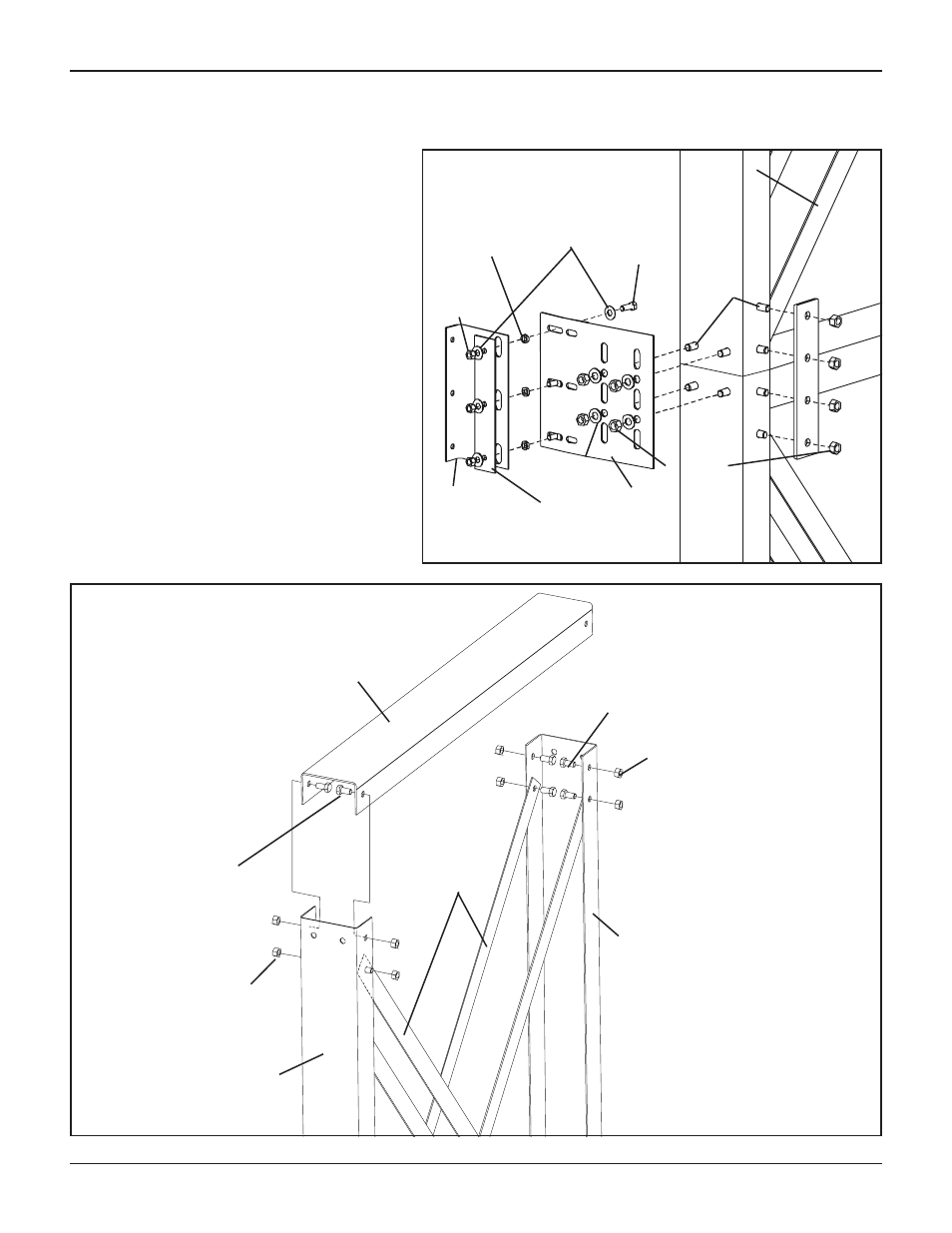

5. For “X” Bracing where a lateral bracket
is used instead of a web plate, see
Figure 8.
6. Install an “H” Channel Brace
(STC00350) to the top of the columns
and “X” bracing as shown using (4) 1/2" x
1" HHCS bolts and nuts. (See Figure 9.)
Column Joints with Diagonal “X” Bracing (cont.)
Figure 8
Figure 9
1/2" x 1"
HHCS
Bolt
(S-4492)
1/2" Hex Nut
(S-3729)
1/2" Flat
Washer
(S-2120)
Column
Lateral Bracket
(STC00355)
3/8" Flat
Washer
(S-248)
3/8" Hex
Nut (S-456)
3/8" x 1"
HHCS Bolt
(S-8671)
Diagonal “X”
Brace (STC00351)
3/8" Spacer
(STF00022)
Bin Bracket
(STF00016)
Backing Plate
(STF00021)
“H” Channel Brace
(STC00350)
Column
1/2" x 1"
HHCS Bolt
(S-4492)
1/2" Hex Nut
(S-3729)
Diagonal “X” Brace
(STC00351)
1/2" Hex Nut
(S-3729)
1/2" x 1"
HHCS Bolt
(S-4492)
