Page 35
2. Installation
PNEG-1112 Sidewall Bin Stair Assembly
35
Installation of Bottom Brace and Bracket
Bottom Brace Bracket
1. For the last stair section, attach the wall bracket to the bin wall, using the bottom hole in the wall
bracket, with one (1) 5/16'' x 1-1/4'' bin bolt and serrated flange nut.
2. The bottom brace bracket installs to the outside stair siderail and the handrail baluster on one end,
and the wall bracket and inside stair siderail on the other end.
3. Attach the inside stair siderail to the wall bracket and the bottom brace bracket using two (2)
5/16'' x 3/4'' bin bolts and serrated flange nuts.

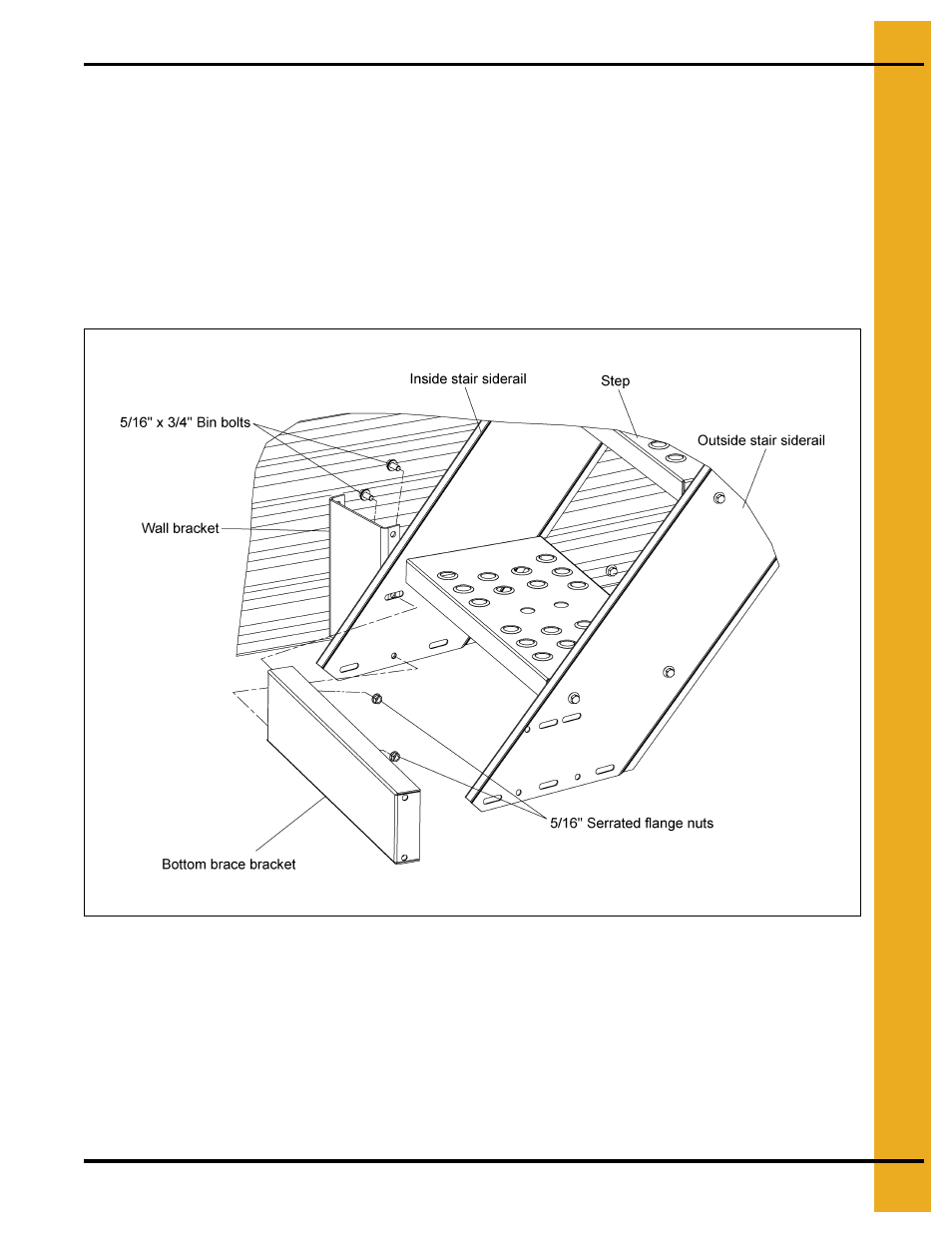

Figure 2AO
