2. Installation
PNEG-1112 Sidewall Bin Stair Assembly 33
Attaching the Outside Siderail
1. Place the inside surface of the outside stair siderail to the outside surface of the already installed
outside stair siderail.

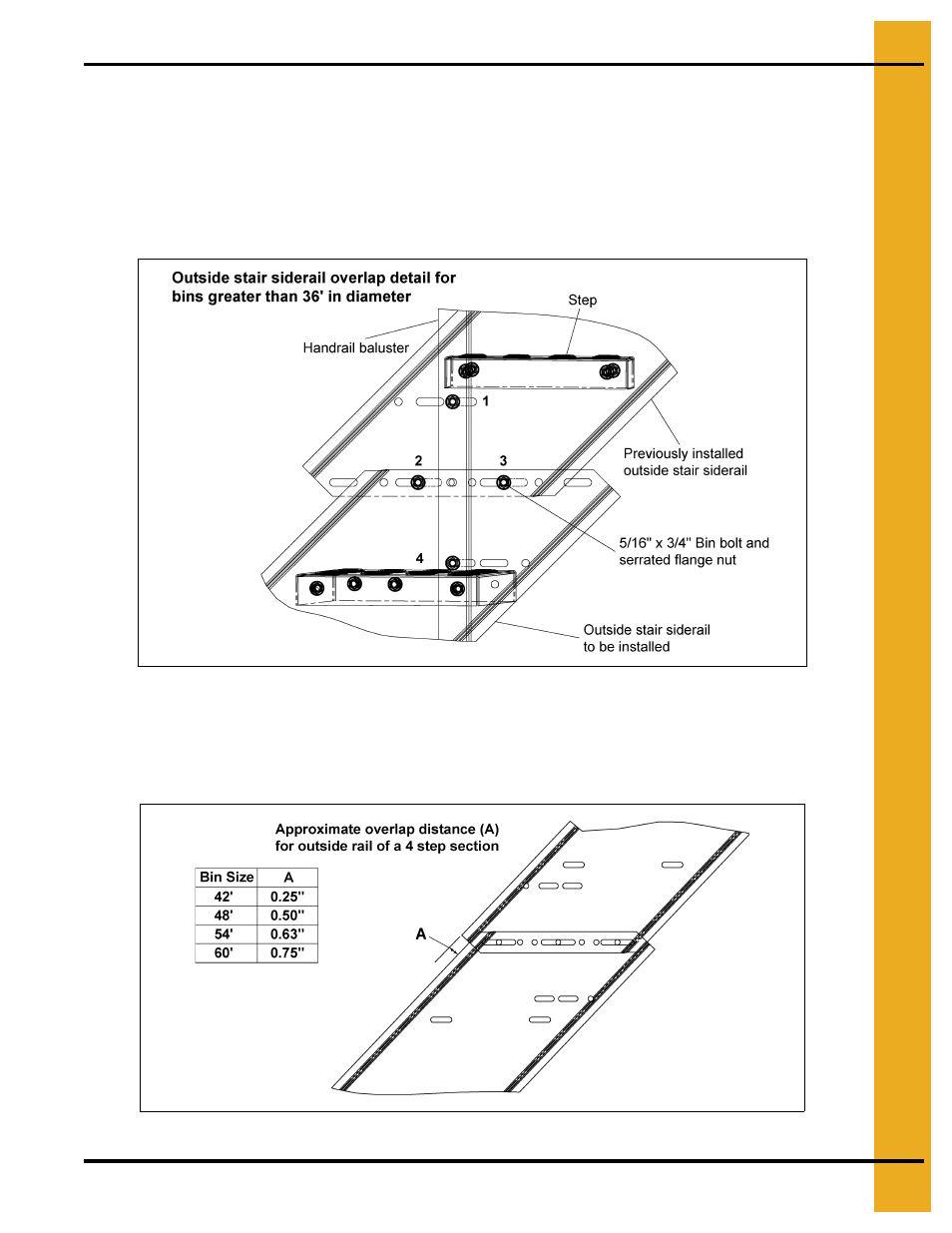

2. Using Figure 2AK and Figure 2AM , loosely bolt the two (2) outside stair siderails together with
two (2) 5/16'' x 3/4'' bin bolts and serrated flange nuts, and the outside stair siderail to the handrail
baluster with one (1) 5/16'' x 3/4'' bin bolt and serrated flange nut. Note the four (4) total attachment
points on the figures.
Figure 2AK
3. Figure 2AL shows a detail of the overlapping outside rails of a 4 step section. The figure is to be
used for 42'-60' diameter bins. The chart associated with the figure gives an approximate relation
between the two (2) outside rails. This chart is a guideline only. Overlap distances may vary in order
to keep the stairs level. Use a level to ensure the stairs are level in all directions.
Figure 2AL
