3. 30'-54' Roof Instructions

PNEG-1801 Special 30'-54' Diameter High Snow Roof Rafter Instructions

45

Special Rafter Instructions for 48' Diameter High Snow Roof (Continued)

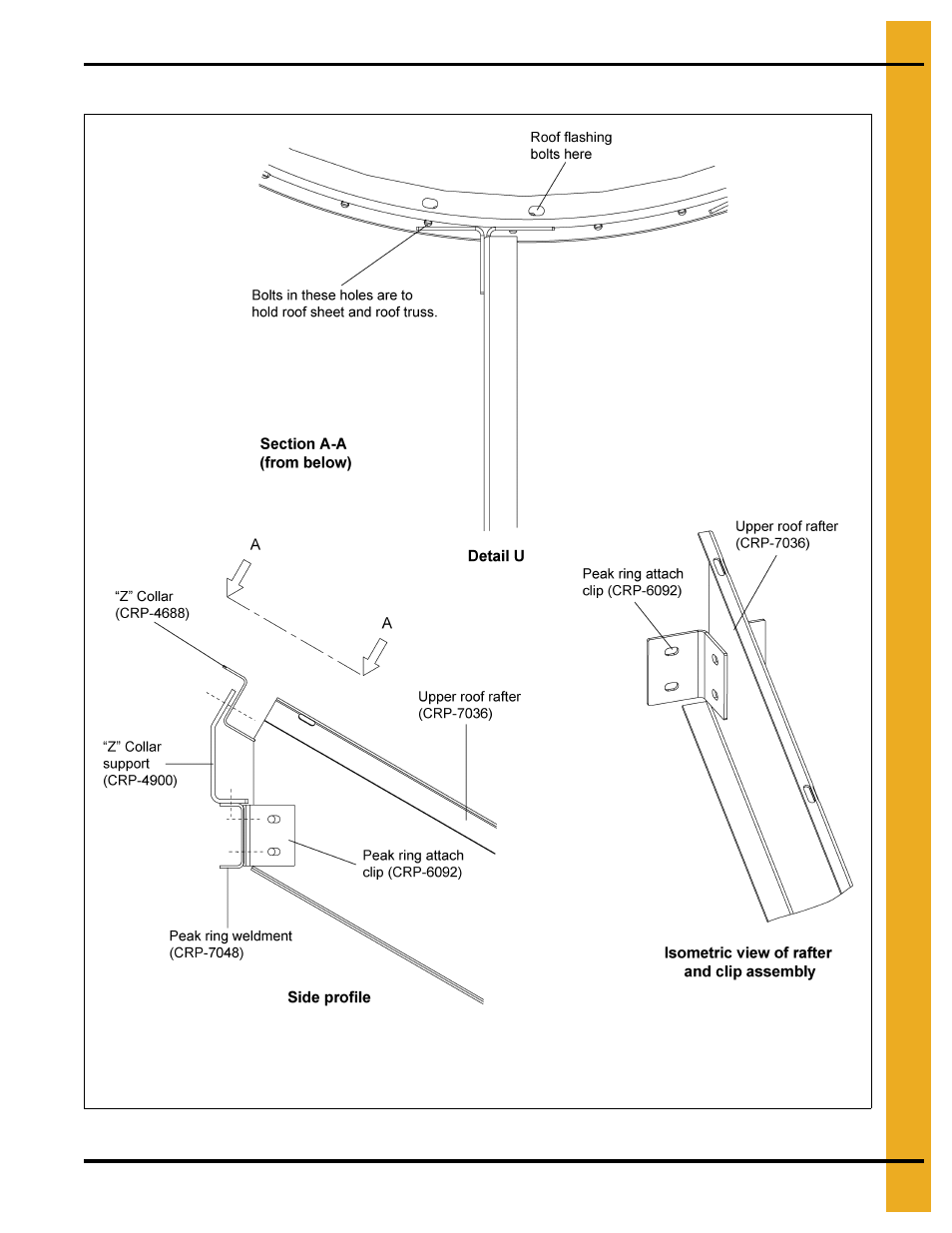

Figure 3AI Rafter to “Z” Collar Connection

See Pages 50

and 51

for special

instructions and hardware callouts.
