3. 30'-54' Roof Instructions

PNEG-1801 Special 30'-54' Diameter High Snow Roof Rafter Instructions

19

30' Diameter 60 PSF High Snow Roof Rafter Instructions

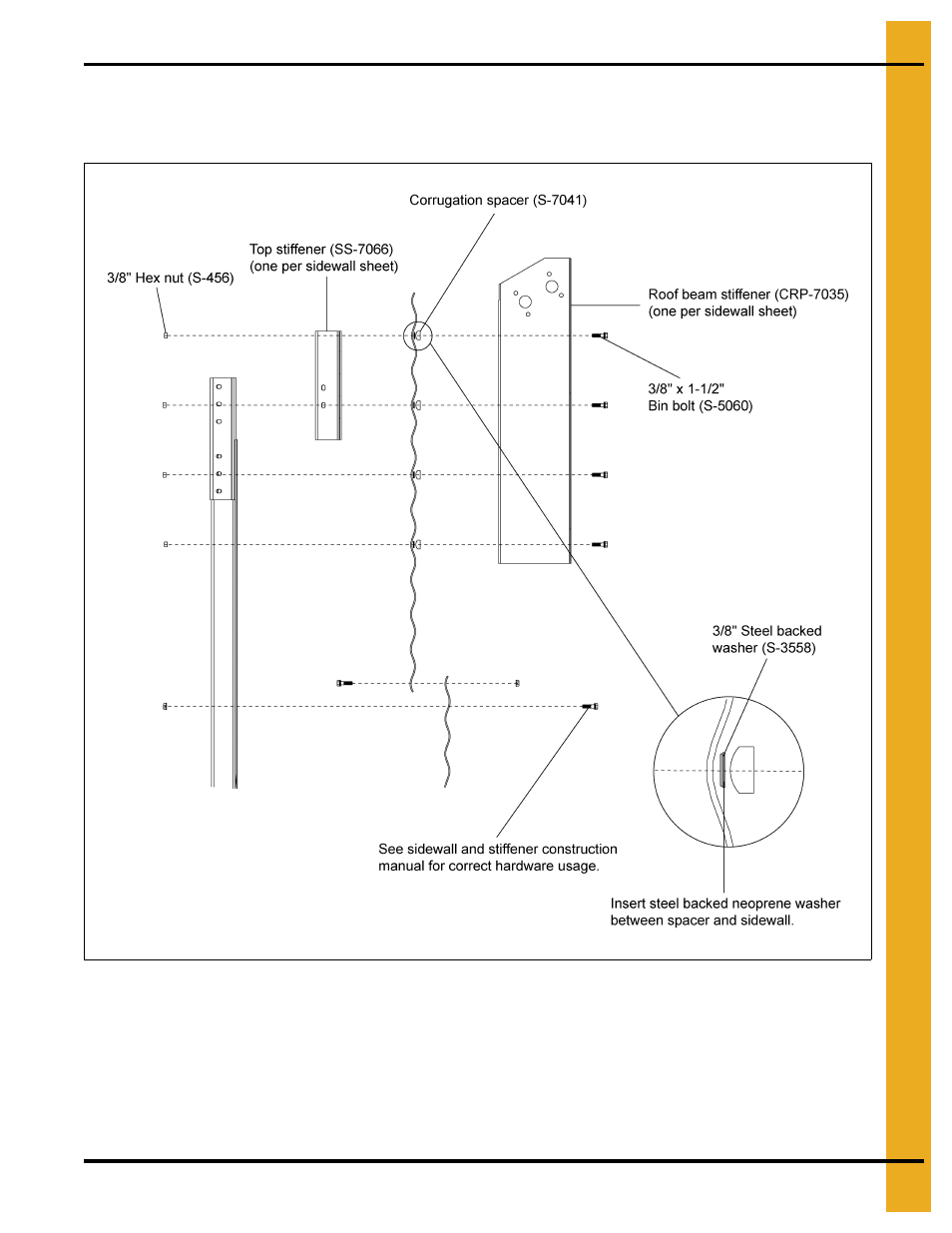

Roof Stiffener Detail 4.00'' Corrugation Outside Stiffener Only

Figure 3I

NOTE: Insert corrugation spacer (S-7041) into corrugation.
