6

How to use the DS60-112

Before making any connections, make sure that the power is

switched OFF on the DS60-112 and all other devices.

OUTPUT

L/MONO

DS60-112

DG-Stomp

INPUT

OUTPUT

DS60-112

DG-1000

INPUT

GAIN

OUTPUT

L/MONO

SLAVE

OUT

INPUT

DS60-112

DS60-112

DG-Stomp, etc.

INPUT

OUTPUT

L/MONO

R

DS60-112

DS60-112

DG-Stomp

INPUT

INPUT

L Side

R Side

LINE OUT

R

DG60FX-112

DS60-112

INPUT

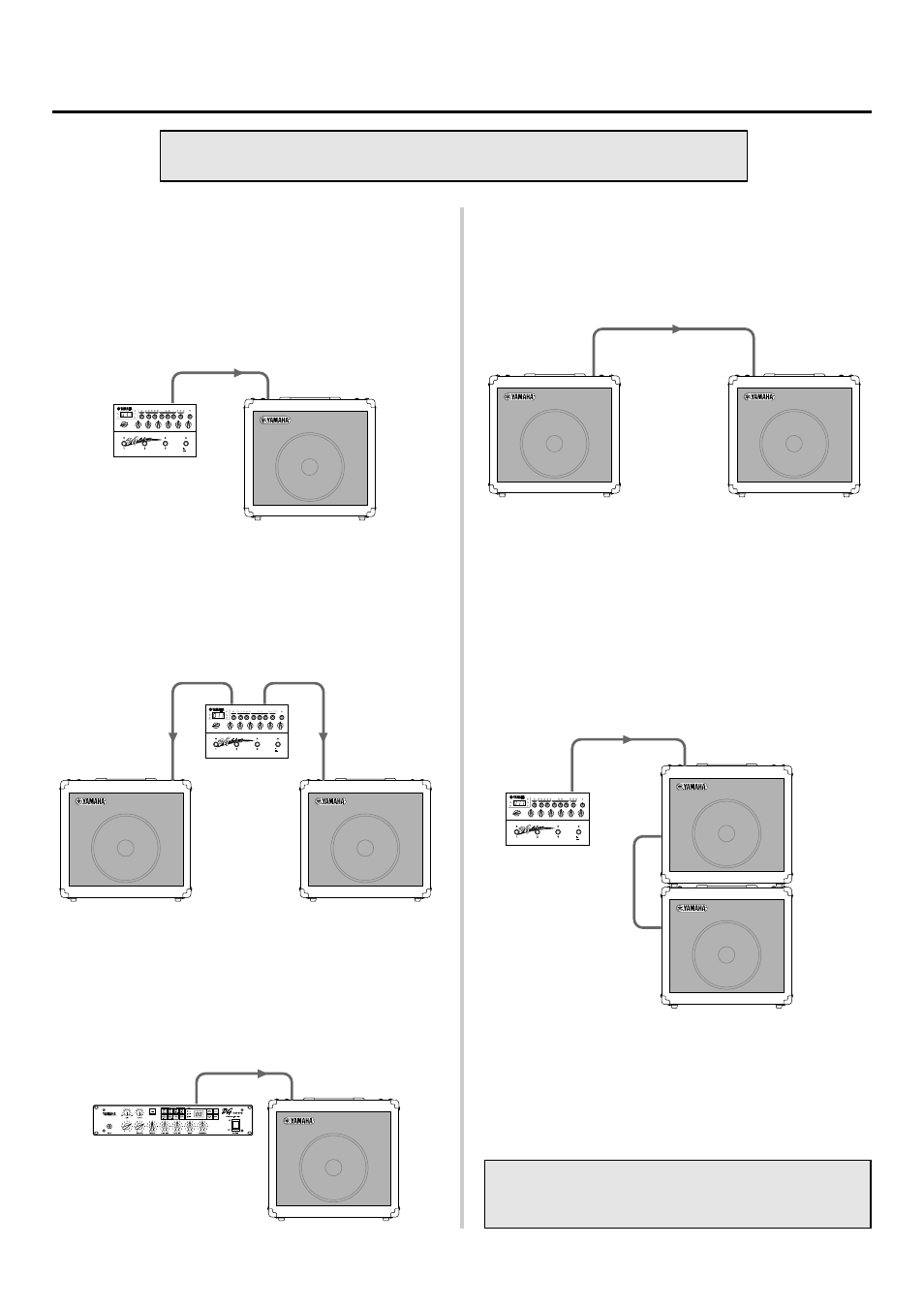

Connecting a DG-Stomp

Monaural Guitar Amplifier System

The Yamaha DG-Stomp is a guitar pre-amplifier unit with built-in effects.

Use a guitar cable to connect the DG-Stomp’s OUTPUT L/MONO jack

to the DS60-112’s INPUT jack to create a 60-watt guitar amplifier sys-

tem.

* Make sure the DG-Stomp’s Speaker Simulator is set to OFF.

Stereo Guitar Amplifier System

Since the DG-Stomp is equipped with stereo outputs, it is possible to set

up a stereo (60W x 60W) guitar amplifier system by connecting a DS60-

112 to the DG-Stomp’s OUTPUT L/MONO jack, and another DS60-112

to the DG-Stomp’s OUTPUT R jack.

Connecting a DG-1000

The Yamaha DG-1000 is a guitar pre-amplifier. Use a guitar cable to

connect the DG-1000’s OUTPUT jack to the DS60-112’s INPUT jack to

create a 60-watt guitar amplifier system.

Connecting a DG60FX-112

Since the DG60FX-112’s speaker uses the same signal that is supplied

to its LINE OUT L jack, connecting the DG60FX-112’s LINE OUT R jack

to the DS60-112’s INPUT jack creates a 60W x 60W stereo guitar ampli-

fier system.

* Connecting the DG60FX-112’s LINE OUT L jack to the DS60-112’s IN-

PUT jack creates a 120W monaural guitar amplifier system.

Using Multiple DS60-112s

Connect the DS60-112’s SLAVE OUT jack to another DS60-112’s IN-

PUT jack to create a 120W high power guitar amplifier system. You can

increase the amount of power by connecting three, four, or more units in

the same manner.

Connecting Other Devices

The DS60-112 can also be used with a pre-amplifier or other device,

other than the DG-Stomp, DG-1000 or DG60FX-112. Use a guitar cable

to connect the device’s output jack to the DS60-112’s INPUT jack.

The DS60-112 is a powered speaker system de-

signed for use as an expansion speaker.

Do not directly connect a guitar to the INPUT jack.
