3. Installation
PNEG-1324 72', 75', 78', 90' and 105' Cor-Lok and Cut-Lok Flooring
17
Grain Systems Recommended Method for Full Floor
Installation (Continued)

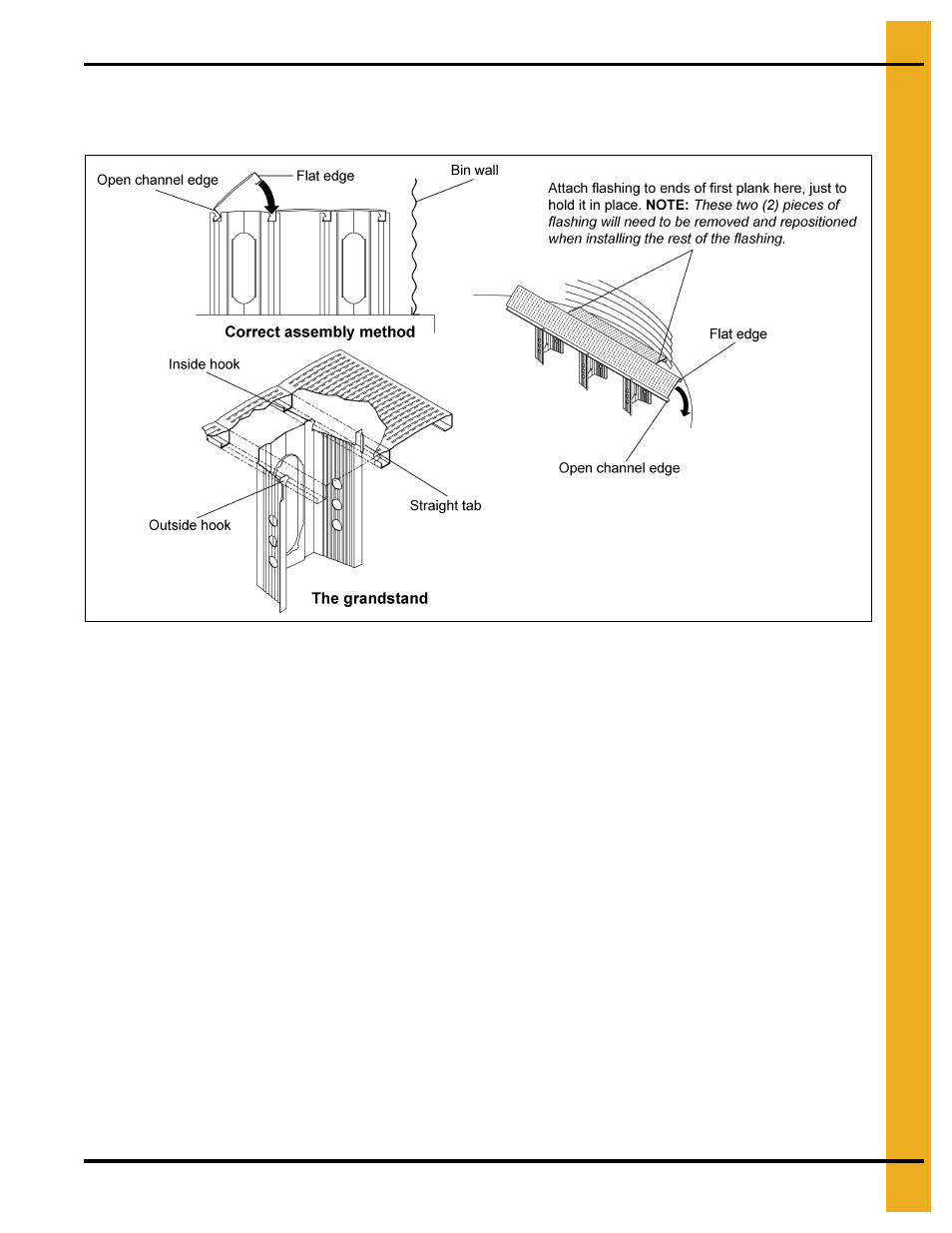

Figure 3B
5. Start at bin wall with shortest floor piece. Install support as per the spacing requirements of the
grandstand support quantity chart
. Be sure flat side of floor piece is facing bin
wall and is at designated distance from the wall. (The open channel edge of floor must be facing the
center of the bin.)
6. POSITION THE NEXT ROW OF SUPPORTS ACCORDING TO THE CHALK LINES and support
layout. The straight tab and inside hook should “snap” under the first (previous) floor piece. After the
supports in the row are correctly positioned, install the next floor piece by hooking the open channel
edge under the outside hooks of floor supports. Push down sharply on the outside edge floor piece
until it snaps into the previous floor piece.
7. Continue this procedure for the rest of the floor.
NOTE: Whenever there is more than B/3 or 4" of plank unsupported beside the bin wall, splice
location, etc., there should be a support on that plank or a support on each of planks adjacent
such that no more than B/3 or 4" is unsupported.
8. Install flat perforated flashing over the floor splice locations.
9. Heavy duty “one pass” sweeps will require installation of a track. Consult with the sweep
manufacturer on track location and requirements.
10. Floor support spacing requirements must be maintained over unloading equipment. Design and
provisions for and supply of additional supports and bridging materials, is outside the responsibility
and scope of supply of the manufacturer.
IMPORTANT: First piece of flooring must start the
proper distance from centerline of bin. Refer to floor
layout
of correct bin diameter. First piece
may have to be trimmed for proper distance.
