10. 2.66" Commercial Tank Accessories Installation
PNEG-1859 2.66" Corrugation 135' Diameter Tank with 50 PSF Snow Roof
77
Inside Ladder Placement (Continued)

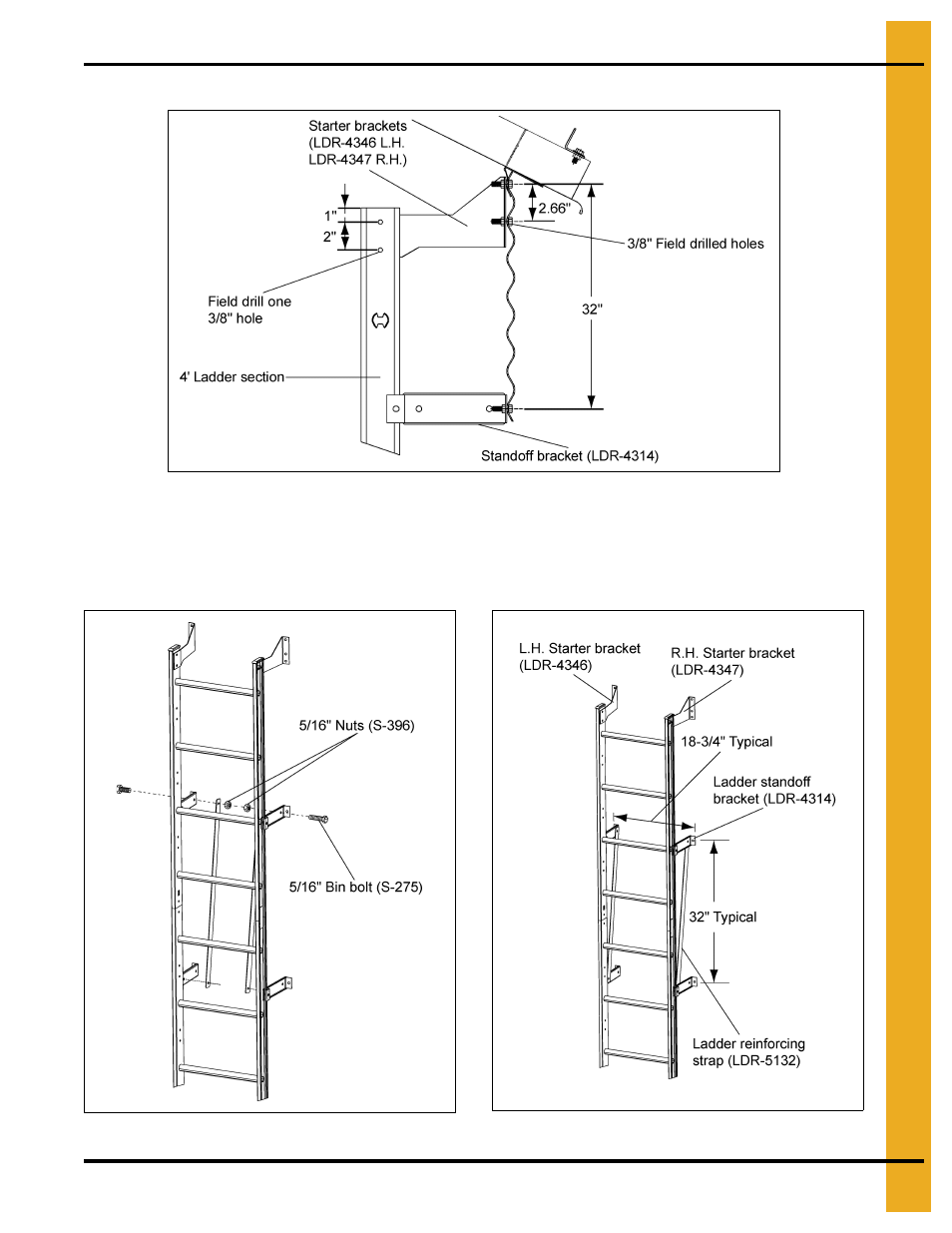

Figure 10P Outside Stiffened
NOTE: Be sure to push ladder sections up and tighten. Do not tighten ladder section splices with ladder
sections hanging under their own weight.
Now all standoff brackets and straps must be installed every 32" and attached to each 4' section required.
Figure 10Q Un-assembled Reinforcing Strap
Figure 10R Assembled Reinforcing Strap
