Grain Systems Bin Accessories PNEG-1859 User Manual
Page 45
8. 2.66" Commercial Tank Stiffener Instructions (Outside Stiffened)
PNEG-1859 2.66" Corrugation 135' Diameter Tank with 50 PSF Snow Roof
45
Special Detail for 10 Gauge and Thicker Laminated Sidewall

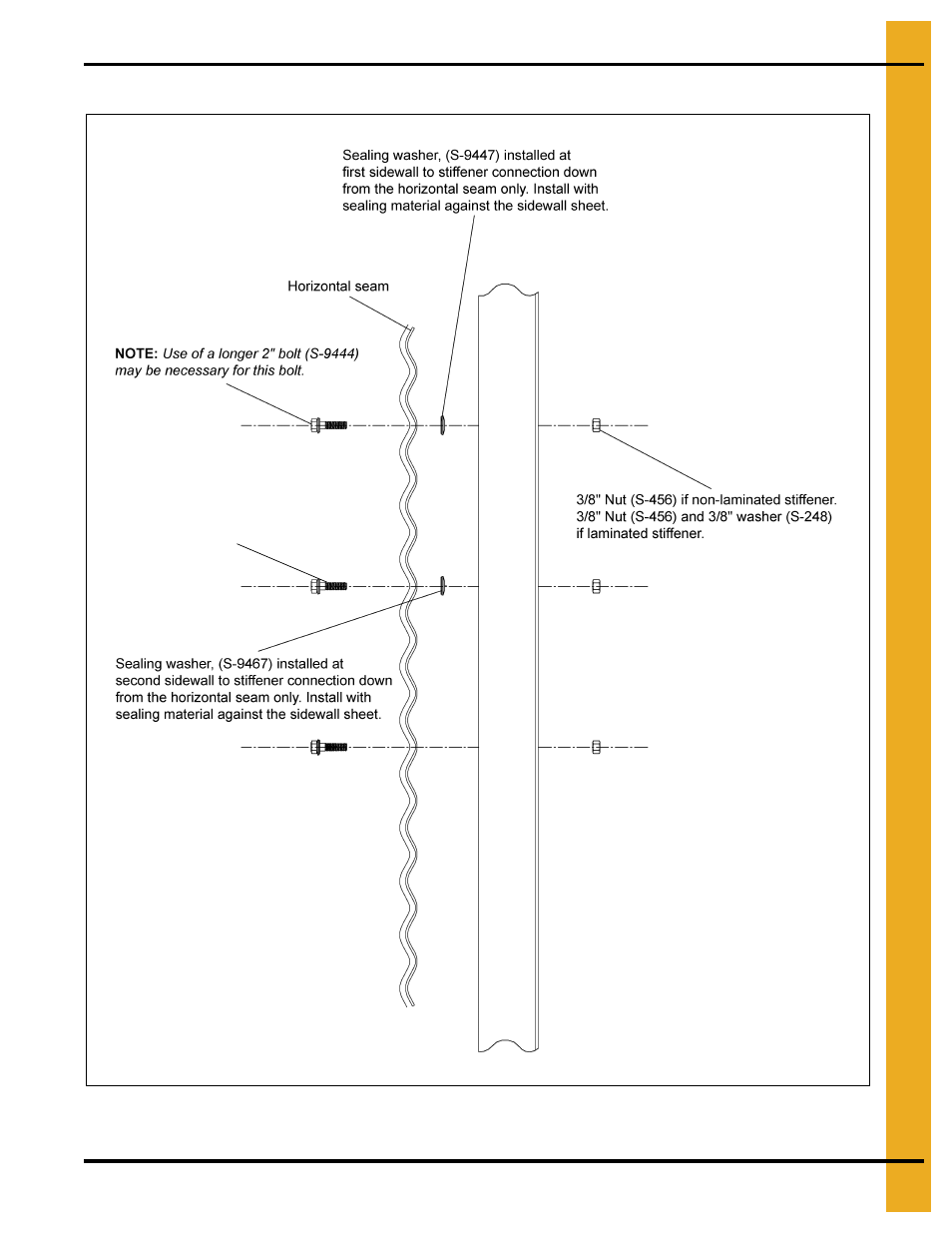

Figure 8N Outside Stiffened Laminated Stiffener to Sidewall Detail
(10 Gauge laminated sidewall or thicker only.)
See bolting requirements
.
