exhaust tip and body is one (1) inch.
19.
Tighten the head pipe v-band
clamp to 12 ft-lbs (if previously
loosened).
20.
Adjust each of the pipes to
ensure that all of the hanger pins
are parallel with the frame mounted
pins and that the rubber hangers are

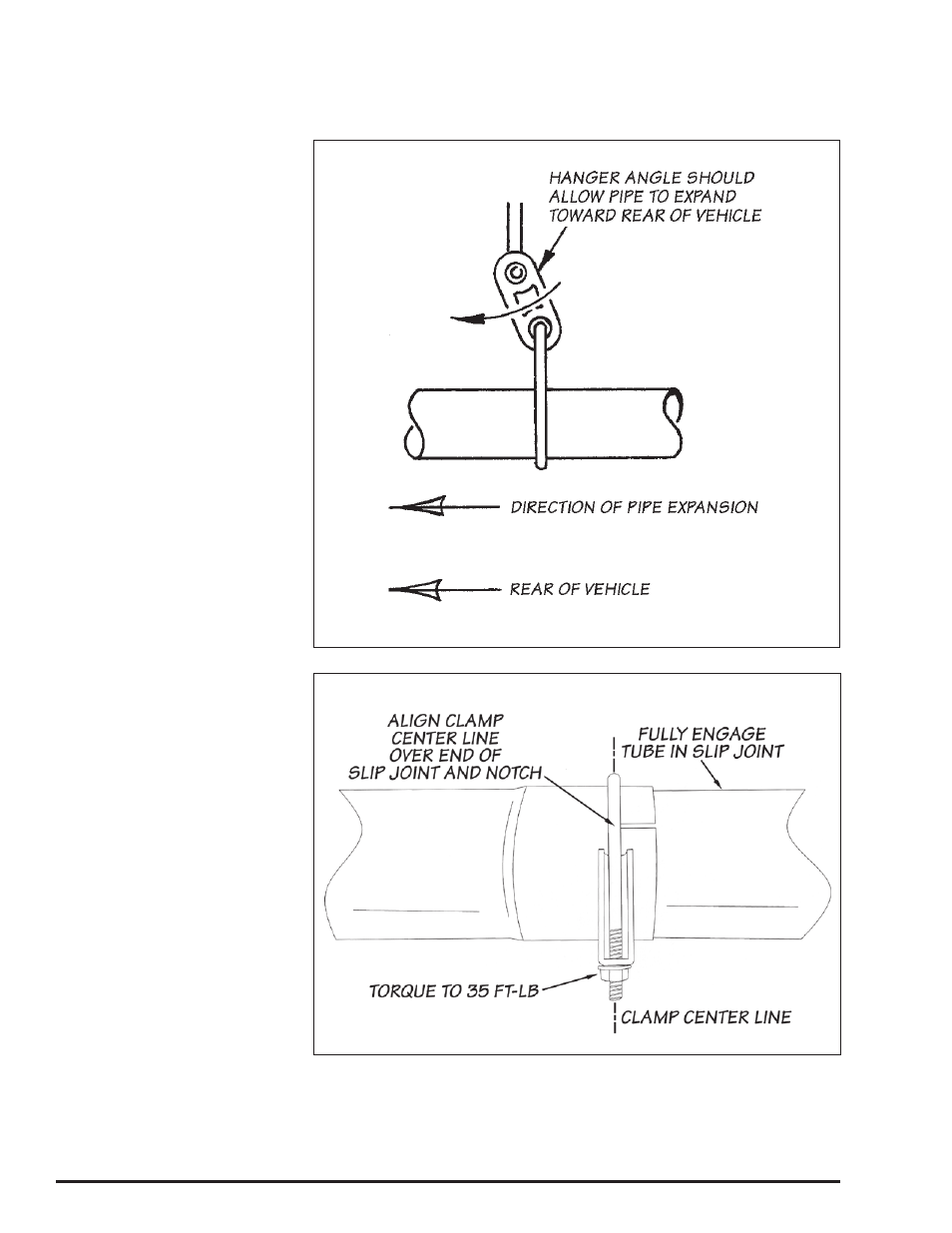

all positioned slightly forward (See
Figure 2). The amount of forward
angle on the rubber hangers should
increase the farther downstream the
hanger is positioned.
This allows the hangers to be
properly positioned once the
exhaust system reaches operating
temperature.
21.
Install the exhaust clamp at
each of the three (3) joints. Figure
3 illustrates the proper location of
an exhaust clamp on a tubing joint.
Torque the nuts on each of the
exhaust clamps to 35 ft-lb. Note: If a
combination combination hanger/
clamp is utilized, evenly torque nuts
to 35 ft-lb. The clamps only need
to be tight enough to form a seal
and hold the pipes together. Over
tightening the clamps may cause the
system to leak due to the pipe being
crimped.
22.
Install exhaust tip by sliding it
over the outlet of the tailpipe. The
tip should be positioned so that
the drain hole is facing downward
and the outlet of the exhaust tip
is approximately one (1) inch past
the outlet of the tailpipe. NOTE: On
vehicles with dual rear wheels, the
outlet of the tip should be placed
approximately 3.5 inches past the
outlet of the tailpipe. Torque the
band clamp to 35 ft-lb.
23.
Remove the protective wrapping
from the polished exhaust tip.
24.
The Monster exhaust system
installation is now complete.
-END, SEcTION 1-
Figure 2
Figure 3
