LEDC12

V. 01 – 28/03/2013

5

©Velleman nv

Step 5 – Reconnect the connector cable
 Make sure the connector is fully opened.

 Insert the cable and close the connector.


You can now close the touch panel.

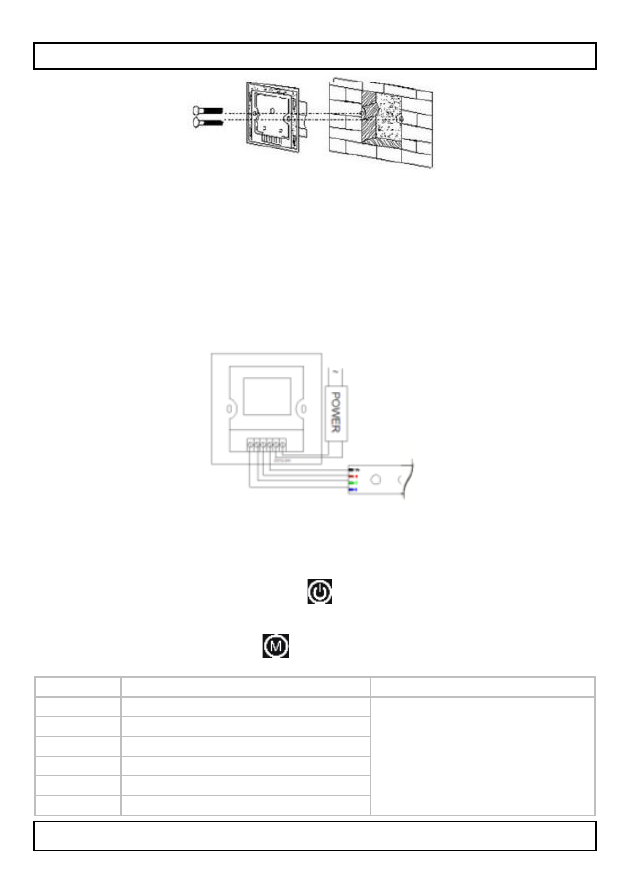

5. Wiring
Wire the controller as follows:

6. Operation
On/Off
To turn the lights on or off, press

.

RGB mode
 With the lights on, press

to select a mode.

The available patterns are:
Mode

Function

Comment

1

Static red

Brightness is

adjustable, speed is

not adjustable.

2

Static blue

3

Static purple

4

Static green

5

Static yellow

6

Static cyan
