2
3
1
7
6
➤ ➤
➤
➤
➤
➤
➤
➤
4
5
➤
➤
➤ ➤
➤

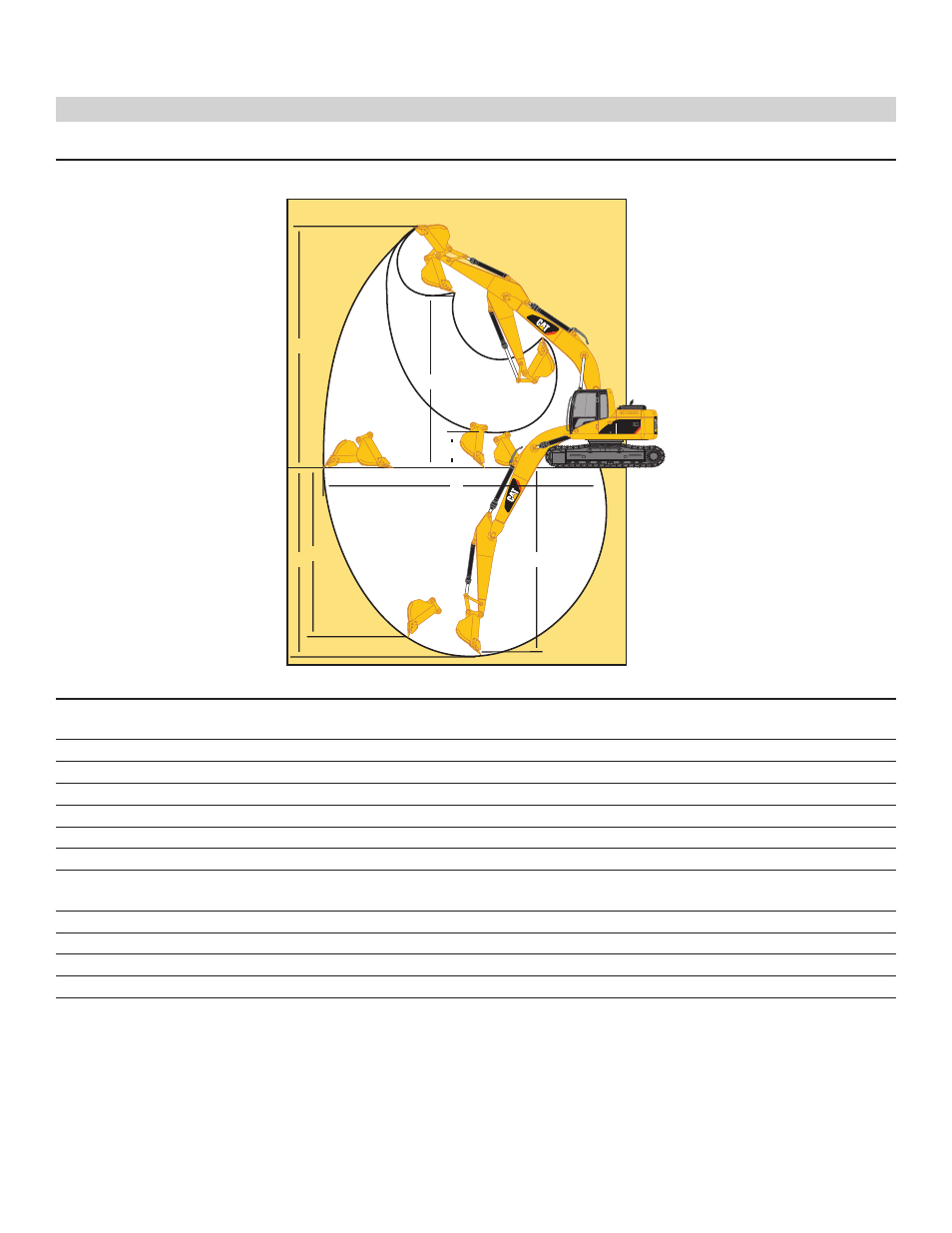

Working Ranges
All dimensions are approximate.
Boom Reach Reach Reach
4.3 m (14'1") 4.3 m (14'1") 4.3 m (14'1")
Stick 2.25 m (7'5")* 2.6 m (8'6")** 2.8 m (9'2")**
Bucket 0.52 m 3 (0.68 yd 3 ) 0.40 m 3 (0.53 yd 3 ) 0.40 m 3 (0.53 yd 3 )
1 Maximum Digging Depth 5040 mm (16'6") 5390 mm (17'8") 5590 mm (18'4")
2 Maximum Reach at Ground Level 7700 mm (25'3") 7900 mm (25'11") 8100 mm (26'7")
3 Maximum Loading Height 5450 mm (17'11") 5640 mm (18'6") 5770 mm (18'11")
4 Minimum Loading Height 1880 mm (6'2") 2200 mm (7'3") 1340 mm (4'5")
5 Maximum Depth Cut for 4300 mm (14'1") 4720 mm (15'6") 4960 mm (16'3")
2440 m (8'0") Level Bottom
6 Minimum Front Swing Radius 2450 mm (8'0") 2480 mm (8'2") 2560 mm (8'5")
7 Maximum Vertical Wall Digging Depth 4460 mm (14'8") 4770 mm (15'8") 4980 mm (16'4")
8 Maximum Cutting Height 7800 mm (25'7") 7990 mm (26'3") 8130 mm (26'8")
Stick Digging Force (SAE) 60.32 kN (13,560 lbf) 54.57 kN (12,267 lbf) 52 kN (11,690 lbf)
Bucket Digging Force (SAE) 89.73 kN (20,171 lbf) 89.92 kN (20,214 lbf) 89.74 kN (20,174 lbf)
* Measurements shown are for machines equipped with the 0.52 m 3 (0.68 yd 3 ) bucket
** Measurements shown are for machines equipped with the 0.40 m 3 (0.53 yd 3 ) bucket
All measurements are approximate
13
