17 324D FM Forest Machine specifications
1 2
2
6
7
9
8
10
6
7
4
5
4
3
2
6
7
4
324D FM General Forestry HW GF
1 Shipping height. (All risers with cab tilted) 3310 mm (10'10")
2 Boom height 3170 mm (10'5")
3 Overall height 4020 mm (13'2")
4 Shipping length 9880 mm (32'5")
5 Tail swing radius 2940 mm (9'8")
6 Length to centers of rollers 3780 mm (12'5")
7 Track length 4670 mm (15'4")
8 Ground clearance 710 mm (2'4")
9 Track gauge 2920 mm (9'7")
10 Transport width with 700 mm (27.5") shoes (DG) 3620 mm (11'11")
324D FM Log Loaders Under/Under Over/Under
1 Shipping height. (All risers with cab tilted) 3310 mm (10'10") 3310 mm (10'10")
2 Boom height 2780 mm (9'1") 2760 mm (9'1")
3 Overall height 4790 mm (15'9") 4790 mm (15'9")
4 Shipping length 14 080 mm (46'2") 14 990 mm (49'2")
5 Tail swing radius 2940 mm (9'8") 2940 mm (9'8")
6 Length to centers of rollers 3780 mm (12'5") 3780 mm (12'5")
7 Track length 4670 mm (15'4") 4670 mm (15'4")
8 Ground clearance 710 mm (2'4") 710 mm (2'4")
9 Track gauge 2920 mm (9'7") 2920 mm (9'7")
10 Transport width with 700 mm (27.5") shoes (DG) 3620 mm (11'11") 3620 mm (11'11")

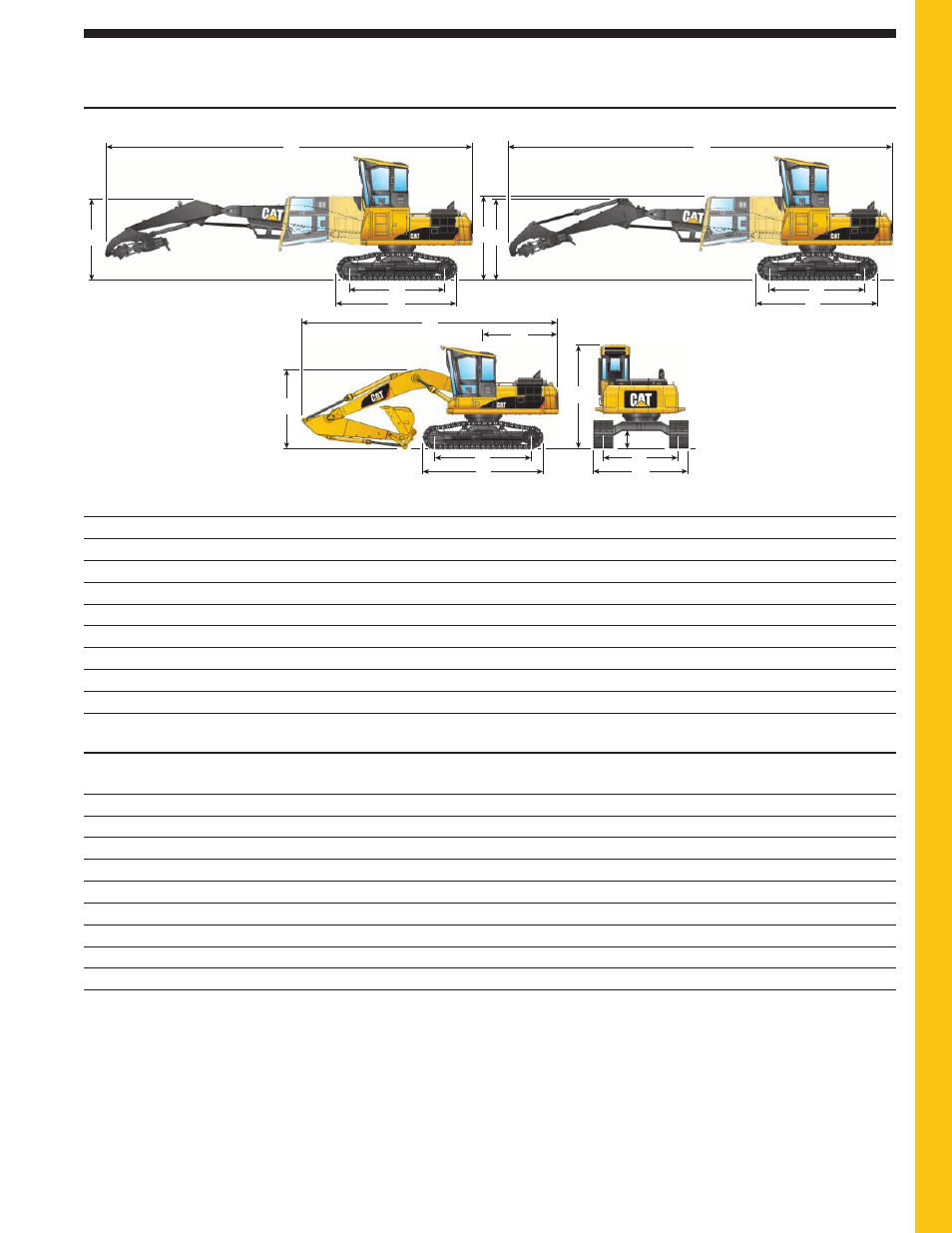

Dimensions
All dimensions are approximate.
