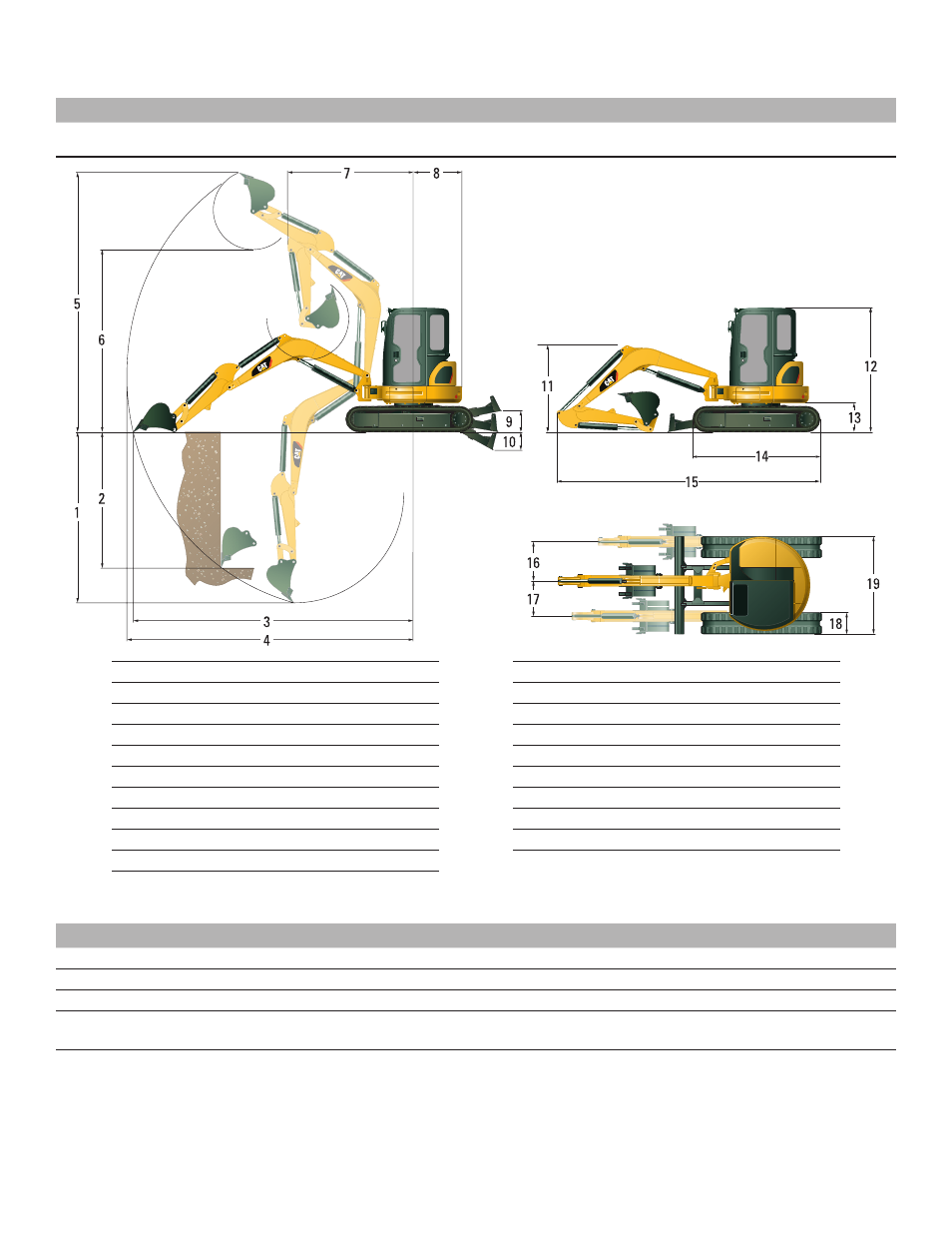

Dimensions – 305D CR
Standard Stick
Long Stick
Standard Stick
Long Stick
1
3280 mm
10'9"
3670 mm
12'1"
11
1750 mm
5'9"
2150 mm
7'0"
2
2320 mm
7'7"
2630 mm
8'8"
12
2550 mm
8'4"
2550 mm
8'4"
3
5430 mm 17'10"
5810 mm
19'1"
13
615 mm
2'0"
615 mm
2'0"
4
5600 mm
18'5"
5960 mm
19'7"
14
2580 mm
8'5"
2580 mm
8'5"
5
5250 mm
17'3"
5440 mm 17'10"
15
5180 mm
17'0"
5290 mm
17'4"
6
3720 mm
12'2"
3920 mm 12'10"
16
785 mm
2'7"
785 mm
2'7"
7
2350 mm
7'8"
2530 mm
8'3"
17
695 mm
2'3"
695 mm
2'3"
8
1100 mm
3'7"
1100 mm
3'7"
18
400 mm
1'4"
400 mm
1'4"
9
405 mm
1'4"
405 mm
1'4"
19
1980 mm
6'6"
1980 mm
6'6"
10
555 mm
1'10"
555 mm
1'10"
Lift Capacities at Ground Level *
Lift Point Radius
3000 mm (9'8")
4500 mm (14'9")
Front
Side
Front
Side
Blade Down
kg
2420
1340
1370
760
lb
5,335
2,954
3,020
1,675
Blade Up
kg
1580
1200
880
690
lb
3,483
2,645
1,940
1,521
* The above loads are in compliance with hydraulic excavator lift capacity rating standard ISO 10567:2007 and they do not exceed 87% of hydraulic lifting capacity
or 75% of tipping capacity. The excavator bucket weight is not included on this chart. Lifting capacities are for standard stick.
