Milton CAT D6N - Manual (Page 13)

13
Dimensions
(approximate)

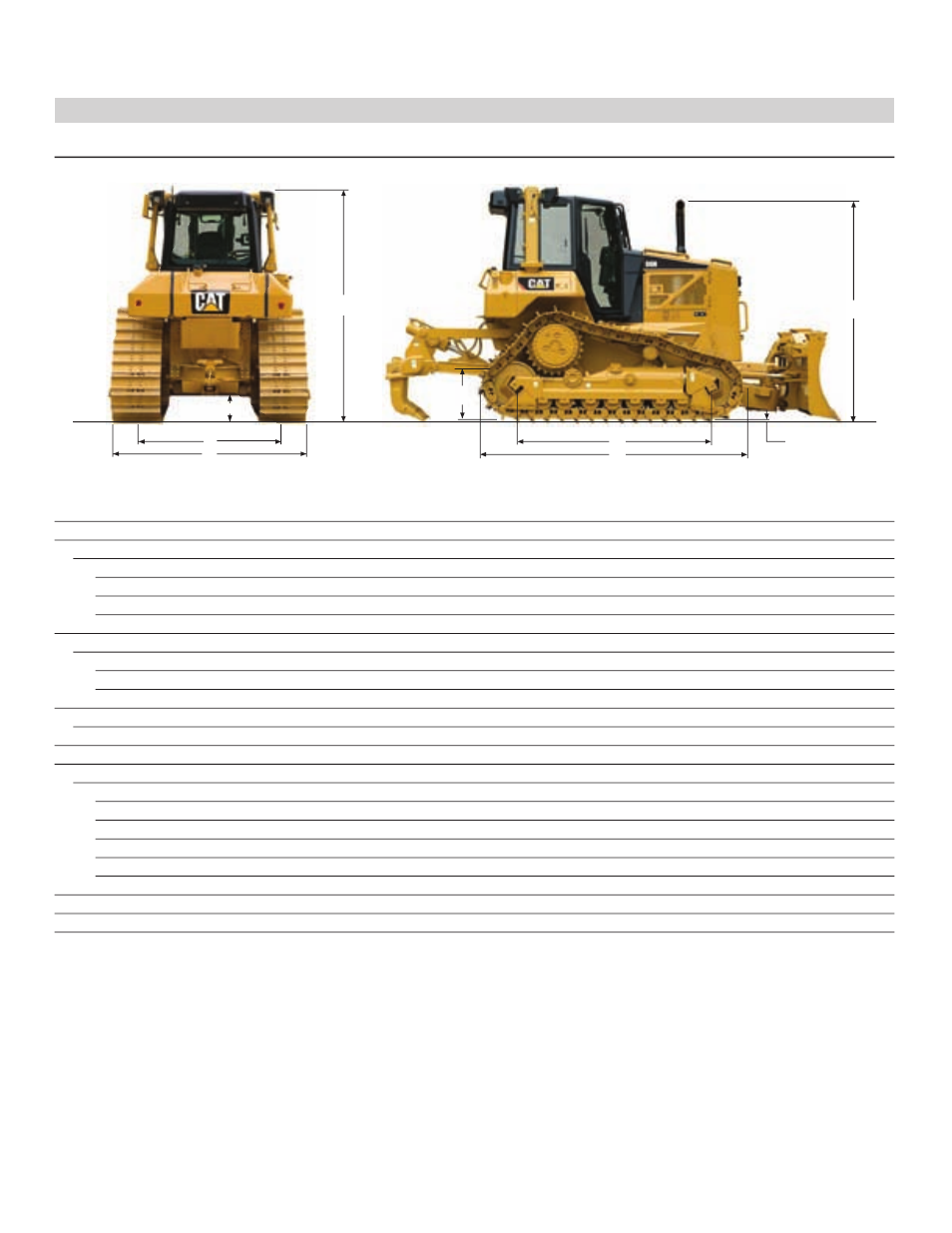

Tractor Dimensions
XL LGP
1 Track gauge 1890 mm 74.4 in 2160 mm 85 in
2 Width of tractor
With the following attachments:
Standard shoes without blade 2500 mm 98.4 in 3000 mm 118 in
Narrow shoes without blade 2450 mm 96.5 in 2870 mm 113 in
Standard shoes with VPAT blade fully angled 2972 mm 117 in 3706 mm 146 in
3 Machine height from tip of grouser:
With the following equipment:
ROPS canopy 3040 mm 119.7 in 3144 mm 123.8 in
ROPS cab 3095 mm 121.9 in 3200 mm 126 in
4 Drawbar height (center of clevis)
From ground face of shoes 595 mm 22.2 in 710 mm 28 in
5 Length of track on ground 2611 mm 102.8 in 3113 mm 122.56 in
6 Length of basic tractor (with drawbar) 3740 mm 147.2 in 4165 mm 164 in
With the following attachments, add to basic tractor length:
Ripper 1026 mm 40.4 in 1026 mm 40.4 in
PA55 winch 381 mm 15 in 381 mm 15 in
VPAT blades, straight 1163 mm 45.8 in 1204 mm 47.4 in
VPAT blade, angled 25 ° 1787 mm 70.4 in 2125 mm 83.7 in
SU blade 1417 mm 55.8 in —
7 Height over stack from tip of grouser 2979 mm 117.3 in 3083 mm 121.4 in
8 Height of grouser 66 mm 2.6 in 57 mm 2.2 in
9 Ground clearance from ground face of shoe (per SAE J1234) 394 mm 15.5 in 507 mm 20.0 in
1
2
3
9
7
4
5
6
8
