D6N Track-Type Tractor Specifications
Engine
Engine Model Cat ® C6.6 ACERT™
Flywheel Power 111.8 kW 150 hp
Net Power
– Caterpillar 111.8 kW 150 hp
Net Power
– ISO 9249 111.8 kW 150 hp
Net Power
– SAE J1349 110.4 kW 148 hp
Net Power
– EU 80/1269 111.8 kW 150 hp
Bore 105 mm 4.13 in
Stroke 127 mm 4.99 in
Displacement 6.6 L 402.75 in 3
Engine Ratings at 2200 rpm. •
Net power advertised is the power available •
at the flywheel when the engine is equipped
with fan, air cleaner, muffler and alternator.
No derating required up to 3000 m (9,840 ft)
•
altitude, beyond 3000 m (9,840 ft) automatic
derating occurs.
Transmission
1.5 Forward 3.1 km/h 1.93 mph
2.0 Forward 4.6 km/h 2.86 mph
2.5 Forward 5.7 km/h 3.54 mph
3.0 Forward 7.5 km/h 4.66 mph
3.5 Forward 10 km/h 6.21 mph
1.5 Reverse 3.1 km/h 1.93 mph
2.0 Reverse 5.1 km/h 3.17 mph
2.5 Reverse 6.4 km/h 4 mph
3.0 Reverse 8.6 km/h 5.34 mph
3.5 Reverse 11.6 km/h 7.21 mph
1.5 Forward
– Drawbar Pull 320 kN 71,939 lb
2.5 Forward
– Drawbar Pull 175 kN 39,341.6 lb
3.5 Forward
– Drawbar Pull 97 kN 21,806.5 lb
Service Refill Capacities
Fuel Tank 299 L 79 gal
Cooling System 48 L 12.68 gal
Final Drives (each) 8.5 L 2.25 gal
Hydraulic Tank 29.5 L 7.79 gal
Weights
Operating Weight
– XL 16 668 kg 36,670 lb
Operating Weight
– LGP 17 997 kg 39,593 lb
Shipping Weight
– XL 16 363 kg 35,999 lb
Shipping Weight
– LGP 17 692 kg 38,922 lb
Operating Weight: Includes EROPS, A/C, •
lights VPAT dozer, transmission, drawbar,
engine enclosure, 3-valve hydraulics,
100% fuel, and Cat Comfort Series Air
Suspension Seat and operator.
Shipping Weight: Includes EROPS, A/C,
•
lights VPAT dozer, transmission, drawbar,
engine enclosure, 3-valve hydraulics,
5% fuel, and Cat Comfort Series Air
Suspension Seat.
1.5 2.0 2.5 3.0 3.5
0 2 4 6 8 10
0 1 2 3 4 5 6 7
km/h
mph
0
80
0
20
40
60
300
200
100
Drawbar Pull
Torque Rise
lb x
1000
kg x
1000

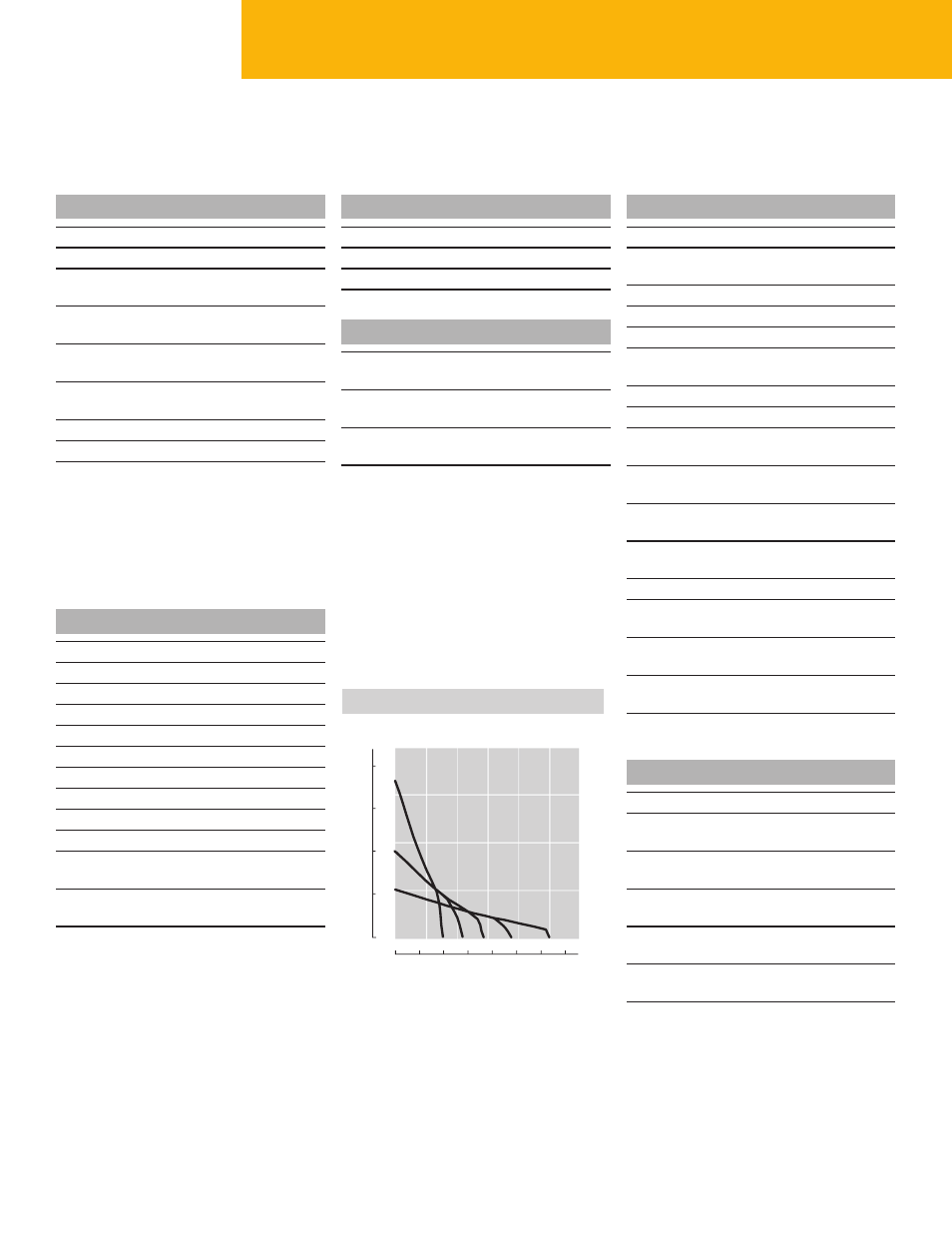

D6N Drawbar Pull
Speed
The direct injection electronic fuel system
provides a controlled fuel delivery increase
as the engine lugs back from rated speed.
This results in increased horsepower below
rated power. A combination of increased
torque rise and maximum horsepower improves
response, provides greater drawbar pull and
faster dozing cycles.
Undercarriage
Width of Shoe – XL 610 mm 24.01 in
Width of Shoe
– LGP 840 mm 33.07 in
Shoes/Side – XL 40
Shoes/Side – LGP 46
Grouser Height – XL 66 mm 2.6 in
Grouser Height
– LGP 57 mm 2.2 in
Track Gauge – XL 1890 mm 74.4 in
Track Gauge – LGP 2160 mm 85.03 in
Track on Ground
– XL 2611 mm 102.8 in
Track on Ground
– LGP 3113 mm 122.56 in
Ground Contact
Area – XL 3.18 m 2 4,929 in 2
Ground Contact
Area – LGP 5.23 m 2 8,107 in 2
Ground Pressure 51.6 kPa 7.48 psi
Ground Pressure
– XL 52.3 kPa 7.59 psi
Ground Pressure
– LPG 34.4 kPa 7.63 psi
Track Rollers/Side
– XL 7
Track Rollers/Side
– LGP 8
Blades
Blade Type VPAT, SU
XL SU –
Blade Width 3154 mm 10 ft 4 in
XL VPAT–
Blade Capacity 3.18 m 3 4.16 yd 3
XL VPAT
– Blade Width 3272 mm 10 ft 9 in
XL SU –
Blade Capacity 4.28 m 3 5.6 yd 3
LGP VPAT–
Blade Capacity 3.16 m 3 4.13 yd 3
LGP VPAT
– Blade Width 4080 mm 13 ft 5 in
