16 321D LCR Hydraulic Excavator specifications

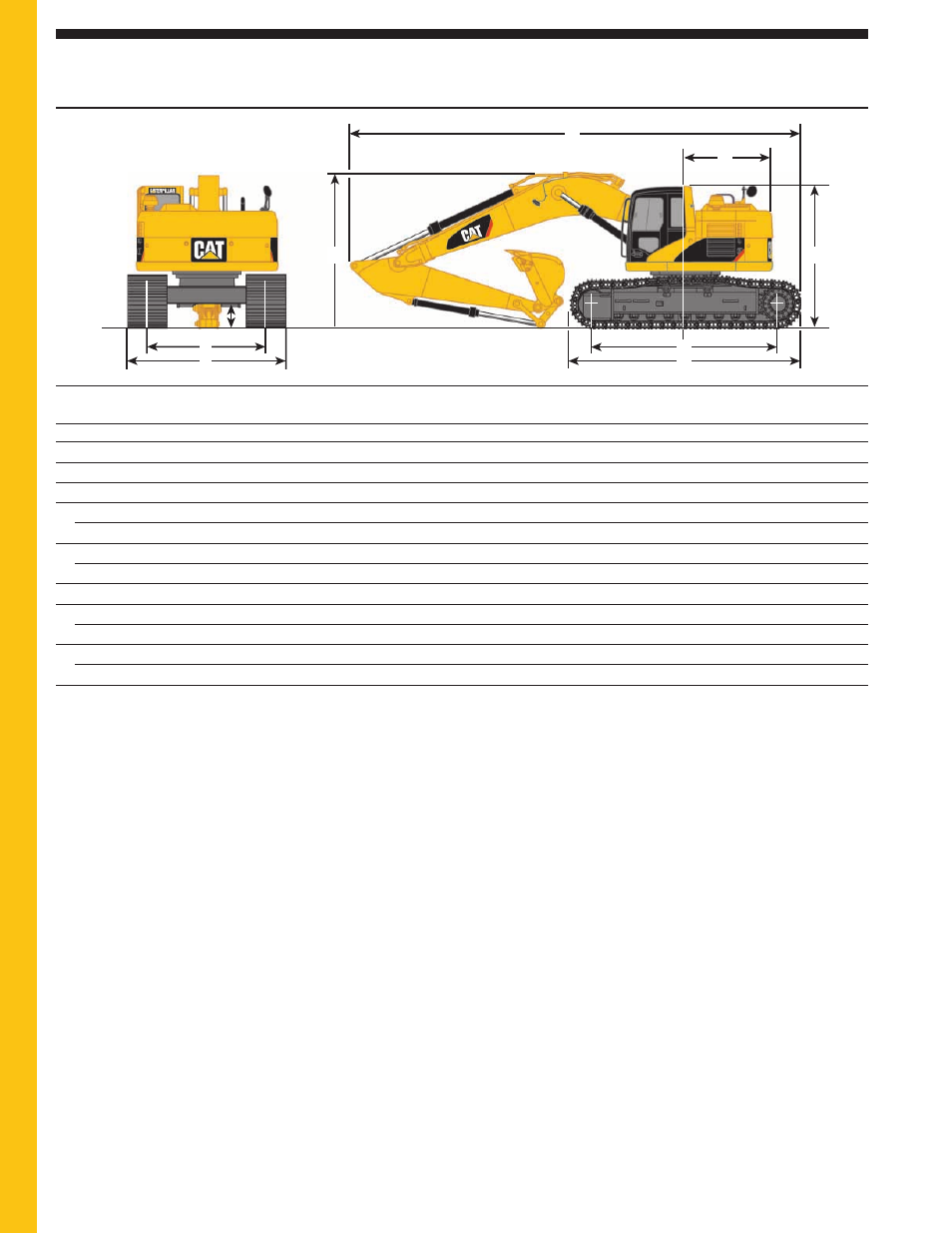

Dimensions
All dimensions are approximate.
Boom Options Reach — Reach —
5.68 (18'7") Stick 5.68 (18'7") Stick
Stick Options R2.9B1 m (9'7") Std/SA R2.5B1 m (8'2") Std/SA
1 Shipping Height 3030 mm (9'11") 3030 mm (9'11")
2 Shipping Length 8880 mm (29'2") 8880 mm (29'2")
3 Tail Swing Radius 1676 mm (5'6") 1676 mm (5'6")
4 Length to Center of Rollers
Long 3650 mm (12'0") 3650 mm (12'0")
5 Track Length
Long 4455 mm (14'7") 4455 mm (14'7")
6 Ground Clearance 450 mm (1'6") 450 mm (1'6")
7 Track Gauge
Long 2380 mm (7'10") 2380 mm (7'10")
8 Transport Width 800 mm Shoes 600 mm Shoes
Long 3180 mm (10'5") 2980 mm (9'9")
9 Cab Height 2980 mm (9'9") 2980 mm (9'9")
Note: All numbers are approximate
