17

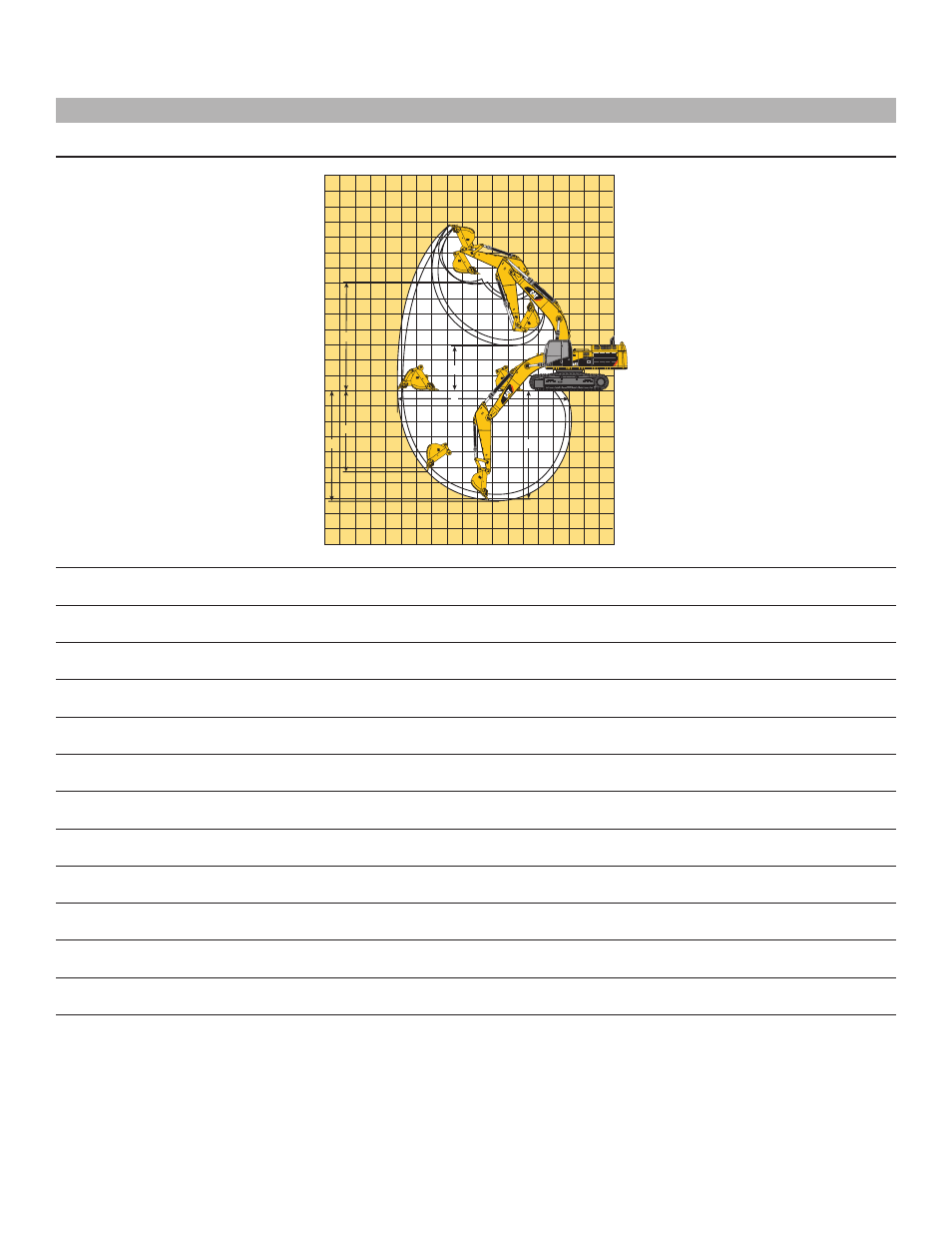

Working Ranges
Reach Boom Mass Boom
7.8 m (25'7") 7.0 m (23'0")
Stick R4.67 m R4.15 m R3.6 m R2.84 m M3.0 m M2.57 m
(15'4") (13'7") (11'10") (9'4") (9'10") (8'5")
Bucket GP GP GP GP HDR HDR
(3.8 m 3 ) (3.8 m 3 ) (3.8 m 3 ) (3.8 m 3 ) (4.6 m 3 ) (4.6 m 3 )
1 Maximum Digging Depth 9660 mm 9140 mm 8590 mm 7830 mm 7650 mm 7230 mm
(31'8") (30'0") (28'2") (25'8") (25'1") (23'9")
2 Maximum Reach at Ground Line 14 230 mm 13 690 mm 13 170 mm 12 530 mm 11 850 mm 11 460 mm
(46'8") (44'11") (43'3") (41'1") (38'11") (37'7")
3 Maximum Loading Height 8990 mm 8640 mm 8410 mm 8240 mm 7240 mm 7070 mm
(29'6") (28'4") (27'7") (27'0") (23'9") (23'2")
4 Minimum Loading Height 2230 mm 2750 mm 3300 mm 4060 mm 3060 mm 3480 mm
(7'4") (9'0") (10'10") (13'4") (10'0") (11'5")
5 Maximum Depth Cut for
2240 mm (8') Level Bottom
9550 mm 9020 mm 8460 mm 7680 mm 7510 mm 7070 mm
(31'4") (29'7") (27'9") (25'2") (24'8") (23'2")
6 Maximum Vertical Wall Digging Depth 8450 mm 7750 mm 7050 mm 6580 mm 4330 mm 3960 mm
(27'9") (25'5") (23'2") (21'7") (14'2") (13'0")
Bucket Digging Force (SAE) 297.5 kN 297.5 kN 296.9 kN 295.3 kN 342.1 kN 347.0 kN
(66,881 lb-f) (66,881 lb-f) (66,746 lb-f) (66,386 lb-f) (76,907 lb-f) (78,009 lb-f)
Bucket Digging Force (ISO) 339.4 kN 339.4 kN 338.6 kN 336.8 kN 384.0 kN 389.8 kN
(76,300 lb-f) (76,300 lb-f) (76,120 lb-f) (75,716 lb-f) (86,327 lb-f) (87,631 lb-f)
Stick Digging Force (SAE) 227.1 kN 245.6 kN 269.4 kN 299.7 kN 296.5 kN 322.7 kN
(51,054 lb-f) (55,213 lb-f) (60,564 lb-f) (67,375 lb-f) (66,656 lb-f) (72,546 lb-f)
Stick Digging Force (ISO) 234.0 kN 253.9 kN 279.3 kN 312.1 kN 305.0 kN 332.9 kN
(56,605 lb-f) (57,079 lb-f) (62,789 lb-f) (70,163 lb-f) (68,567 lb-f) (74,839 lb-f)
1
6
5
3
2
4
