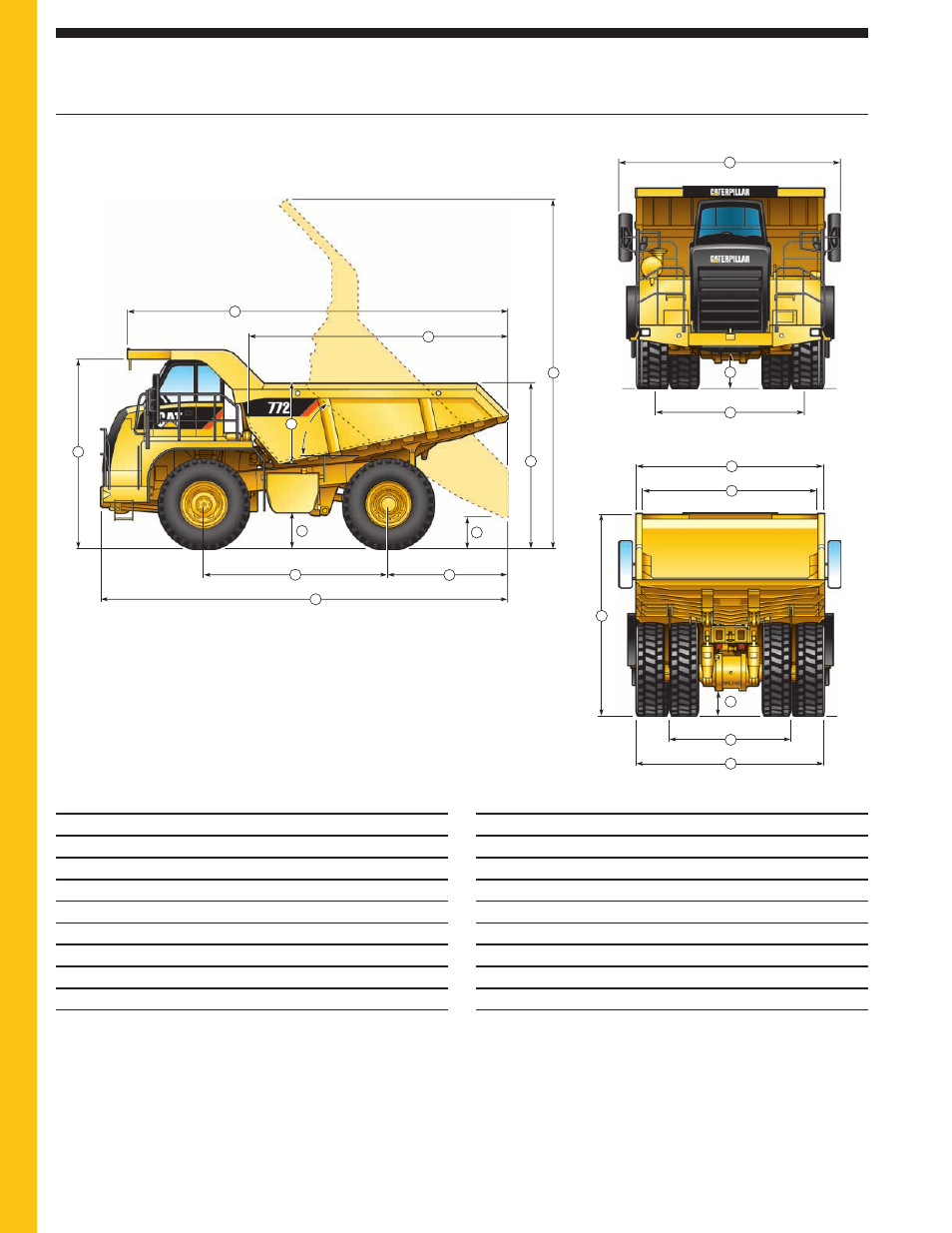

Dimensions
All dimensions are approximate.
1 Height to Top of ROPS 4093 mm 13 ft 6 in
2 Overall Body Length 8125 mm 26 ft 8 in
3 Inside Body Length 5549 mm 18 ft 3 in
4 Overall Length 8740 mm 28 ft 9 in
5 Wheelbase 3960 mm 13 ft 0 in
6 Rear Axle to Tail 2605 mm 8 ft 6 in
7 Ground Clearance 720 mm 2 ft 5 in
8 Dump Clearance 560 mm 1 ft 10 in
9 Loading Height – Empty 3550 mm 11 ft 8 in
10 Inside Body Depth – Max 1706 mm 5 ft 8 in
11 Overall Height – Body Raised 8357 mm 27 ft 5 in
12 Operating Width 4780 mm 15 ft 8 in
13 Centerline Front Tire Width 3165 mm 10 ft 5 in
14 Engine Guard Clearance 714 mm 2 ft 5 in
15 Outside Body Width 3952 mm 13 ft 0 in
16 Inside Body Width 3698 mm 12 ft 2 in
17 Front Canopy Height 4265 mm 14 ft 0 in
18 Rear Axle Clearance 560 mm 1 ft 11 in
19 Centerline Rear Dual Tire Width 2652 mm 8 ft 9 in
20 Overall Tire Width 3927 mm 12 ft 11 in
