320E LRR Hydraulic Excavator Specifi cations

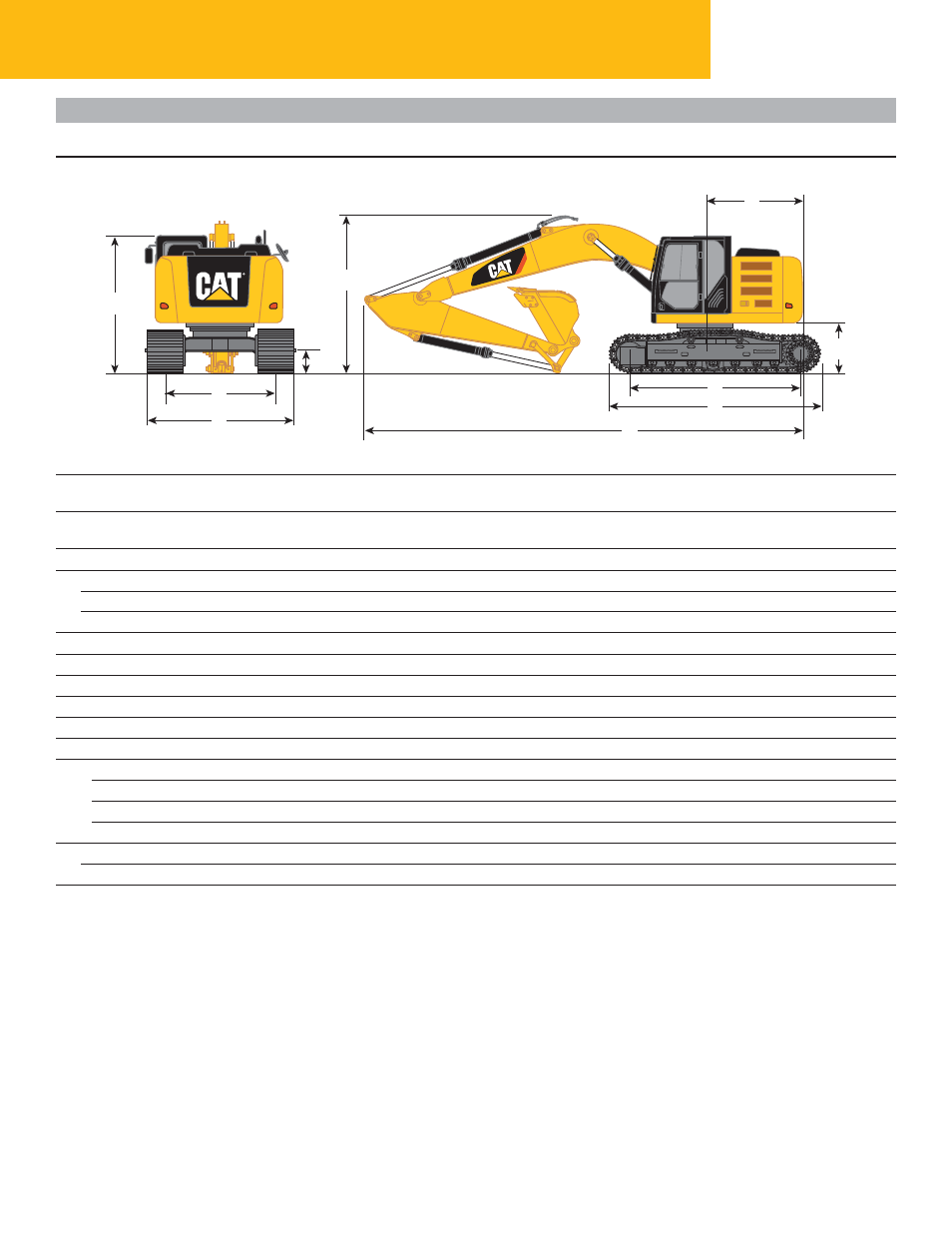

Dimensions
All dimensions are approximate.
Heavy Duty and Extreme Service Boom
5.7 m (18'8")
Stick
2.9B1
(9'6")*
mm (ft)
1 Shipping Height**
3130 (10'3")
Shipping Height with Guard Rail
3150 (10'4")
Shipping Height with Top Guard
3150 (10'4")
2 Shipping Length
8970 (29'4")
3 Tail Swing Radius
2080 (6'8")
4 Length to Center of Rollers
3650 (12'0")
5 Track Length
4460 (14'7")
6 Ground Clearance
450 (1'6")
7 Track Gauge
2380 (7'10")
8 Transport Width
600 mm (24") Shoes
2980 (9'9")
700 mm (28") Shoes
3080 (10'1")
790 mm (31") Shoes
3170 (10'5")
9 Cab Height
2960 (9'9")
Cab Height with Top Guard
3150 (10'4")
10 Counterweight Clearance***
1000 (3'3")
*Cat 1200 mm (48"), 1.19 m
3
(1.56 yd
3
) HD bucket with 1571 mm (5'2") tip radius.
**Including shoe lug height without guard rail.
***Without shoe lug height.
3
5
4
2
10
1
6
8
7
9
